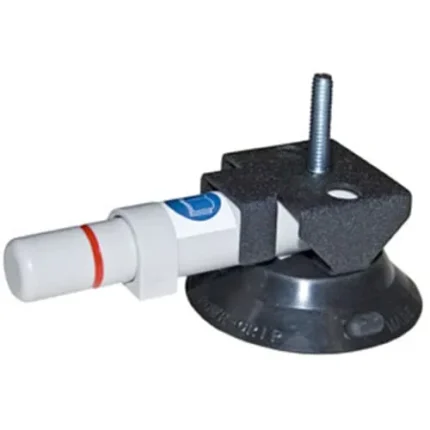

Wood’s Powr-Grip 91360 TL6AMC1420T 6″ Vacuum Cup W Black Zytel Acc Mount 1/4-20 Ins
Wood’s Powr-Grip 91360 Features
- Black aluminum accessory mount with threaded stud or tap for attaching equipment
- Compatible with Flexible Arms and other mounting accessories by RAM® Mounts
- Studs available in various lengths and threads, including metric sizes
- Provides a reliable, temporary vacuum mount, without drilling holes
- Rubber vacuum pad will not mark or damage most surfaces
- Attaches to flat or curved, smooth, nonporous surfaces
- Red-line indicator warns user of any vacuum loss
- Check valve allows repumping without loss of remaining vacuum
- Lift tabs on vacuum pad edges permit instant release
- Supplied with vacuum pad protector
Wood’s Powr-Grip 91360 Specifications
| Vacuum Pad: | Concave, 6″ [15cm] diameter (model TL6) |
| Minimum Radius for Curved Mounting Surface: | 12″ [305 mm] |
| Height to Mounting Platform (does not include stud): | 1-21/32″ [42 mm] on flat surfaces |
| 2-1/32″ [52 mm] on surfaces with maximum curvature | |
| Load Capacity: | 70 lbs [32 kg] per vacuum cup |
