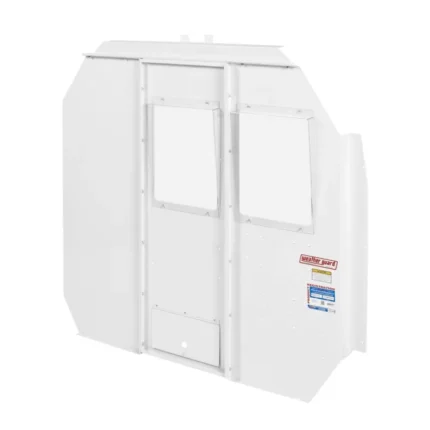

WeatherGuard 96322-3-01D Screen Bulkhead, High-Roof, Ford Transit, Deep Offset
weatherguard 96322-3-01D Description
Van bulkheads separate the driver compartment from the cargo area for maximum protection against shifting or moving cargo. Designed for Ford Transit high-roof vans, the Model 96322-3-01D deep-offset screen bulkhead and cargo van partition provides superior driver and cargo protection. The bulkhead fits closely to the van interior for secure installation. The deep offset provides full seat travel for added driver comfort. The center section of the cargo van divider can be converted to a swinging door. A large area with pre-punched mounting holes makes it easy to mount work van accessories. Compliant to FMVSS safety standards for cargo vans.
weatherguard 96322-3-01D Includes
- (1) Screen Bulkhead, High-Roof, Ford Transit, Deep Offset
weatherguard 96322-3-01D Features
- Improved impact resistance protects you from loose objects in the cargo area
- Easy installation with improved fit to cargo van interior, all mounting hardware included, and pre-punched mounting holes for WEATHER GUARD® cargo van accessories
- Heavy gauge steel is used on cargo van partition for strength and durability
- Vertical cargo van partition panel design reduces ambient noise levels
- Deeper offset of cargo van partition provides more seat travel and recline than standard bulkhead
- Exclusive 9″ x 12″ Dog Hatch™ Door allows easy loading of long materials by utilizing the floor space in front of the van bulkhead
- Compliant to FMVSS safety standards for cargo vans
- Brite White ARMOR TUF® Powder Coat finish
- Optional Hinge Kit converts van bulkhead into swinging door version
weatherguard 96322-3-01D Specifications
| Approx. Cu. Ft. Per Unit | 10.2 |
| Approx. Product Depth | 7.75″ |
| Approx. Product Height | 74.5″ |
| Approx. Product Width | 68.75″ |
| Approx. Shipping Height | 10.25″ |
| Approx. Shipping Length | 64.25″ |
| Approx. Shipping Width | 26.75″ |
| Approx. Product Weight | 95.3 lbs |
| Approx. Shipping Weight | 101.3 lbs |
| Bulk Head Type | Screen |
| Color | White |
| Install Time (hours) | 1.3 |
| Material | Steel |
| Style | Full Bulkhead Screen |
| Powder Coat Finish | Yes |
| Roof Height High | Yes |
| Vehicle Type, Full | Yes |
| Wheel Base Extended | Yes |
| Wheel Base Long | Yes |
