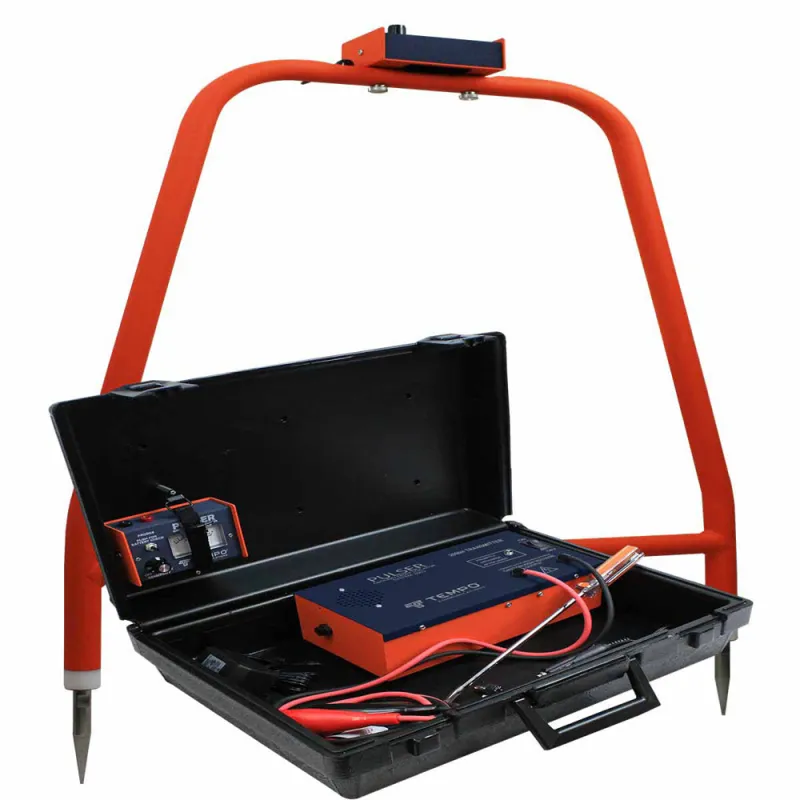

Tempo PE2003 Pulser Fault Locator
Tempo PE2003-G Includes
- (1) 12V Battery for Transmitter
- (1) 9V Battery for Receiver
- Molded Carrying Case
- Rechargeable Transmitter
- Receiver
- AF2 A-frame
- Ground stake
- 120V charger
- 12V DC (cigarette lighter) adapter.
Tempo PE2003-G Features
- Identifies the exact location of even the smallest breaks in insulation by “pulsing” a high-voltage signal that radiates into the earth at the location of the faults. With the A-frame mounted receiver, a visual analog meter points the way to the source of the voltage.
- Multiple faults on a single wire can be identified indicating the need to replace instead of repair.
- Extra-long test leads feature heavy-duty alligator clips for use on multiple cable types.
- Battery operated
Tempo PE2003-G Specifications
| Power Requirements: | Transmitter – (1) 12V rechargeable battery; Receiver – (1) 9V battery |
| Battery Life: | Transmitter – 23 hours per charge; Receiver – 200 hours |
| Transmitter Power: | 2400 VDC peak |
| Voltage Protection: | 240VAC/400VDC |
| Construction – Transmitter: | aluminum housing in polyethylene case |
| Construction – Receiver: | powder coated aluminum |
| Dimensions – Transmitter: | 17″ x 8.5″ x 6.5″ (421 mm x 215 mm x 160 mm) in case |
| Dimensions – Receiver: | 33.5″ x 21.75″ x 3.25″ (840 mm x 550 mm x 8 mm) on A-frame |
