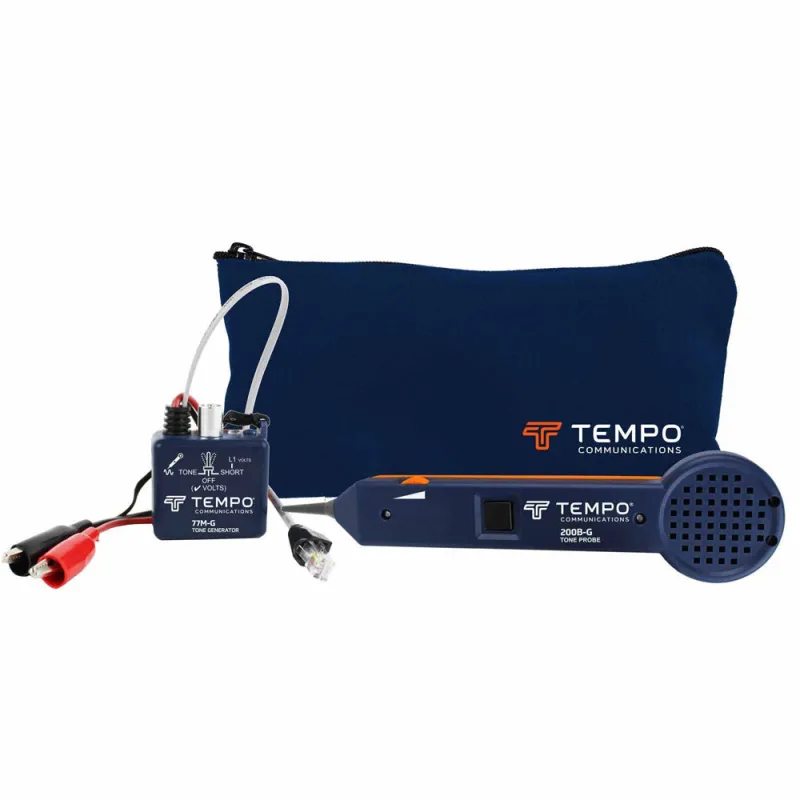

Tempo 601K-G Basic Tone Generator and Trace Probe Kit
Tempo 601K-G Features
- Adjustable Volume Control
- Replaceable Tip
- Continuity & Polarity LED
- External Warble Select
- Short Circuit LED
- Single Line Modular LED
- Alligator Connector Clips
Tempo 601K-G Specifications
| 5 Digit UPC: | 49989 |
| Gain (nominal): | 30 db |
| Input Impedance (nominal): | 100 M |
| Plastic Tip Resistance: | 300 |
| Battery: | 9 VDC (NEDA 1604, JIS 006P, or IEC 6LR61) |
| Battery Life (nominal): | >50 hours |
| Length: | 231 mm (9.0”) |
| Width: | 55 mm (2.2”) |
| Depth: | 28 mm (1.1”) |
| Weight: | 145 g (5.2 oz) |
| Operating/Storage Temperature: | 0° C to 50° C (32° F to 122° F) |
| Talk Battery (into 600?): | 4.6 VDC |
| Output Power (into 600?): | +10 dBm |
| Resistive Short Visual Indication: | <10 k |
| Output Frequency (nominal) Alternating-890/960 Hz, Warbling-Slow: | 1.3 Hz/Fast: 6 Hz |
| Voltage Protection (into 600?): | 52 VDC |
| Battery: | 9 VDC (NEDA 1604, JIS 006P, or IEC 6LF61) |
| Battery Life: | >50 hours |
| Storage Temperature: | -50° C to 75° C (-58° F to 167° F) |
| Operating Temperature: | 0° C to 50° C (32° F to 122° F) |
