Tempo 551 Advanced Underground Locator – Professional Multi-Frequency Utility Locator
Tempo 551 Description
The Tempo 551 Advanced Underground Locator is a professional-grade, IP54 water-resistant locator designed for accurate detection of wires, cables, and metallic pipes. Featuring multi-frequency digital signal, IntelliTrack noise rejection, and both peak and null locating modes, it ensures reliable performance in challenging environments. Includes a removable transmitter, ergonomic receiver, inductive clamp, and rugged carrying case for efficient field use.

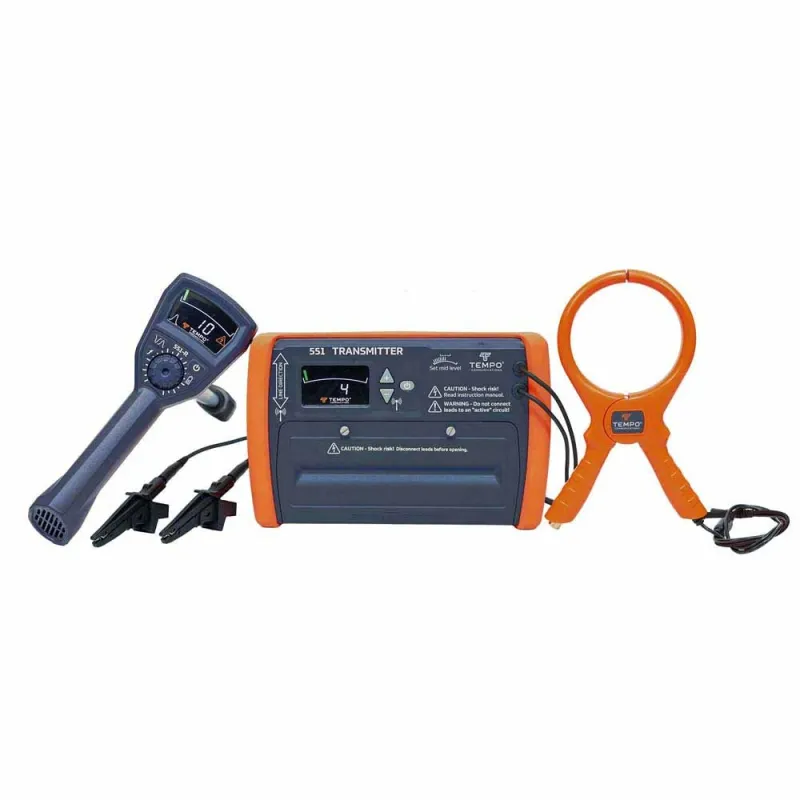

Tempo 551 Includes
- (1) 551 Advanced Underground Locator
- (1) Transmitter
- (1) Receiver
- (1) Carrying Case
- (1) Inductive Clamp
Tempo 551 Features
- Dual, simultaneous frequencies for versatile locating
- IntelliTrack digital noise rejection for signal clarity
- Peak and Null antenna modes for precise detection
- Inductive clamp for non-contact tracing
- Broadcast antenna for flexible operation
- Passive mode for detecting ambient signals
- IP54 water and dust resistance
- Ergonomic, lightweight receiver for comfortable use
- Bright LCD screen for clear readouts
- Removable transmitter for easy setup
- Rugged hard shell carrying case for protection
- Metal latches for secure closure
- 45 Degree indicator for depth measurement
Tempo 551 Specifications
| Max Depth:: | 20+ ft (6+ m) |
| Max Distance:: | Over 1 mile (1.6 km) |
| Direct Connect:: | 1.75 kHz + 33 kHz Simultaneous |
| Inductive Coupler:: | 33 kHz |
| Inductive Antenna:: | 133 kHz |
| Max Output Power:: | 3.7W rms (1.8W rms for EU model) |
| Max Output Current:: | .98A rms @ 2ohms |
| Battery Type:: | 6x D cell (Alkaline recommended) |
| Operating Frequencies:: | 1.75 kHz, 33 kHz, 133 kHz |
| Passive Mode:: | 50/60 Hz |
| Typical Battery Life:: | 35 hrs |
| Auto Shutoff:: | 1.5 hrs |
| Ingress Protection Rating:: | IP54 |
| Headset sound pressure level:: | 96±3 dBA SPL max3 (when used with Tempo HS-1) |
| Weight w/o batts:: | 1.0 lbs |
| Weight w/ batts:: | 1.2 lbs |
