Spitznas CS Unitec 5 8006 32HK 6″-32″ Hydraulic Pipe Cutting Machine
CS Unitec 5 8006 32HK Description

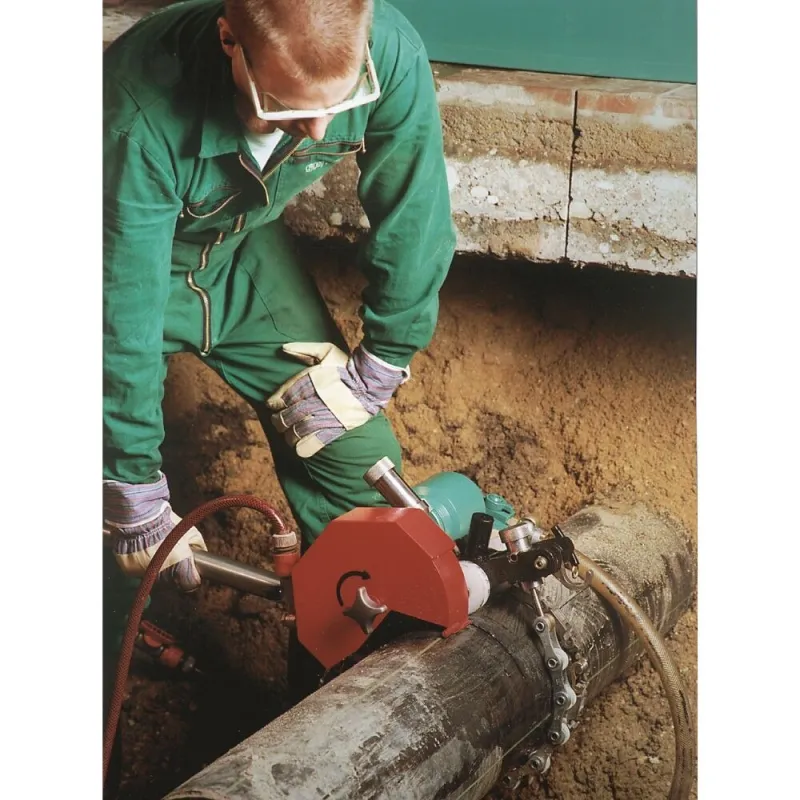

CS Unitec’s Hydraulic Pipe Cutting Machine is an ATEX Certified, operator safe pipe cutting machine. The machine is adjustabled and can cut from 6″ to 32″ diameter at 4 HP. The enclosed blade guard heightens safety for the user, and the guide chain ensures a straight cut. Pipe clamps, different blade styles, and hydraulic models also available.
CS Unitec 5 8006 32HK Includes
- (1) Drive Unit
- (1) Small Guide Carriage
- (1) Large Guide Carriage
- (1) Large Chain Tensioner
- (1) Tensioning Chain
- (1) 32″ OD Guide Chain
- (1) 7″ Dia. Carbide-Tipped Blade
- (1) 7″ Dia. Diamond Blade
- (1) Tool Kit
- (1) Steel Transport Box
- (1) 45 Degree Beveling Cutter
- (1) 60 Degree Beveling Cutter
CS Unitec 5 8006 32HK Features
- Enclosed Blade Guard
- Fast cutting of steel, iron, cement, plastic pipe, and more
- Adjustable cutting depth and diameter
- Cuts wall thickness up to 2″, diameters 6″-16″
- Guide chain for straight cut
- Carbide tipped and diamond coated blades available
- ATEX EX Zone Certified
CS Unitec 5 8006 32HK Specifications
| Motor Power: | 4 HP / 2.40 kW |
| Arbor: | 7/8″ |
| Motor Specifications: | 6-14 Gallons @ 2000 PSI |
| Speed(s): | 350/1800 RPM |
| Blade Size: | 7″ |
| Maximum Depth of Cut: | 2″ (Wall Thickness) |
| Hydraulic Connection: | 1/2″ FF (HTMA) |
| ATEX EX Zone Certification: | II2GExhIIBT6Gb |
| Motor Weight: | 28 lbs |
