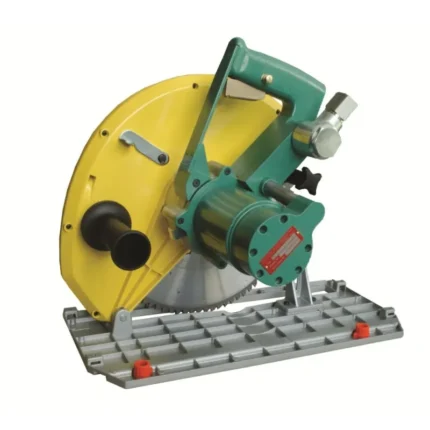

Spitznas CS Unitec 5 1115 0020 9″ Pneumatic Circular Saw
CS Unitec 5 1115 0020 Description
CS Unitec’s 9″ Pneumatic Circular Saw is and ATEX Certified saw built for cutting steel, non-ferrous metal, plastic, and other hard materials. This saw can cut steel plate up to 3/8″ thick, and can cut at both 90 (up to 3-1/4″ depth) and 45 degree (up to 2-1/8″ depth) angles. Ideal for hazardous environments, get this saw for your petrochemical, marine, demolition and fabrication needs.
CS Unitec 5 1115 0020 Includes
- (1) Saw

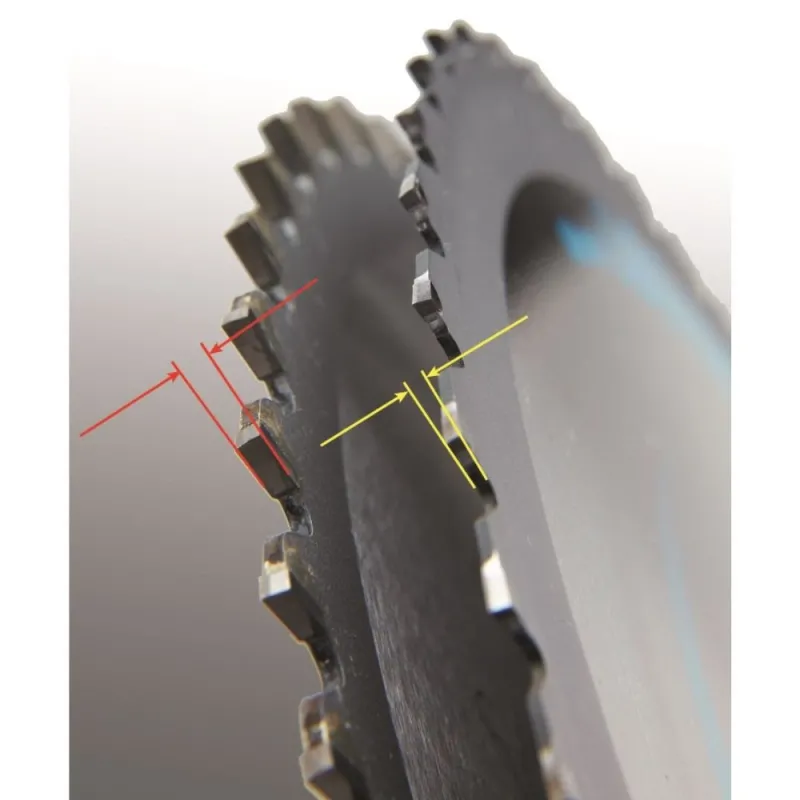

- (1) 9″ Ultra Thin LBS Blades
- (1) 9″ Standard Circular Saw Blades
CS Unitec 5 1115 0020 Features
- ATEX Certified
- Cut up to 3-1/4″ at 90 degrees and 2-1/8″ depth at 45 degrees
- For cutting steel, non-ferrous metal, plastic, grating, composite, corrugated materials and more
- For hazardous environments, petrochemical, marine, demolition applications
- Different blades available for cutting needs
CS Unitec 5 1115 0020 Specifications
| Motor Power: | 2 HP (1.5 kW) |
| Max Depth of Cut: | 3-1/4″ at 90 degrees, 2-1/8″ at 45 degrees |
| Blade Diameter: | 9″ |
| Speed (Free): | 1700 RPM |
| Motor Specifications: | 71 CFM at 90 PSI |
| Air Connection: | 1/2″ NPT |
| Vibration: | < 2.5 m/s^2 |
| Weight: | 19 lbs |
| ATEX EX Zone Certification: | II2GExhIIBT5Gb |
| Arbor size: | 3/4″, 1″, 1.2″ ( 20, 25.4″ 30 mm) |
