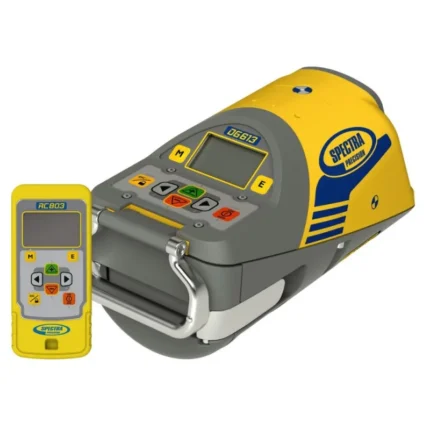

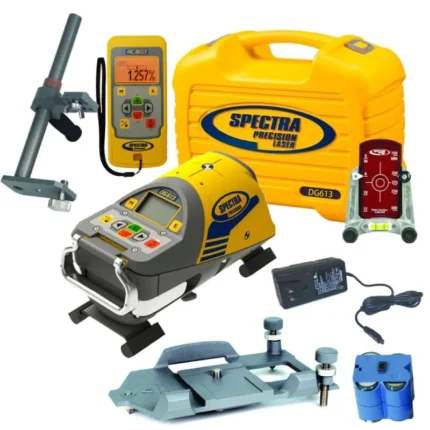

Spectra DG613 Dialgrade Pipe Laser, 8″ Trivet Plate, Remote Control, Target, Rechargeable Batteries

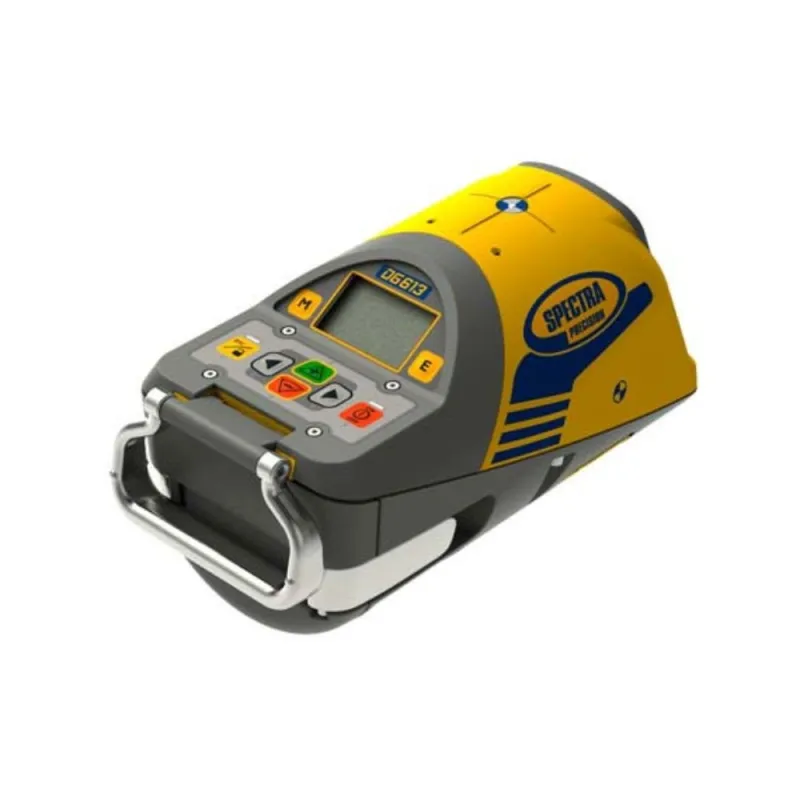

Spectra Precision Laser DG613 Description
Compact and Powerful, the DG613 red beam laser combines great performance with productivity. Advanced functions are user-friendly and allow for easy, fast set-up. Simple to use, with the new menu driven user interface.
Spectra Precision Laser DG613 Includes
- (1) DG613 Pipe Laser
Spectra Precision Laser DG613 Features
- Grade range -12% to +40%
- Ultra-fast beam movement
- Operating range up to 150 m (500 ft)
- Large intuitive graphical display on the laser and remote control
- IP68 protection (dust and waterproof)
- Flexible power options (NiMH / Alkaline)
- Advanced functions squeezing working time: Line Set/Check (first day setup), Line Scan (second day setup) and Line Alert

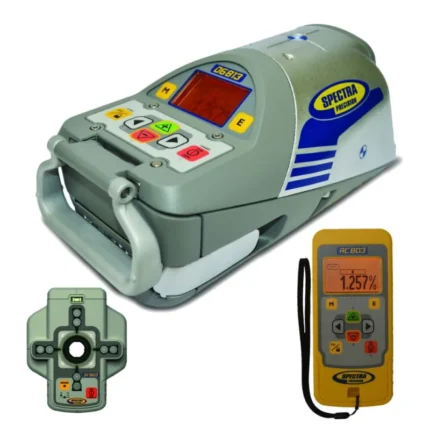

- Automatic functions for beam alignment, beam detection, and grade calculation (DG813 only)
- Compact length allows easy set-up even in tight inverts
- Self-leveling range of -12% to +40% over the entire grade range
- Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe, it levels, you work
- Bright visible beam works up to 150 m (500 ft)
- RC803 remote works via radio 130 m (430ft) “over-the-top“ set-up or infrared 150 m (500 ft) in the pipe set-up?
Spectra Precision Laser DG613 Specifications
| Accuracy | ± 1.5 mm/30 m, (1/16″ @ 100′) 10 arc seconds |
| Laser Type | Class 3A/3R, |
| Grade Range | -12% to +40% |
| Operating Range | Up to 150 m (500′) |
| Line Range | 20° ±1° |
| Leveling Indicators | LCD Indications; Beam and LED Flash |
| Power Source | 10000mAh NiMH Battery Pack |
| Power Life | 40 hours NIMH; 50 hours Alkaline |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Dust & Waterproof | Yes. IP 68 |
| Tripod Mount | 5/8 x 11 horizontal |
| Grade/Slope Display | Percent, Per Mille, Degree |
| Laser Color | Red Diode Laser |
| Laser Type/Wavelength | 600 – 680 nm |
| Length | 9.8″ |
| Diameter | 5.3″ |
| Remote Control RC803 Radio Operating Range (Over the Top) | Up to 130 m (425′) |
| IR Operating Range (front, through the pipe) | up to 150 m (500′) |
| Power Source | 2 x 1.5V AA Alkaline Batteries |
| Battery Life | 130 hours |
| Dust and Water Proof | IP66 |
