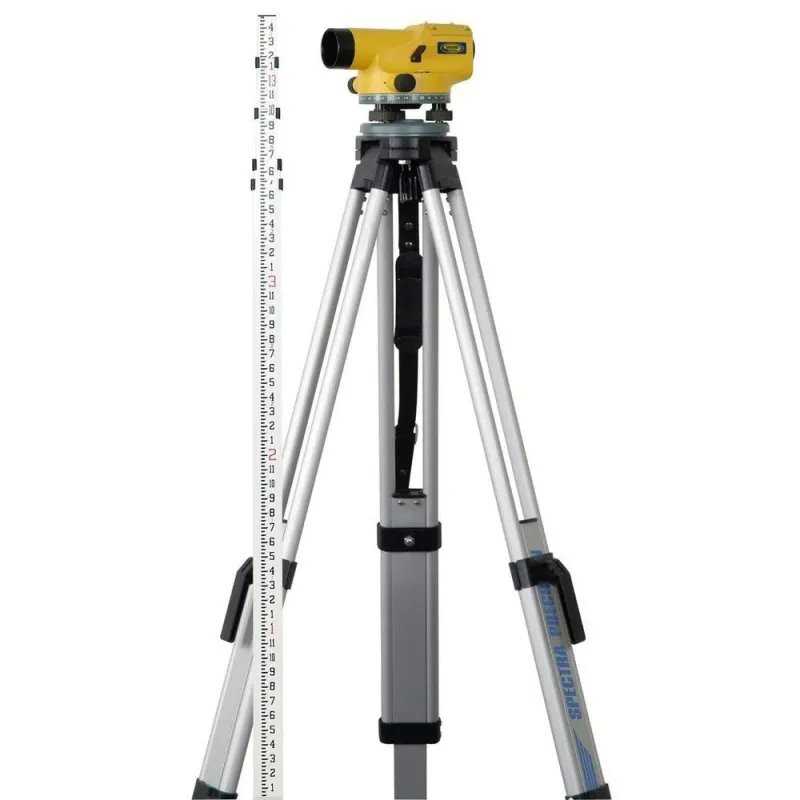

Spectra AL24M-2 24X Magnetic Dampened Automatic Level with Tripod and Rod (Inches)
Spectra Precision Laser AL24M-2 Description
The AL24M series automatic levels are designed for a variety of elevation control and alignment tasks including general building construction, cut and fill measurements, area leveling, and landscaping.
Spectra Precision Laser AL24M-2 Includes
- (1) AL24M Auto-Level
- (1) GR152 Telescopic Aluminum Rod – Inches
- (1) 5301-27-BLK-SP Tripod
- (1) Hard carrying case
Spectra Precision Laser AL24M-2 Features
- Choice of magnetic or air dampened automatic compensators
- Double-sided, continuous horizontal tangent drives
- Stadia lines for simple distance measurement
- Convenient horizontal angle measurement
- Built in bubble mirror and sighting guide
- Metal housing for increased durability
- Water resistant construction
- Includes hardshell case
Spectra Precision Laser AL24M-2 Specifications
| Magnification | 24x |
| Objective Diameter | 30 mm |
| Field of View Angle | 1° 20′ |
| Shortest Focusing Distance | 0.6 m |
| Stadia Constant | 100 |
| Additive Constant | 0 |
| Compensator Dampening | Magnetic |
| Compensator Range | ±15′ |
| Compensator Setting Accuracy | |
| Double Run Leveling per 1 km | 2 mm |
| Circular Vial Accuracy | 8/2 mm |
| Horizontal Circle | 1° |
| Base Plate | 5/8 x 11 |
| Color | Yellow |
| Tripod | Yes |
| Rod | 15′, Inches |
