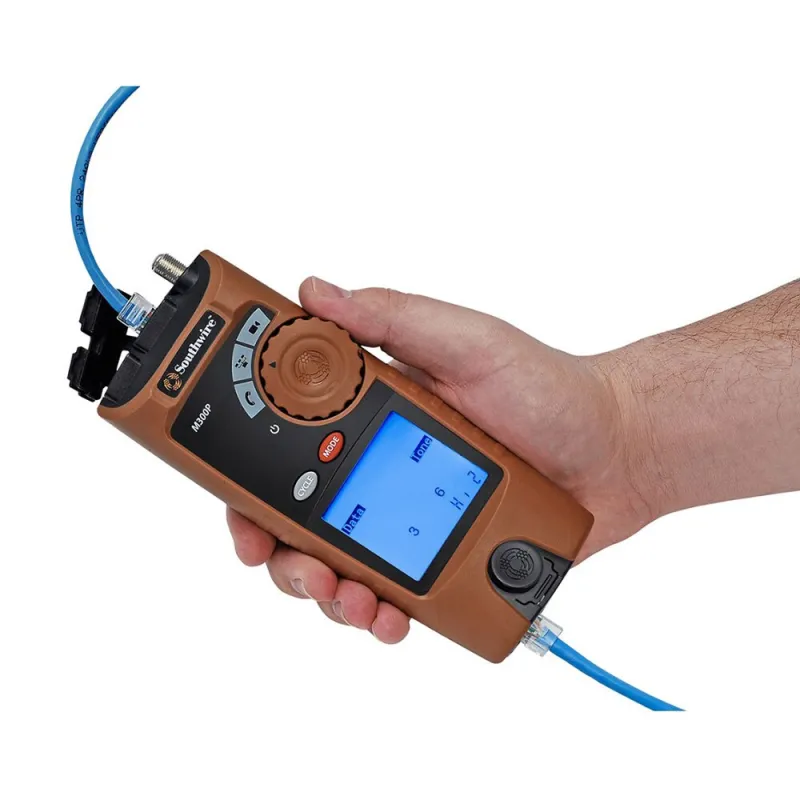

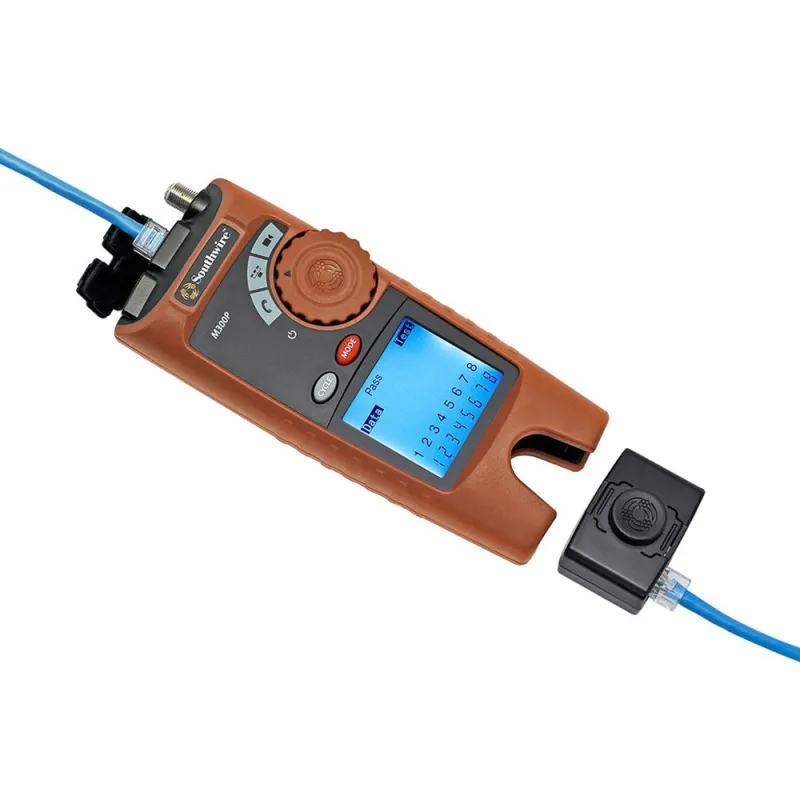

Southwire M300P M300P Professional VDV Cable Mapper
INCLUDES:
• (1) Professional VDV cable mapper
• (5) RJ45
• (5) Coax remotes
• (9V) Battery
FEATURES:
• Easy-to-Read LCD display with backlight
• Port covers protect RJ45 and RJ11 ports from dust and debris
• Built in Tone Generator for cable tracing (separate Amplifier Probe required)
• Maps multiple cable runs with included RJ45 & Coax “F” ID remotes (5 of each are included)
• Test patch cables or installed cables
• Remote ID Kits Available Separately:
— M310 Replacement Kit of ID Remotes (5 RJ45 and 5 Coax “F”, Remote Numbers 1 – 5)
— M310-F Expansion Kit of 11 “F” Coax ID Remotes (Remote Numbers 6 – 16)
— M310-RJ Expansion Kit of 11 RJ45 ID Remotes (Remote Numbers 6 – 16)
SPECIFICATIONS:
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Humidity: 10% to 90%, non-condensing
• Maximum Voltage between any two pins without damage: 60V DC or 55V AC
• Batteries: One 9V Battery
• Cable Types: Shielded or Unshielded: Cat 7, Cat 7a, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 4, Cat 3, Coax
• Maximum Coax Cable Length: 1000 feet (305m)
• Minimum Cable Length for Split Pair Detection: 1.6 feet (0.5m)
• Maximum Coax Cable Resistance: 100 ohms maximum DC
• Dimensions: 7.13” x 2.86” x 1.61” (18.1cm x 7.3cm x 4.1 cm)
• Weight: 0.78lb (353g)
Professional VDV Cable Mapper M300P
Quickly tests voice, data and video cabling for common wiring faults including split pairs. Rugged double molded housing with silicone port covers and an easy to read backlit LCD screen make the M300P rugged and easy to use.
