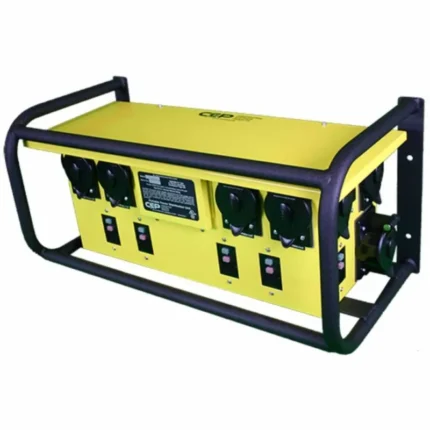

Southwire 8808TLFX 50A 125/250V Wall Mount TL Barricade Box w/ Frame, 8 Outlet
CEP 8808TLFX Description
Engineered using the latest in GFCI Technology, and providing the user with
the highest level of Electrical Safety, Southwire’s newest line of wall-mounted
Barricade Boxes is an innovation for the construction industry. With OSHA
mandating that cords, cables, and hoses be removed from the floor, the
Barricade Box gives the user a perfect solution while keeping the outdoor rating
of the product. The box is UL Listed for Outdoor Use and required to mount off
the floor away from water, dust, mud and other harmful environmental elements,
with both 6-circuit and 8-circuit versions available, with or without rugged frame.
CEP 8808TLFX Includes
- (1) Power Distribution Box
CEP 8808TLFX Features
- 16 ga. powder coated and painted steel
- Heavy–duty impact and flame resistance
- GFCI Protection – Open Neutral, Reverse Phasing & 240V Shut-Off technology with indicator light.
- Available in 6 outlet and 8 outlet. Each outlet wired onto its own circuit.
- Meets the current OSHA standards for Electrical Safety and can help meet their latest standard to reduce tripping hazards.
CEP 8808TLFX Specifications
| Amperage | 50A |
| Voltage | 125/250V |
| GFCI | Yes |
| Receptacles | (8) 20A 125V (L5-20R) |
| Input | 50A 125/250V (CS6375) |
| Output | 50A 125.250V (CS6369) |
| Structure | Frame |
