Simpson Strong-Tie WSWH-RTEL18 Strong-Wall (18″) Extended-Leg Anchor Bolt Template for High-Strength Wood Shearwall
Simpson Strong-Tie WSWH-RTEL18 Description
The Strong-Wall Extended-Leg Anchor Bolt Template is designed for precise placement of anchor bolts in 18″ high-strength wood shearwalls, ensuring reliable and efficient installation.
Simpson Strong-Tie WSWH-RTEL18 Includes
- (1) Strong-Wall Extended-Leg Anchor Bolt Template
Simpson Strong-Tie WSWH-RTEL18 Features

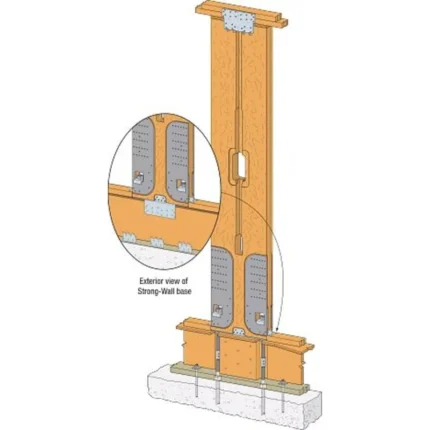

- Accurately locates anchor bolts for Strong-Wall high-strength wood shearwalls
- Standard templates are reversible and can be used for interior or exterior applications
- Variety of configuration options to accommodate common concrete foundation types
Simpson Strong-Tie WSWH-RTEL18 Applications

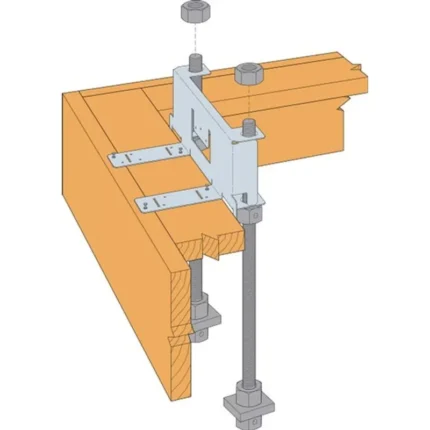

- RTEL: Extended leg model used for installations where WSWH is flush with the inside face of a 2×6 sill plate
- RTELPF: Extended leg model used for panel form installations where WSWH is flush with the inside face of a 2×6 sill plate when concrete is not poured to the top of the form; typically to set anchors into a stemwall or extend down to the footing
Simpson Strong-Tie WSWH-RTEL18 Installation Overview
- Installation of Strong-Wall high-strength wood shearwall anchor bolt templates varies by application
Simpson Strong-Tie WSWH-RTEL18 Specifications
| Material | 14 gauge |
| Finish | G90 galvanized |
| Packaging Quantity | 1 |
NOTE: Templates are recommended and are required in some jurisdictions. Foundation design by the designer.
