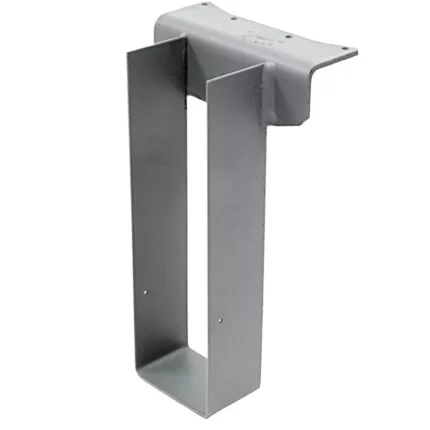

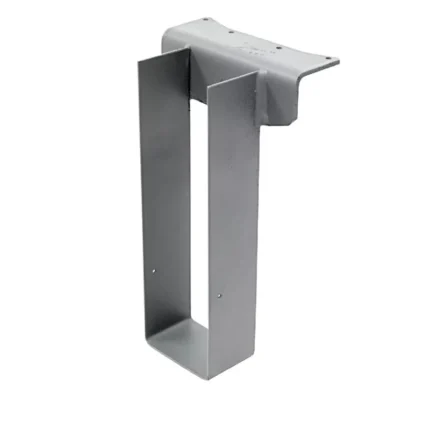

Simpson Strong-Tie WP414 (4″ x 14″) Welded Top-Flange Joist Hanger
Simpson Strong-Tie WP414 Description
The Simpson WP414 Welded Top-Flange Joist Hanger is designed for robust support in wood-to-wood and wood-to-steel connections, offering versatility and durability for various construction applications.
Simpson Strong-Tie WP414 Includes
- (1) Welded Top-Flange Joist Hanger
Simpson Strong-Tie WP414 Features
- Highly modifiable with alteration options including opened/closed top flange and offset top flange
- Top flange may be sloped to a maximum of 35° to accommodate a sloped header
- Features a solid one-piece top flange that provides extra stability in panelized roof applications
- Manufactured from 12-gauge steel for enhanced strength and durability
- Simpson Strong-Tie gray paint provides protection against environmental factors
Simpson Strong-Tie WP414 Applications

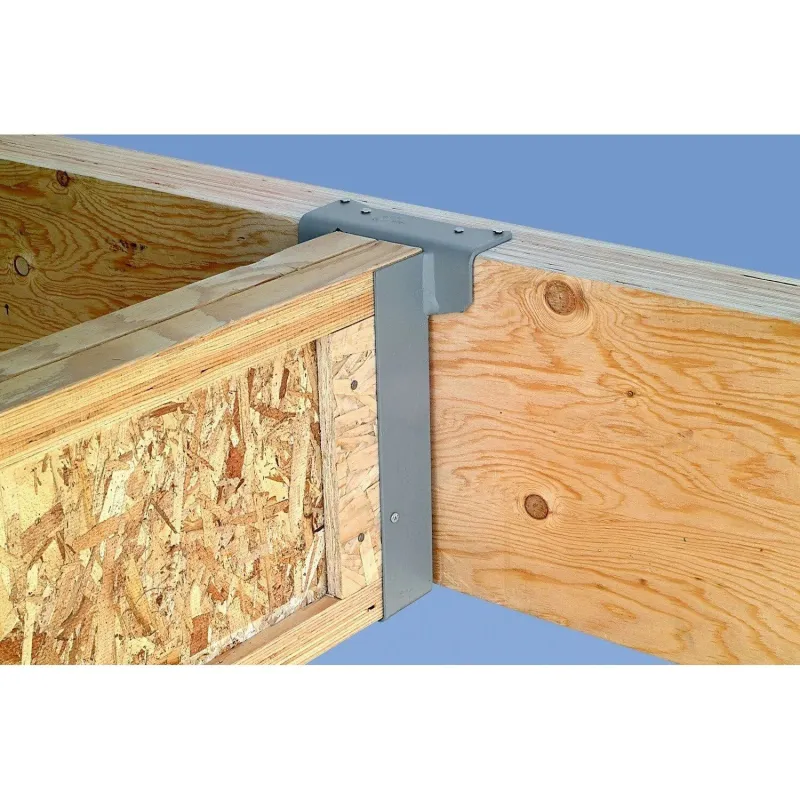

- Residential and Commercial Projects: Ideal for floor, ceiling, and roof framing in various structural applications.

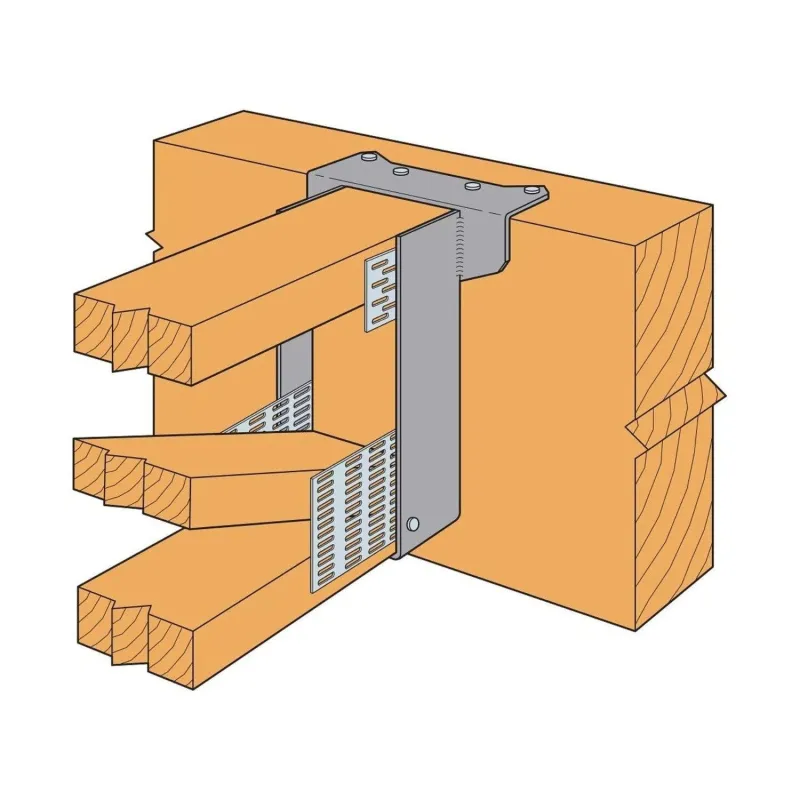

- Joist-to-Purlin Connections: Ensures a secure, load-bearing connection between wood joists and steel or wood beams.
- Wood-to-Steel Construction: Suitable for installations requiring welded steel headers.
Simpson Strong-Tie WP414 Installation Overview
- Use all specified fasteners.
- For wood-to-steel applications, weld the hanger to the steel header using a minimum 1 1/2″-long fillet weld on each side of the top flange, ensuring the weld size matches the hanger material thickness.
- Ensure joist dimensions align with hanger specifications for a secure and stable connection.
Simpson Strong-Tie WP414 Specifications
| Material | Carbon Steel |
| Finish | Gray Paint |
| Joist size | 4″ X 14″ |
| Thickness | 12 Gauge |
| Weight | 3.7 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
