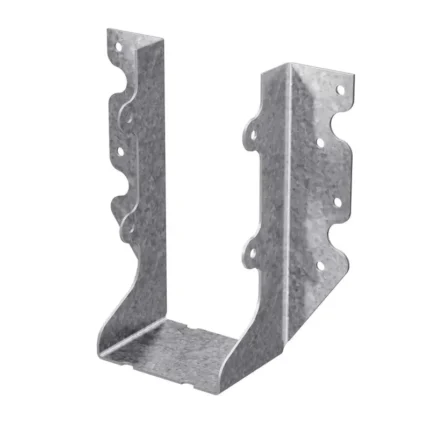

Simpson Strong-Tie U46 (4-7/8″) 16Ga U Face-Mount Joist Hanger – G90 Galvanized
Simpson Strong-Tie U46 Description
The Simpson Strong-Tie U46 Face-Mount Joist Hanger is designed for secure and stable wood framing connections, offering corrosion resistance and optimized load distribution.
Simpson Strong-Tie U46 Includes
- (1) U46 Face-Mount Joist Hanger
Simpson Strong-Tie U46 Features
- Versatile Compatibility: Designed for both solid sawn lumber and engineered wood joists.
- Face-Mount Design: Offers easy installation with a flush, secure connection.
- Optimized Load Distribution: Provides full bearing support, preventing twisting or shifting.
- Galvanized Steel Construction: Enhances corrosion resistance for durability.
- Precision Engineering: Manufactured for tight tolerances and a snug fit.
Simpson Strong-Tie U46 Applications
- Deck Framing: Secures joists to beams for a stable deck structure.
- Floor Joists: Supports floor framing systems in buildings.
- Roof Framing: Provides strong connections for rafters and ceiling joists.
Simpson Strong-Tie U46 Installation Overview
- Use nails, screws, or Strong-Drive SDS Heavy-Duty Connector screws as specified.
- Ensure the joist is fully seated in the hanger for maximum support.
- Install fasteners into all nail holes for optimal strength.
- Verify the hanger meets the required load capacity for the application.
Simpson Strong-Tie U46 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header – (8) 0.162″ x 3-1/2″ Nails, Joist – (4) 0.148″ x 3″ Nails |
| For Treated Lumber | No |
| Height | 4-7/8″ |
| Joist size | 4″ X 6″ |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 3-9/16″ |
