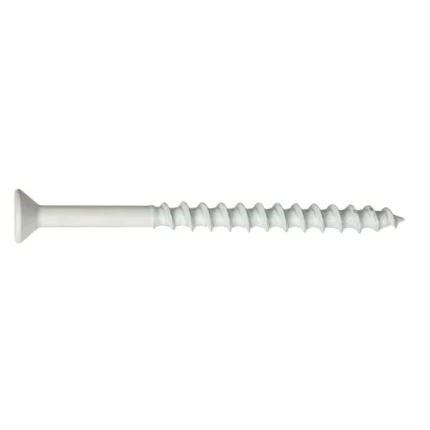

Simpson Strong-Tie TNTW18214TFC8 Titen Turbo(3/16″ x 2-1/4″) T25 Flat-Head Concrete and Masonry Screw, White (8 Pack)
Simpson Strong-Tie TNTW18214TFC8 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener featuring an innovative torque reduction channel for smooth driving and superior holding power.
Simpson Strong-Tie TNTW18214TFC8 Includes
- (8) Flat Head Titen Turbo Screw Anchor White Zinc
Simpson Strong-Tie TNTW18214TFC8 Features
- Patented Torque Reduction Channel for reduced binding and snapping
- Available in multiple coated versions including White Zinc
- Flat head design for flush profile
- Superior tension load performance
- Designed for installation with an impact driver or cordless drill
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNTW18214TFC8 Applications
- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Electrical boxes and conduit
- Switch boxes and light fixtures
- Windows and thresholds
- Basement furring strips
- Shelf mounting to concrete/CMU
- Handrails
Simpson Strong-Tie TNTW18214TFC8 Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Position fixture, insert screw, and tighten using a drill and Titen Turbo screw installation tool fitted with a hex socket or 6-lobe bit socket.
Simpson Strong-Tie TNTW18214TFC8 Specifications
| Diameter | 3/16″ |
| Finish | White Zinc |
| Length | 2-1/4″ |
| Material | Carbon Steel |
| Drill bit size | 5/32″ |
| Drive type | T25 Star Drive |

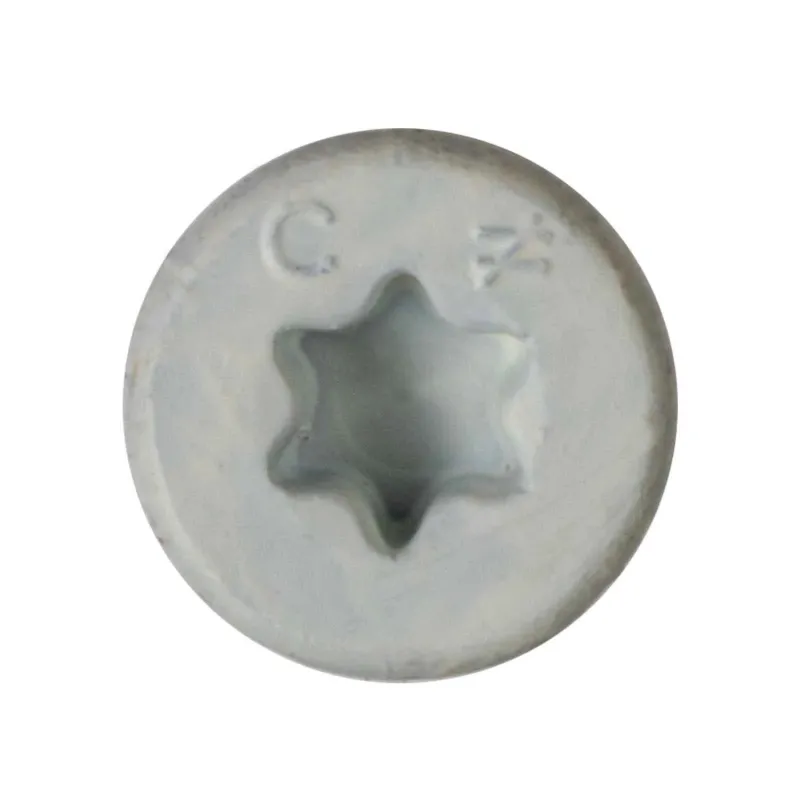

| Head type | Flat Head |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 8 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
