Simpson Strong-Tie TNT18114HC8 Titen Turbo (3/16″ x 1-1/4″) Hex-Head Concrete and Masonry Screw, Blue (8 Pack)
Simpson Strong-Tie TNT18114HC8 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in wood-to-concrete and wood-to-wood anchoring applications.
Simpson Strong-Tie TNT18114HC8 Includes
- (8) Hex-Head Concrete and Masonry Screw
Simpson Strong-Tie TNT18114HC8 Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions
- Hex head design for secure fastening
- Superior tension load performance

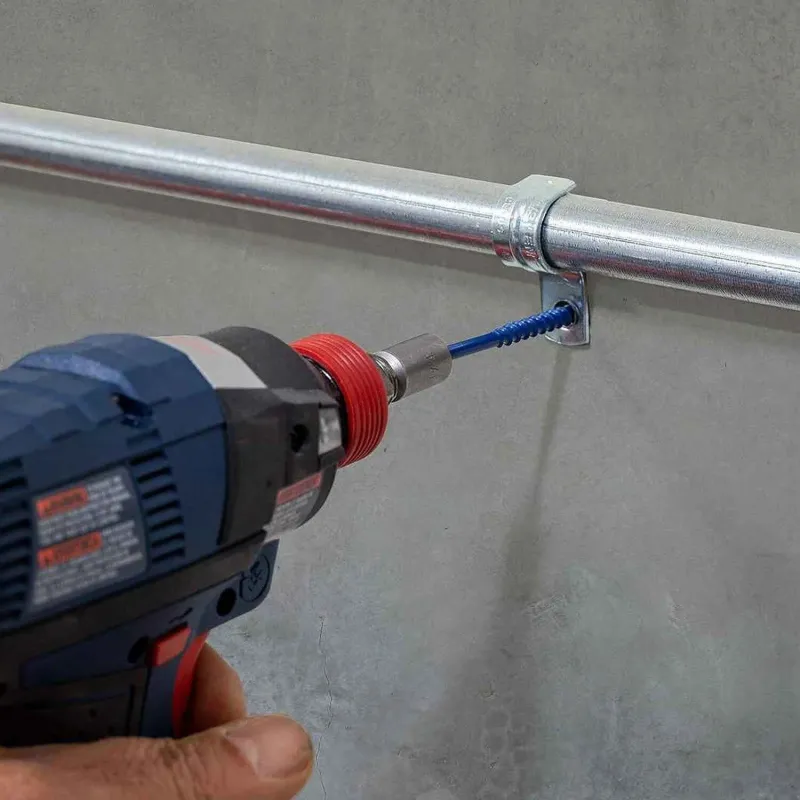

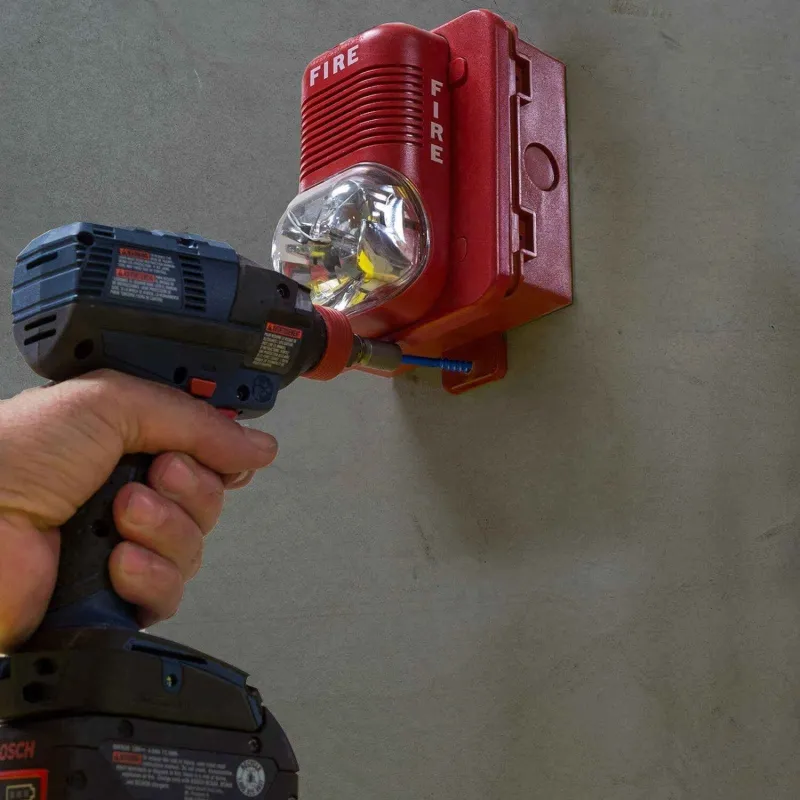

- Designed for use with impact drivers or cordless drills
Simpson Strong-Tie TNT18114HC8 Applications
- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Masonry applications
Simpson Strong-Tie TNT18114HC8 Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo installation tool.
Simpson Strong-Tie TNT18114HC8 Specifications
| Material | Carbon Steel |
| Finish | Blue Zinc |
| Diameter | 3/16″ |
| Length | 1-1/4″ |
| Drill Bit Size | 5/32″ |
| Drive Type | 1/4″ Hex |
| Head Type | Hex Head |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
