Simpson Strong-Tie THDB62500H Titen HD (5/8″ x 5″) Heavy-Duty Screw Anchor – Zinc Plated (10 Pack)
Simpson THDB62500H Description

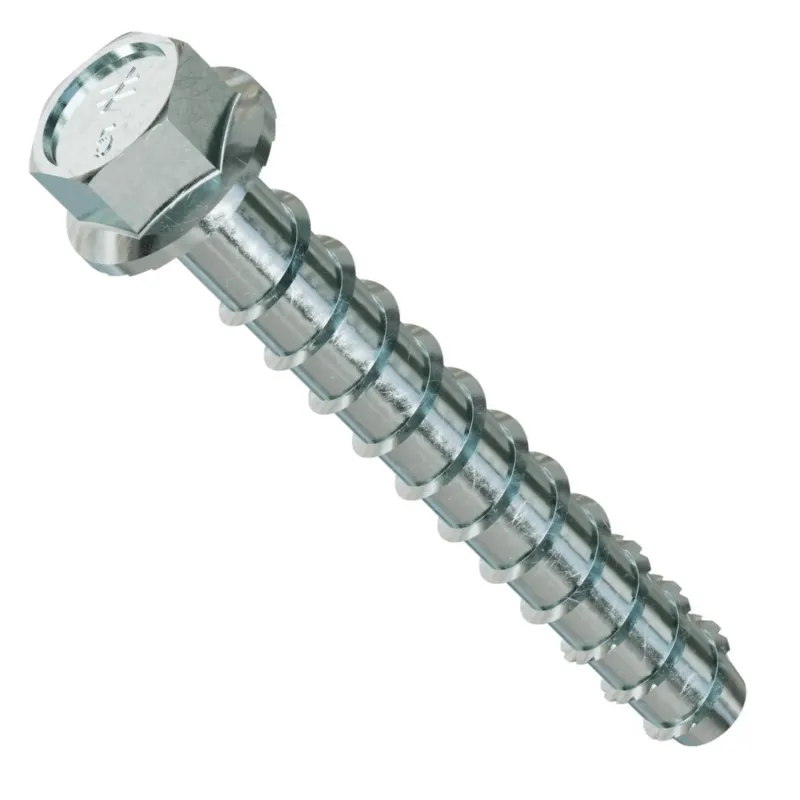

The Titen HD Screw Anchor Zinc Plated is a high-strength anchor designed for quick and easy installation in cracked and uncracked concrete applications.
Simpson THDB62500H Includes
- (10) Titen HD Screw Anchor Zinc Plated 5/8 in. x 5 in.
Simpson THDB62500H Features
- Tested in accordance with ACI 355.2, AC193 and AC106
- Qualified for static, wind and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
- No special drill bit required
- Hex-washer head requires no separate washer
- Removable, ideal for temporary anchoring
- Use in dry interior environments only
Simpson THDB62500H Applications
- Concrete anchoring in dry interior environments
- Temporary anchoring for formwork and bracing
- Mechanical, electrical, and plumbing applications
Simpson THDB62500H Installation Overview
- Drill a hole in the base material using a drill bit matching the anchor diameter.
- Clean the hole with compressed air.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THDB62500H Specifications
| Diameter | 5/8 in. |
| Length | 5 in. |
| Finish | Zinc Plated |
| Material | Carbon Steel |
| Drill Bit Size | 5/8 in. |
| Drive Type | 15/16 in. Hex |
| Fixture Hole Size | 3/4 in. – 13/16 in. |
| Head Type | Hex Head |
| Quantity | 10 |
NOTE: Ensure the hole is drilled to the specified depth and cleaned properly before installation.
