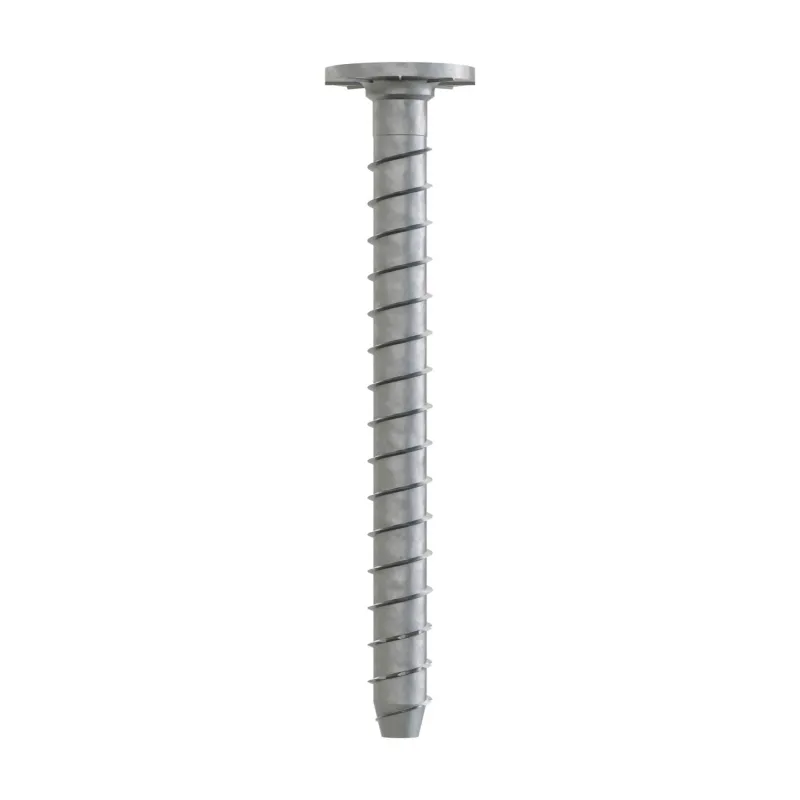

Simpson Strong-Tie THDB62100WHMG Titen HD (5/8″ x 10″) Washer-Head Heavy-Duty Screw Anchor Mechanically Galvanized (10 Pack)
Simpson Strong-Tie THDB62100WHMG Description
Titen HD screw anchors are high strength anchors designed for quick and easy installation in cracked and uncracked concrete applications.
Simpson Strong-Tie THDB62100WHMG Includes
- (10) 5/8 in. x 10 in. Screw Anchor
- (1) 1/2-in. socket adapter
- (2) T-drive bits
Simpson Strong-Tie THDB62100WHMG Features
- Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete

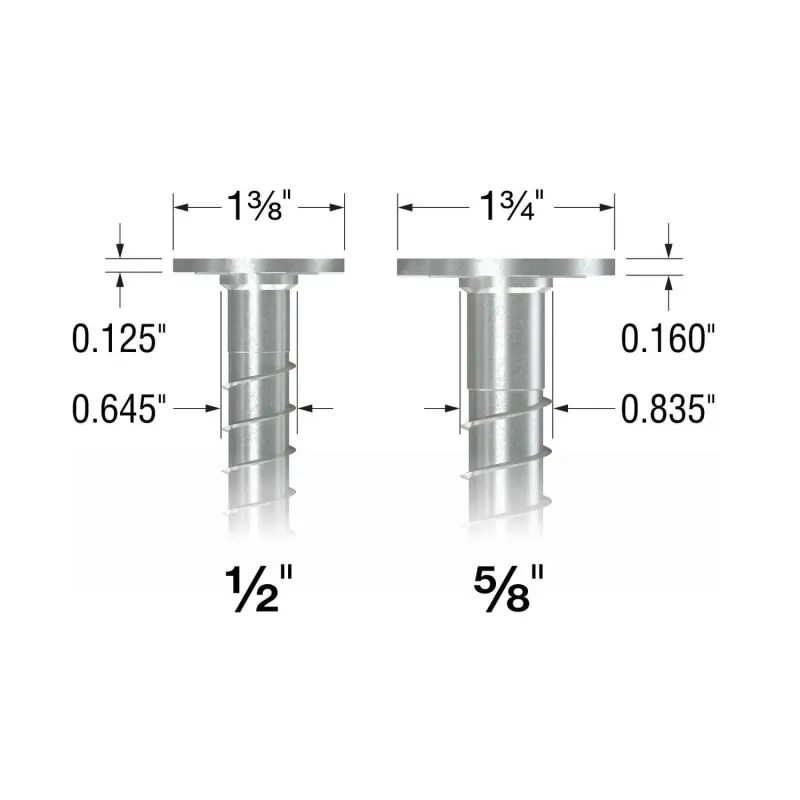

- Available in 1/2″ and 5/8″ diameters
- Standard fractional sizes — the hole size matches the anchor size
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- Removable — ideal for temporary anchoring or applications where fixtures may need to be moved

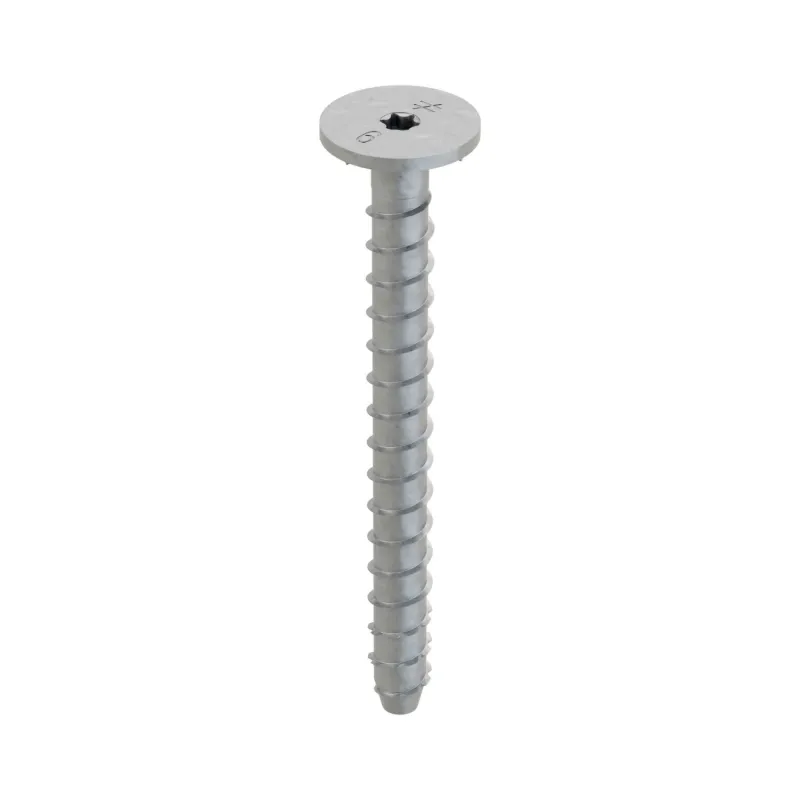

- Washer head allows screw anchor applications incompatible with a hex head
- Mechanically galvanized Titen HD is code listed for exterior applications
Simpson Strong-Tie THDB62100WHMG Applications
- Concrete anchoring in cracked and uncracked conditions
- Temporary anchoring for fixtures that may need to be moved
- Exterior applications requiring mechanically galvanized anchors
Simpson Strong-Tie THDB62100WHMG Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the washer head contacts the fixture.
Simpson Strong-Tie THDB62100WHMG Specifications
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Length | 10″ |
| Drill Bit Size | 5/8″ |

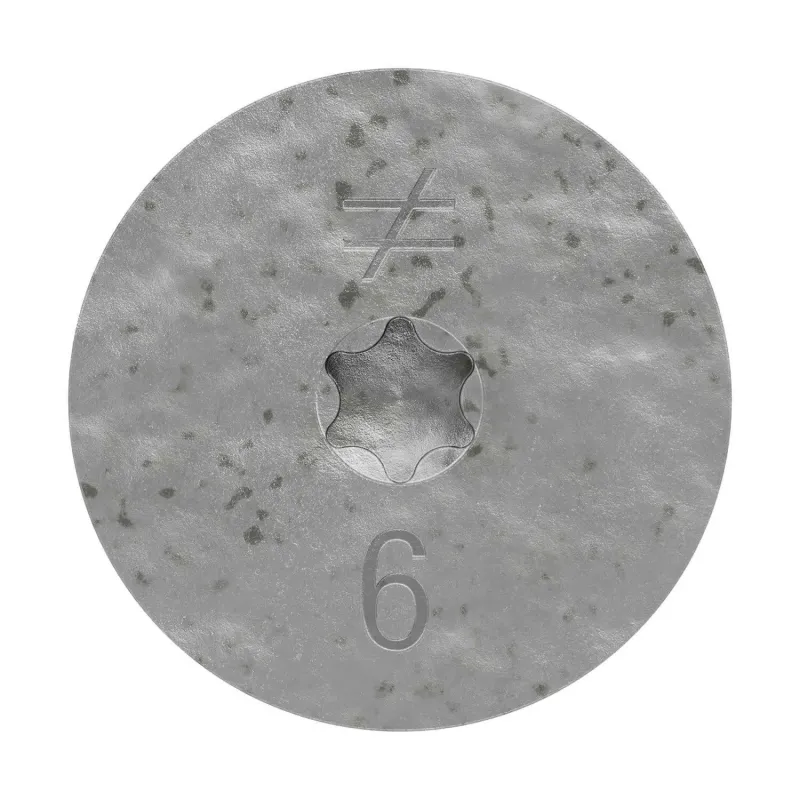

| Drive Type | T60 Star Drive |
| Fixture Hole Size | 15/16″ to 1″ |
| Quantity | 10 |
NOTE: For permanent applications, use a Titen HD one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
