Simpson Strong-Tie THD50800HMGF1 Titen HD (1/2″ x 8″) Mechanically Galvanized Heavy-Duty Screw Anchor
Simpson Strong-Tie THD50800HMGF1 Description
The Titen HD 1/2″ x 8″ Mechanically Galvanized Heavy-Duty Screw Anchor by Simpson Strong-Tie is designed for anchoring into concrete or masonry, offering exceptional holding power and corrosion resistance.
Simpson Strong-Tie THD50800HMGF1 Includes
- (1) Titen HD 1/2″ x 8″ Mechanically Galvanized Heavy-Duty Screw Anchor
Simpson Strong-Tie THD50800HMGF1 Features
- Head-stamped for easy identification

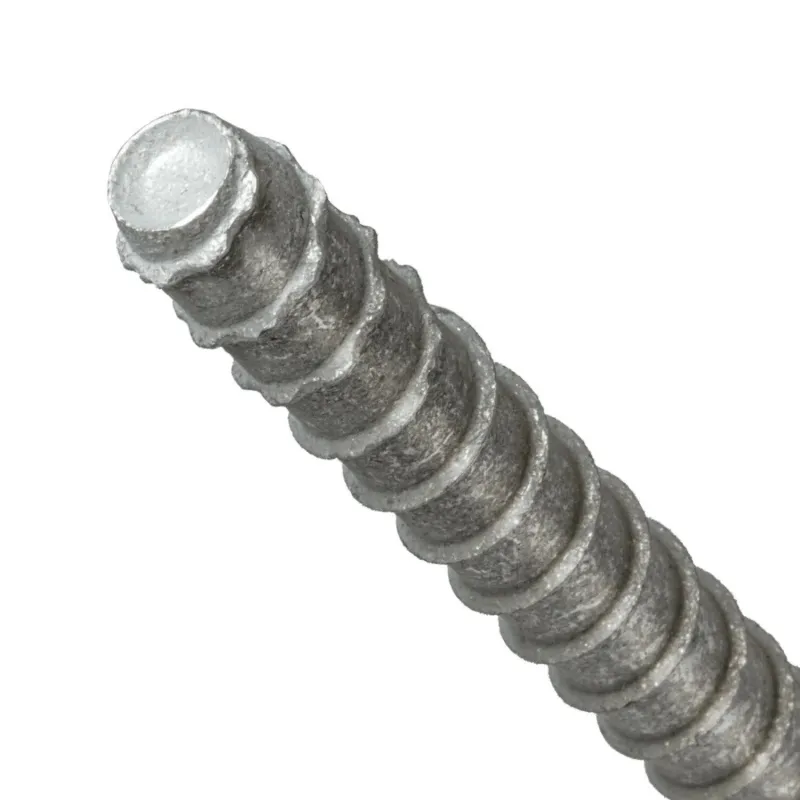

- Serrated teeth on the tip facilitates cutting and reduces installation torque
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes, hole size equals anchor size
- Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
- Hex washer head requires no separate washer, unless required by code
- Fully and easily removable
- Code listed for exterior applications
Simpson Strong-Tie THD50800HMGF1 Applications
- Sill plates on foundations
- Ledger board installs for decks or balconies

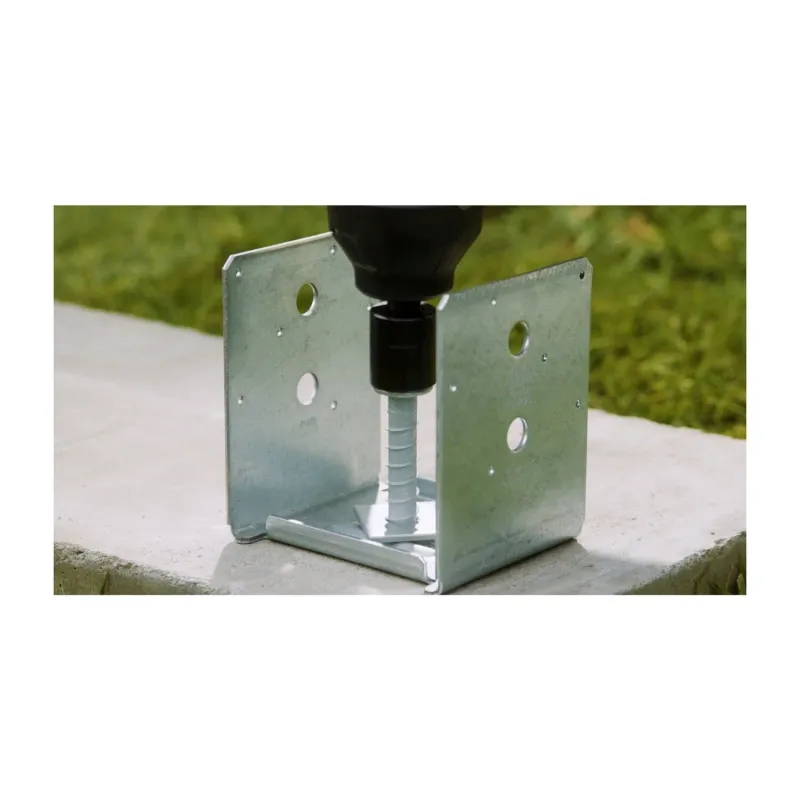

- Anchoring post bases—interior or exterior
- Seating, holdowns, and hardware that need real anchoring strength
- Wood or metal connections into concrete or block
Simpson Strong-Tie THD50800HMGF1 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Clean out any dust or debris from the hole.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson Strong-Tie THD50800HMGF1 Specifications
| Diameter | 1/2″ |
| Length | 8″ |
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Drill bit size | 1/2″ |
| Fixture hole size | 5/8″ – 11/16″ |
| Thread length | 5-1/2″ |
| Wrench size | 3/4″ |
