Simpson Strong-Tie THD50300HF1 Titen HD(1/2″ x 3″) Heavy-Duty Screw Anchor for Concrete and Masonry
Simpson Strong-Tie THD50300HF1 Description
The Simpson Strong-Tie THD50300HF1 is a heavy-duty screw anchor designed for concrete and masonry applications. It features a zinc-plated finish for durability in dry, interior environments.
Simpson Strong-Tie THD50300HF1 Includes
- (1) 1/2 in. x 3 in. Screw Anchor
Simpson Strong-Tie THD50300HF1 Features
- Tested in accordance with ACI 355.2, AC193, and AC106
- Qualified for static, wind, and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- No special drill bit required
- Hex-washer head provides a clean installed appearance
- Removable for temporary anchoring
Simpson Strong-Tie THD50300HF1 Applications
- Concrete and masonry anchoring
- Temporary anchoring for formwork or bracing
- Interior dry environments

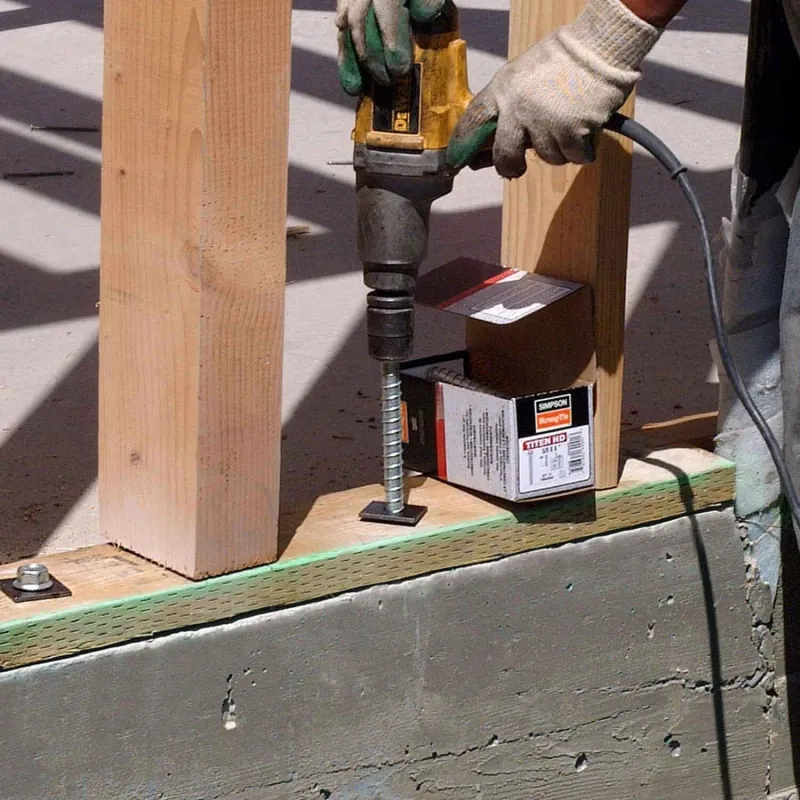

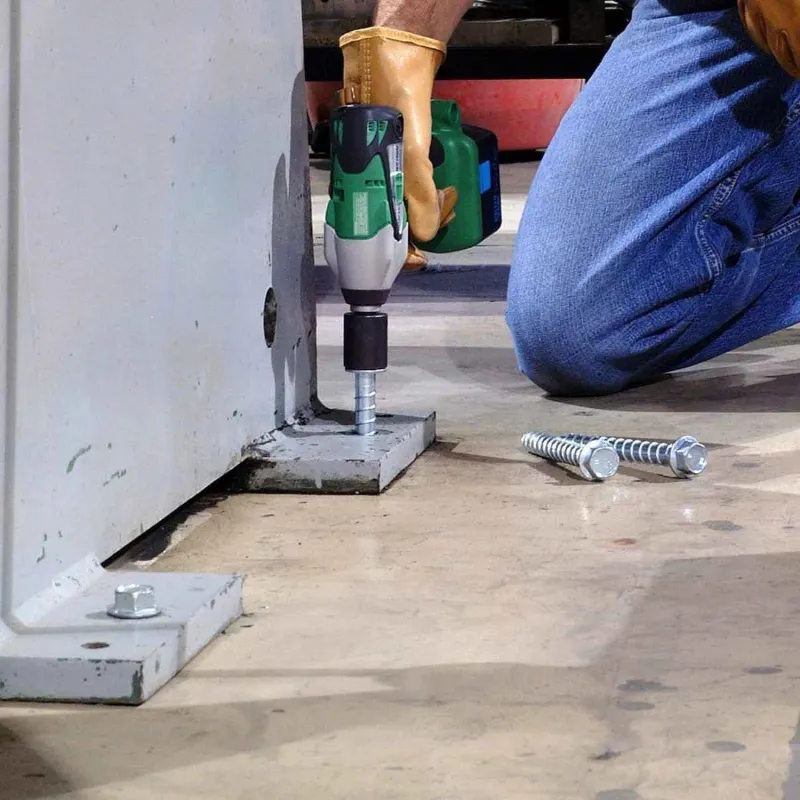

Simpson Strong-Tie THD50300HF1 Installation Overview
- Drill a hole in the base material using a 1/2 in. drill bit.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson Strong-Tie THD50300HF1 Specifications
| Diameter | 1/2 in. |
| Length | 3 in. |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Drill Bit Size | 1/2 in. |
| Drive Type | 3/4 in. Hex |
| Fixture Hole Size | 5/8 in. – 11/16 in. |
| Head Type | Hex Head |
NOTE: Use the correct drill bit size and follow installation guidelines to ensure optimal performance.
