Simpson Strong-Tie THD37600H Titen HD (3/8″ x 6″) Heavy-Duty Screw Anchor – Zinc Plated (50 Pack)

Simpson Strong-Tie THD37600H Features

• Tested in accordance with ACI 355.2, AC193 and AC106
• Qualified for static, wind and seismic loading conditions
• Thread design undercuts to efficiently transfer the load to the base material
• Standard fractional sizes
• Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
• No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
• Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
• Removable — ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved
• Use in dry interior environments only

Simpson Strong-Tie THD37600H Applications

• Concrete anchoring in dry, interior environments
• Temporary anchoring for formwork and bracing
• Mechanical, electrical, and plumbing applications

Simpson Strong-Tie THD37600H Installation Overview

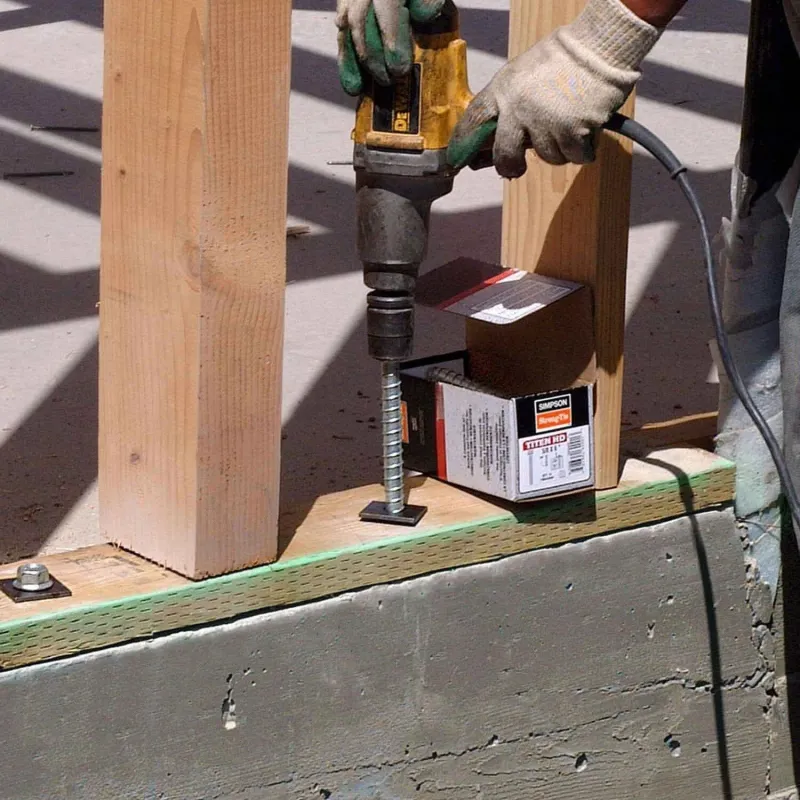

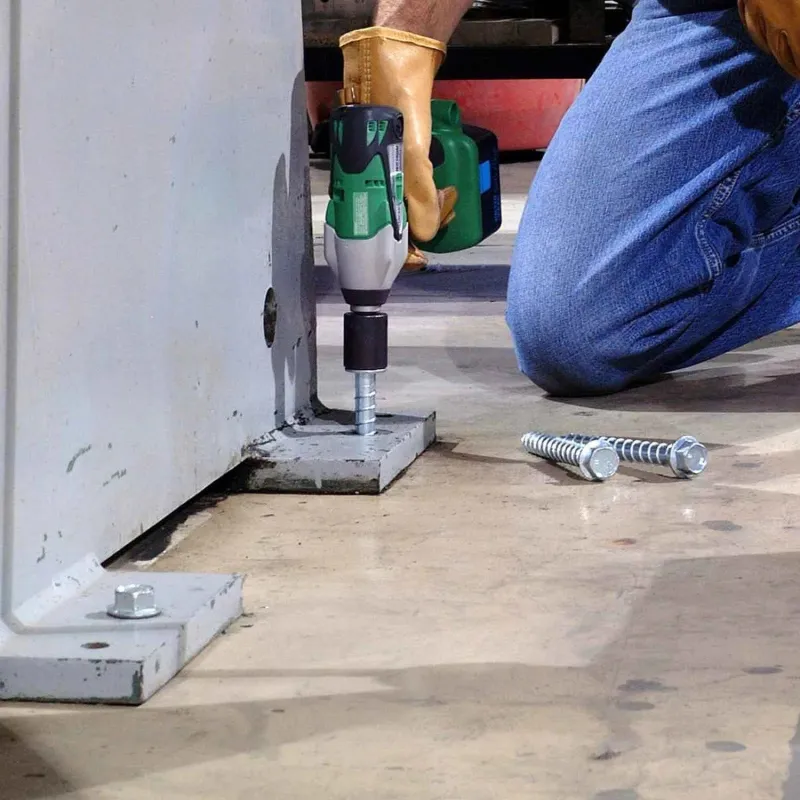

1. Drill a hole in the base material using a carbide drill bit matching the anchor’s diameter.
2. Clean the hole using compressed air to remove dust.
3. Insert the anchor through the fixture and into the hole.
4. Tighten the anchor until the hex-washer head contacts the fixture.
