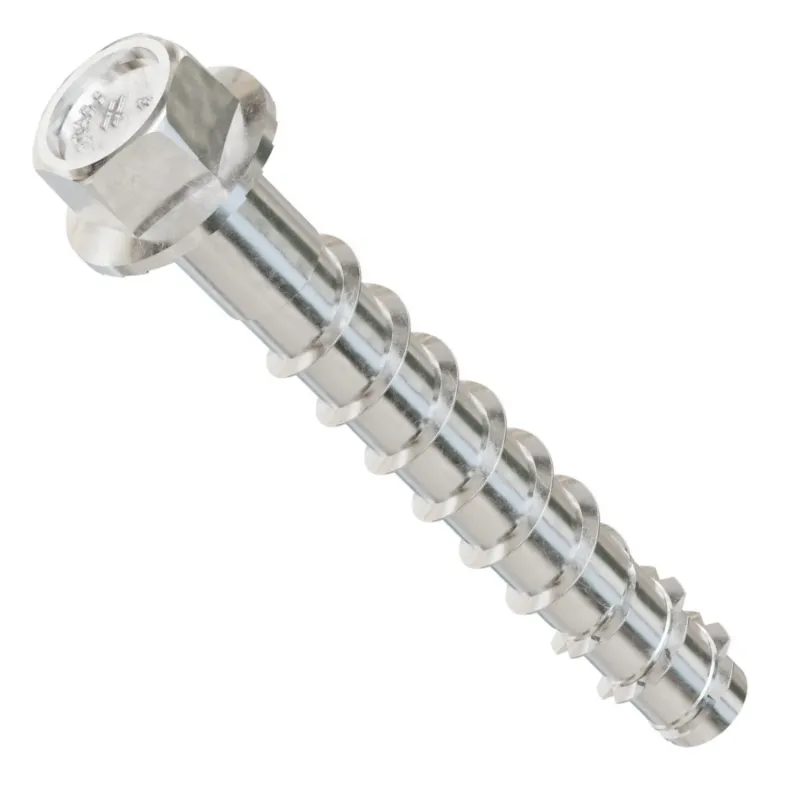

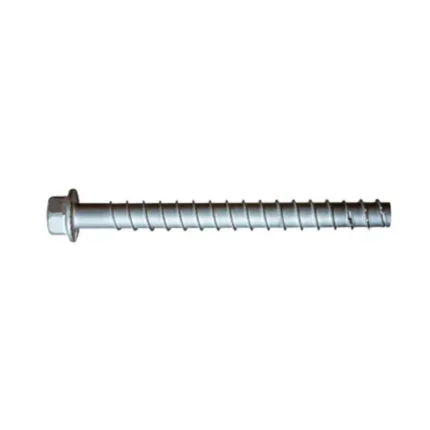

Simpson Strong-Tie THD37300H4SS Titen HD (3/8″ x 3″) Heavy Duty SS Screw Anchor – Type 304 (50 Pack)
Simpson THD37300H4SS Description
The Simpson Titen HD Heavy-duty Screw Anchor is a reliable solution for anchoring in exterior or corrosive environments, featuring Type 304 stainless steel construction and a patented thread design for easy installation.
Simpson THD37300H4SS Includes
- (50) 3/8 x 3 Type 304 Stainless Steel Titen HD Heavy-duty Screw Anchor
Simpson THD37300H4SS Features
- Ideal for exterior or corrosive environments
- Installs with an impact wrench or by hand tool
- Tested in accordance with ACI355.2, AC193 and AC106
Simpson THD37300H4SS Applications
- Exterior construction requiring corrosion-resistant anchoring
- Mechanical, electrical, and plumbing installations
- General anchoring in concrete and masonry
Simpson THD37300H4SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson THD37300H4SS Specifications
| Diameter | 3/8″ |
| Length | 3″ |
| Material | 304 Stainless Steel |
| Drill bit size | 3/8″ |
| Drive type | 9/16″ Hex |
| Fixture hole size | 1/2″-9/16″ |
| Head type | Hex Head |
| Quantity | 50 |
NOTE: Use the correct fasteners in the specified positions to achieve the published load values
