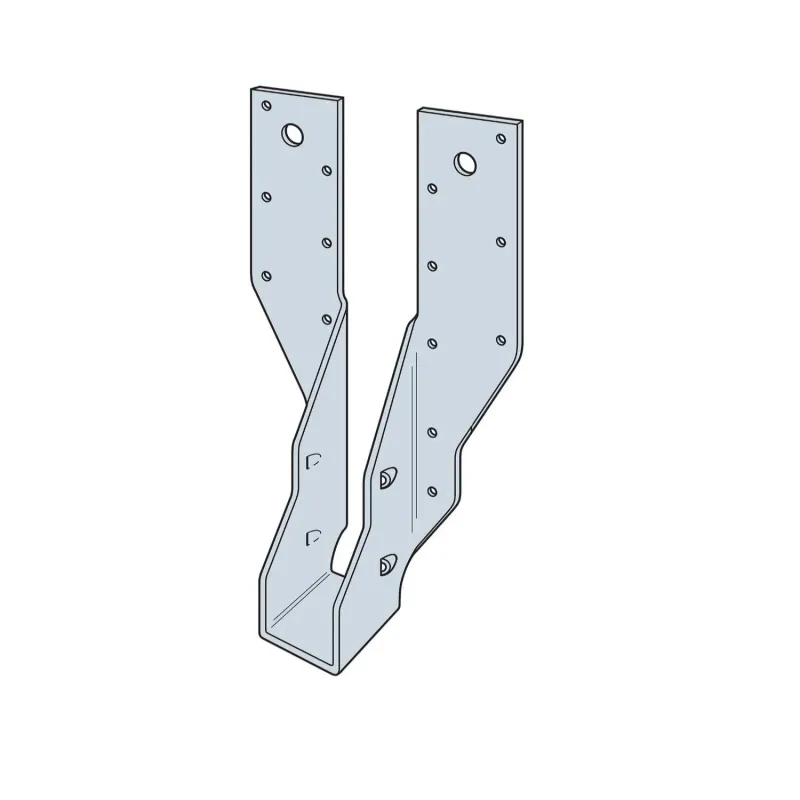

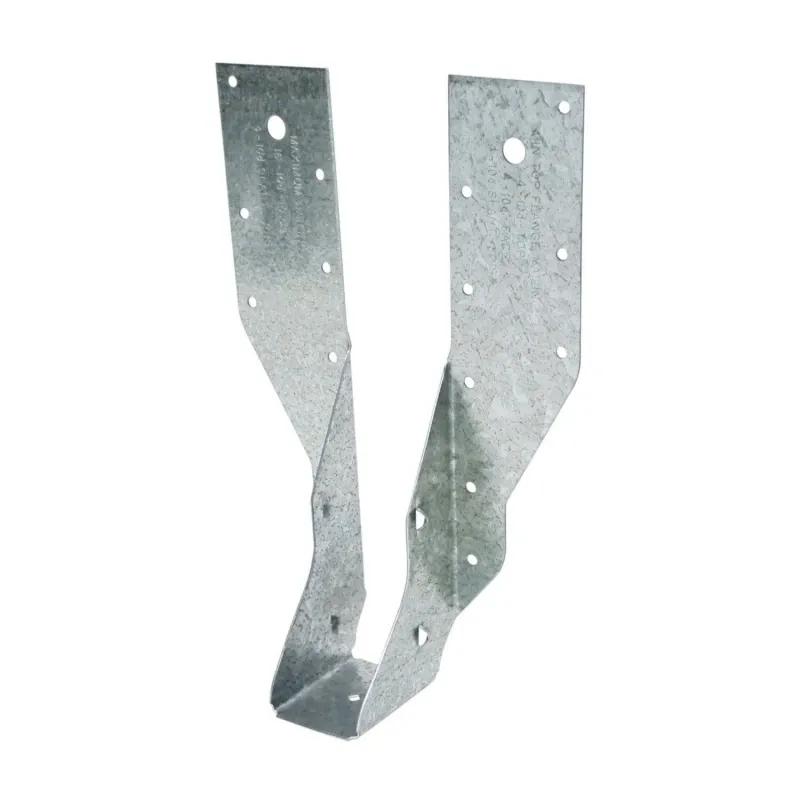

Simpson Strong-Tie THA29 (9-11/16 in.) Adjustable Truss Hanger for 2x Truss
Simpson Strong-Tie THA29 Description
The THA29 Adjustable Truss Hanger by Simpson Strong-Tie features extra long straps for full code nailing and a G90 Galvanized coating for durability.
Simpson Strong-Tie THA29 Includes
- (1) THA29 Adjustable Truss Hanger
Simpson Strong-Tie THA29 Features
- Extra long straps for full code nailing
- Field-formed straps for top flange hanger convenience
- PAN nailing to prevent splitting of truss bottom chords
- G90 Galvanized coating for corrosion resistance
- Compatible with hot-dip galvanized fasteners meeting ASTM A153 specifications
Simpson Strong-Tie THA29 Applications

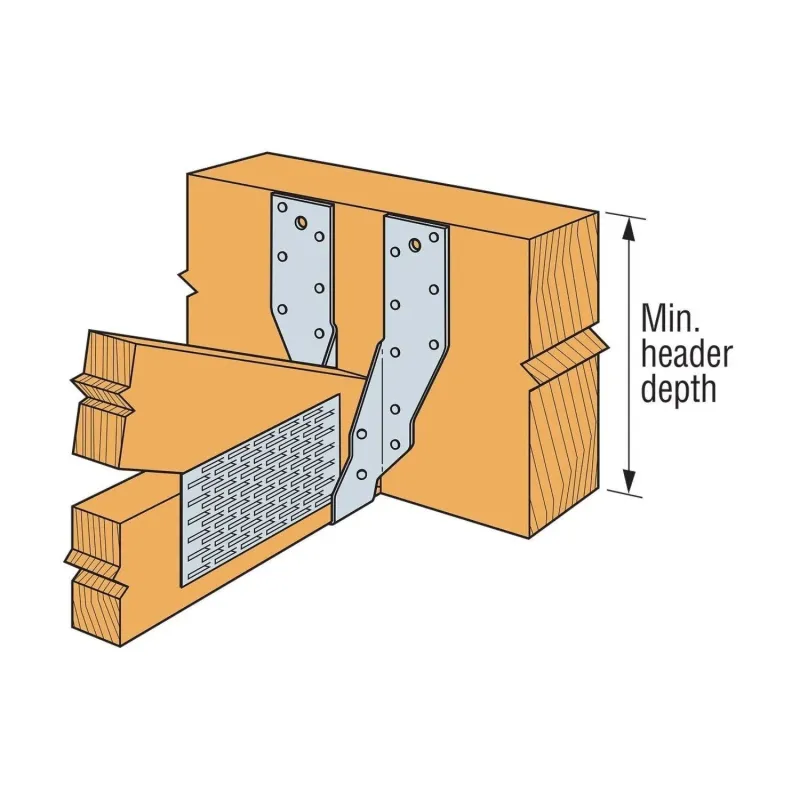

- Truss framing requiring adjustable hangers
- Top flange hanger installations
- Face mount hanger applications
- Uplift load applications
Simpson Strong-Tie THA29 Installation Overview
- Use all specified fasteners
- Drive nails at an angle for joist attachment
- Field form straps for top flange installation
- Install nails according to the table for top and face mount configurations
- Fill lowest face nails for uplift loads
Simpson Strong-Tie THA29 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |

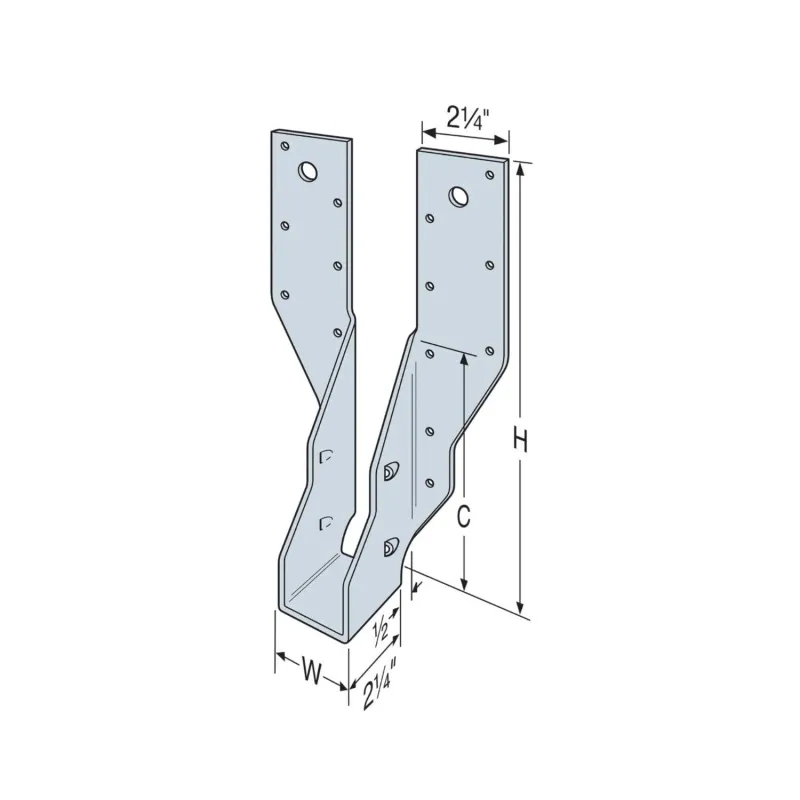

| Height | 9-11/16″ |
| Width | 1-5/8″ |
| Fasteners required | Top – (4) 0.148″ x 3″ Nails, Face – (6) 0.148″ x 3″ Nails, Carried Member – (4) 0.148″ x 3″ Nails |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
