Simpson Strong-Tie SUL46 (4″ x 6″) Galvanized Left-Skewed U-Shaped Hanger
Simpson Strong-Tie SUL46 Description

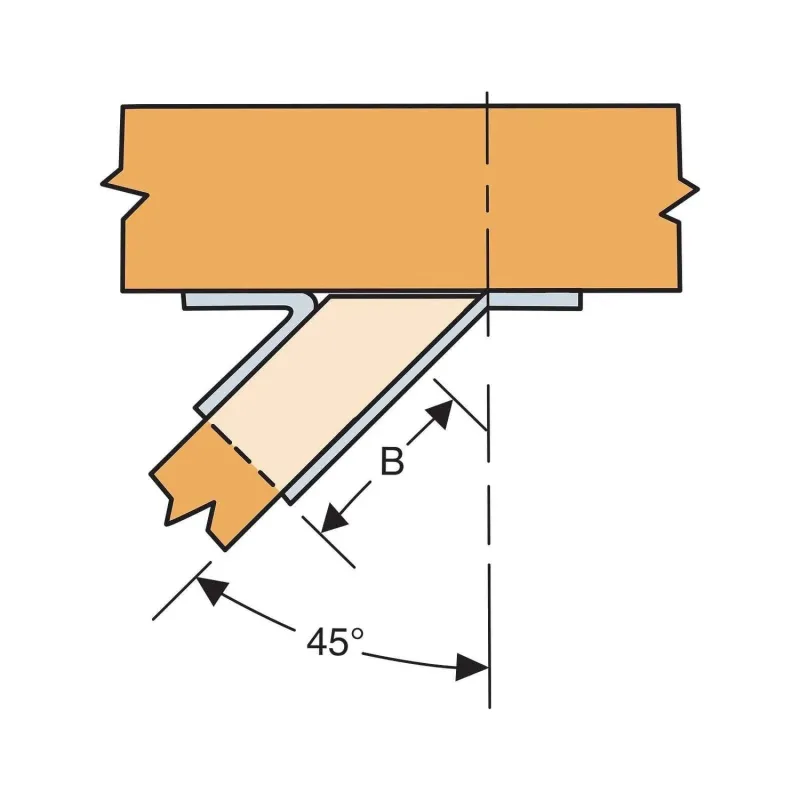

The SUL46 Left Skewed Joist Hanger is designed for angled beam-to-joist connections, offering enhanced load-bearing capacity and structural integrity.
Simpson Strong-Tie SUL46 Includes
- (1) SUL46 Left Skewed Joist Hanger
Simpson Strong-Tie SUL46 Features
- Left-Skewed Design for angled beam-to-joist connections
- G90 Galvanized Finish for corrosion resistance
- High-Strength U-Shaped Construction for structural stability
- Precision Fit for standard lumber sizes
- Versatile Applications for residential and commercial framing
Simpson Strong-Tie SUL46 Applications
- Residential framing: Ideal for decks and roofs
- Commercial construction: Suitable for structural wood connections
- Industrial projects: Ensures secure and precise fit for skewed applications
Simpson Strong-Tie SUL46 Installation Overview
- Verify dimensions and alignment of beam and joist
- Position the hanger to the joist per plans
- Attach using specified screws per manufacturer guidelines
- Ensure all nail holes are filled with specified fasteners
- Confirm the connection is secure and properly aligned
Simpson Strong-Tie SUL46 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face – (8) SD9112 Screws, Joist – (4) SD9112 Screws |
| For Treated Lumber | No |
| Height | 4-3/4″ |
| Joist size | 4″ X 6″ |
| Thickness | 16 Gauge |
| Type | Left Skewed |
| Width | 3-9/16″ |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values.
