Simpson Strong-Tie STB2-75512MGR10 Strong Bolt (3/4″ x 5-1/2″) Mechanically Galvanized Wedge Anchor (10 Pack)
Simpson Strong-Tie STB2-75512MGR10 Description

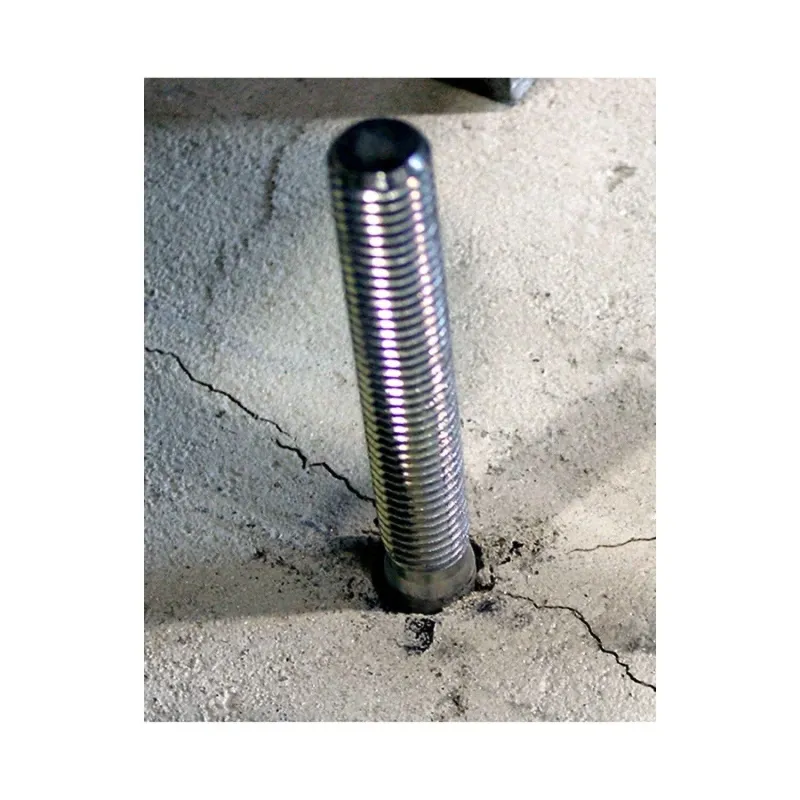

Simpson Strong-Bolt 2 anchors are ICC-ES code compliant, designed for cracked or uncracked concrete, and suitable for static and seismic loading.
Simpson Strong-Tie STB2-75512MGR10 Includes
- (10) 3/4 in. x 5-1/2 in. Mechanically Galvanized Wedge Anchor
Simpson Strong-Tie STB2-75512MGR10 Features
- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical, and overhead applications
- Tested for minimum concrete thickness of 3 1/4″
- Standard ANSI fractional sizes for compatibility with common tools
- Qualified for static and seismic loading
Simpson Strong-Tie STB2-75512MGR10 Applications
- Concrete anchoring for structural support
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-75512MGR10 Installation Overview
- Drill a hole in the base material using a carbide drill bit matching the anchor diameter.
- Blow the hole clean using compressed air.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the anchor top.
- Place the anchor in the fixture and drive it into the hole.

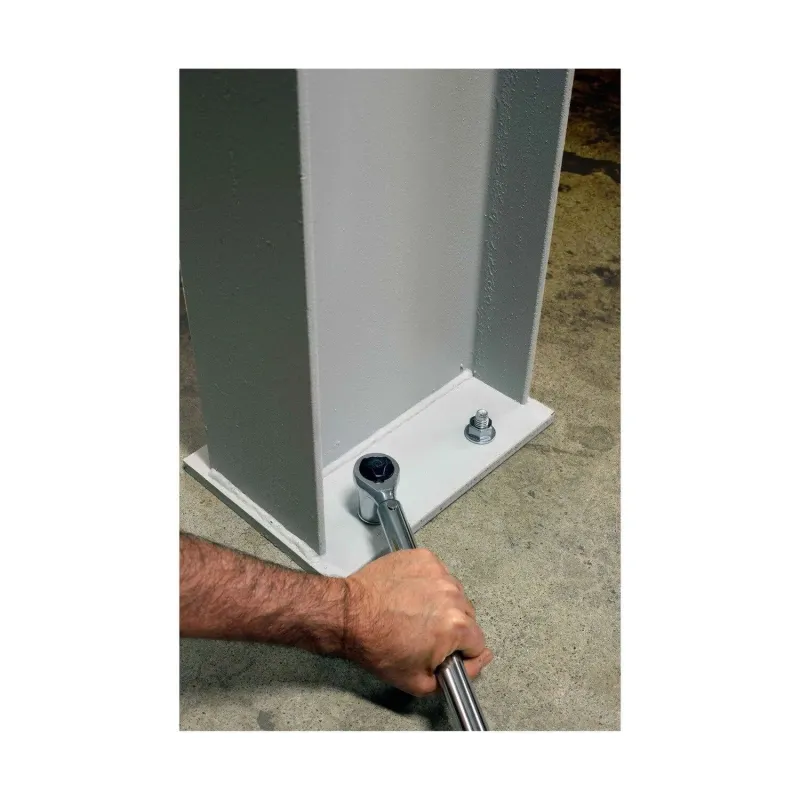

- Tighten the anchor to the specified installation torque.
Simpson Strong-Tie STB2-75512MGR10 Specifications
| Diameter | 3/4″ |
| Length | 5-1/2″ |
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Drill bit size | 3/4″ |
| Fixture hole size | 7/8″ |
| Installation torque | 90 ft. lbf. |
| Thread length | 3-3/16″ |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
