Simpson Strong-Tie STB2-75512F10 Strong Bolt (3/4″ x 5-1/2″) 2 Wedge Anchor – Fully Assembled (10 Pack)
Simpson STB2-75512F10 Description

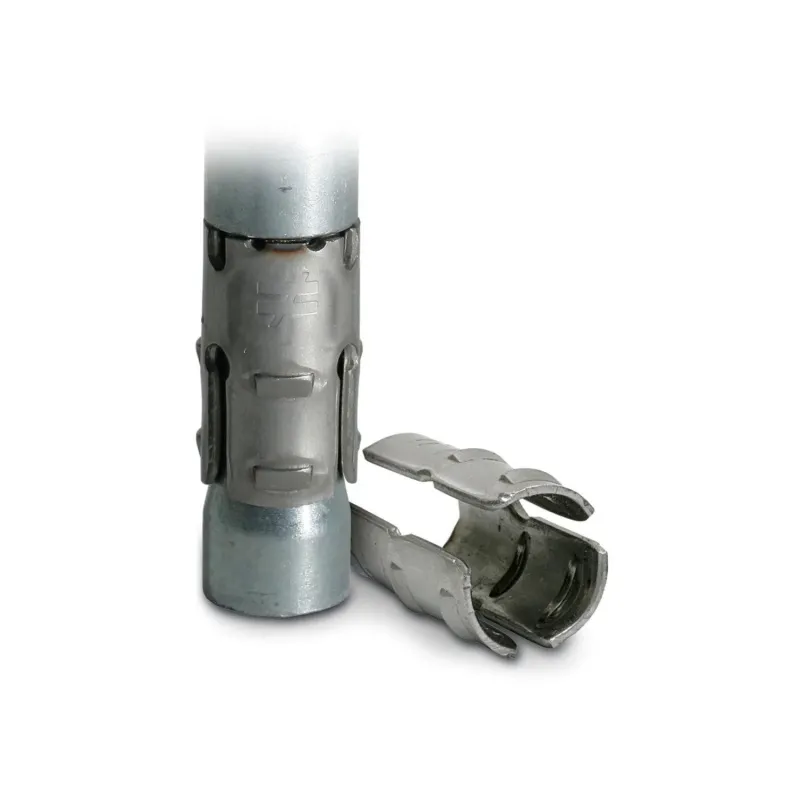

The Simpson Strong-Tie Strong-Bolt 2 Wedge Anchors are engineered for reliable performance in both cracked and uncracked concrete, and masonry applications. These fully assembled anchors are suitable for static and seismic loading conditions, making them ideal for a variety of construction projects.
Simpson STB2-75512F10 Includes
- (10) 3/4 in. x 5-1/2 in. Wedge Anchor
Simpson STB2-75512F10 Features

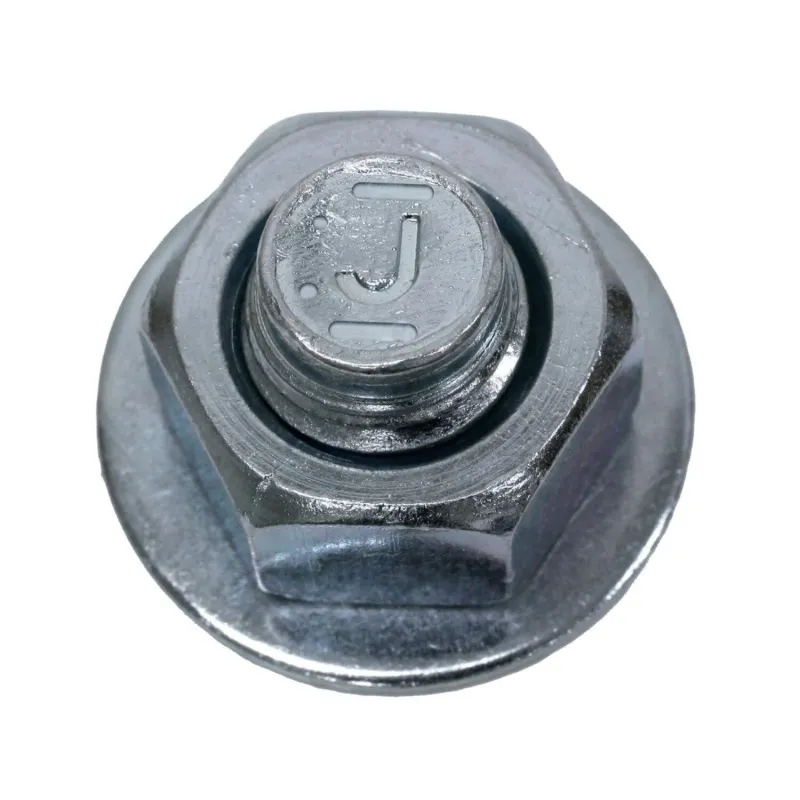

- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4″, and lightweight concrete-over-steel deck thickness of 2 1/2″ and 3 1/4″
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Simpson STB2-75512F10 Applications
- Anchoring structural and non-structural elements such as pipes, struts, and fixtures
- Overhead indoor construction
- Mounting electrical equipment
- Warehouse racking
Simpson STB2-75512F10 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.
- Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson STB2-75512F10 Specifications
| Diameter | 3/4″ |
| Finish | Zinc Plated |
| Length | 5-1/2″ |
| Material | Carbon Steel |
| Drill bit size | 3/4″ |
| Thread length | 3-3/16″ |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
