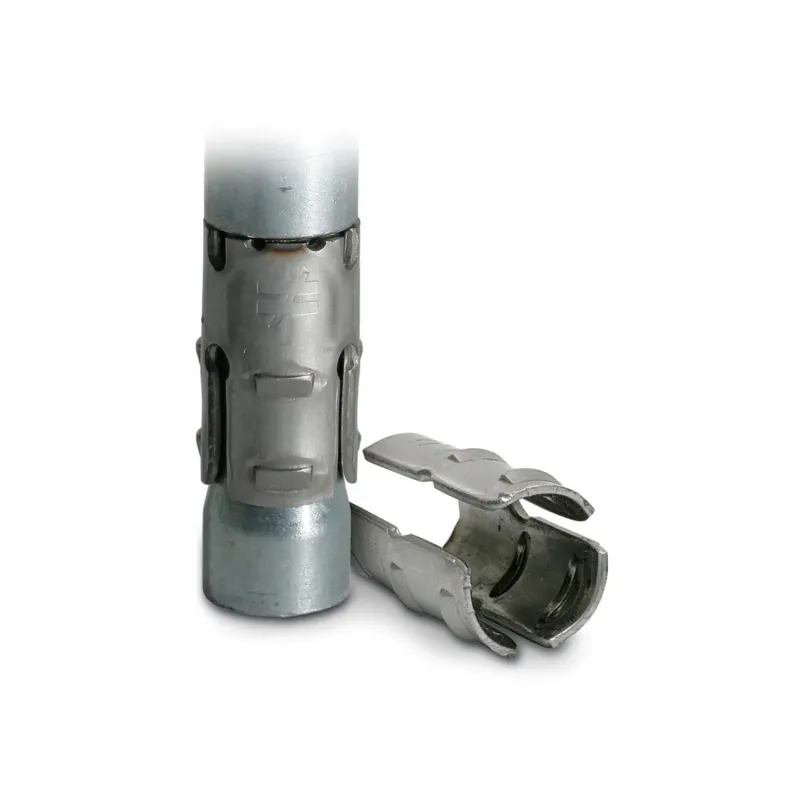

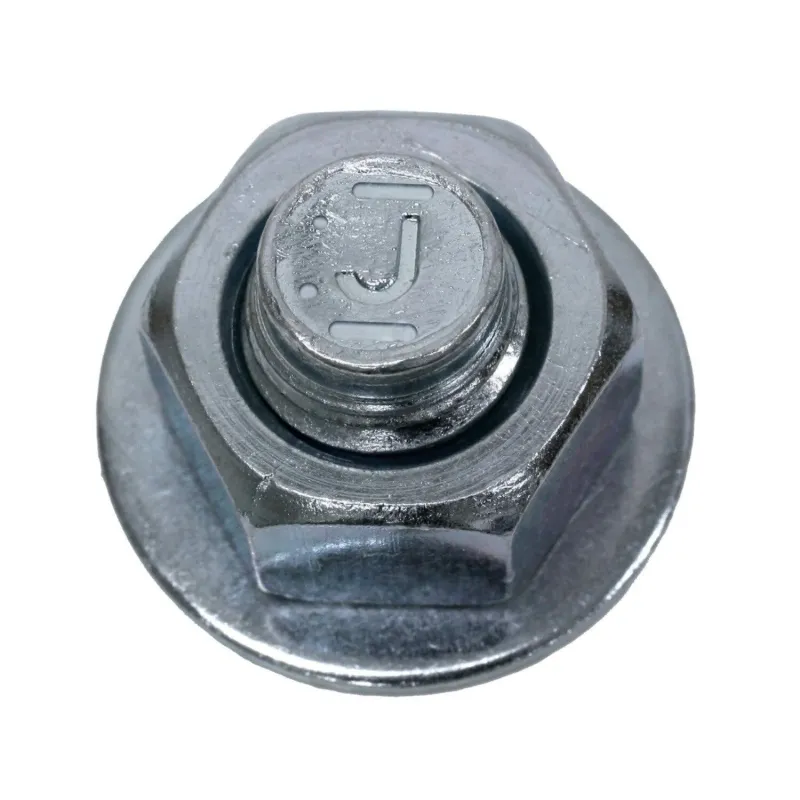

Simpson Strong-Tie STB2-62500F20 Strong-Bolt (5/8″ x 5″) 2 Wedge Anchor, Fully Assembled (20 Pack)
Simpson STB2-62500F20 Description
The Simpson Strong-Tie Strong-Bolt 2 Wedge Anchors are engineered for reliable performance in both cracked and uncracked concrete, and masonry applications. These fully assembled anchors are suitable for static and seismic loading conditions, making them ideal for a variety of construction projects.
Simpson STB2-62500F20 Includes
- (20) 5/8 in. x 5 in. Strong-Bolt 2 Wedge Anchor
Simpson STB2-62500F20 Features
- Dual undercutting embossments for enhanced load-carrying capacity
- Chamfered top prevents mushrooming during installation
- Suitable for horizontal, vertical, and overhead installations
Simpson STB2-62500F20 Applications
- Anchoring structural and non-structural elements such as pipes, struts, and fixtures
- Overhead indoor construction
- Mounting electrical equipment
- Warehouse racking
Simpson STB2-62500F20 Installation Overview
- Drill a hole in the base material using a 5/8 in. drill bit
- Insert the anchor into the hole
- Tighten the nut to secure the anchor in place
Simpson STB2-62500F20 Specifications
| Diameter | 5/8″ |
| Finish | Zinc Plated |
| Length | 5″ |
| Material | Carbon Steel |
| Drill bit size | 5/8″ |
| Quantity | 20 |
| Thread length | 2-15/16″ |
NOTE: Do not use an impact wrench to set or tighten anchors. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity
