Simpson Strong-Tie STB2-62120MGR10 Strong-Bolt (5/8″ x 12″) Mechanically Galvanized Wedge Anchor (10 Pack)
Simpson Strong-Tie STB2-62120MGR10 Description

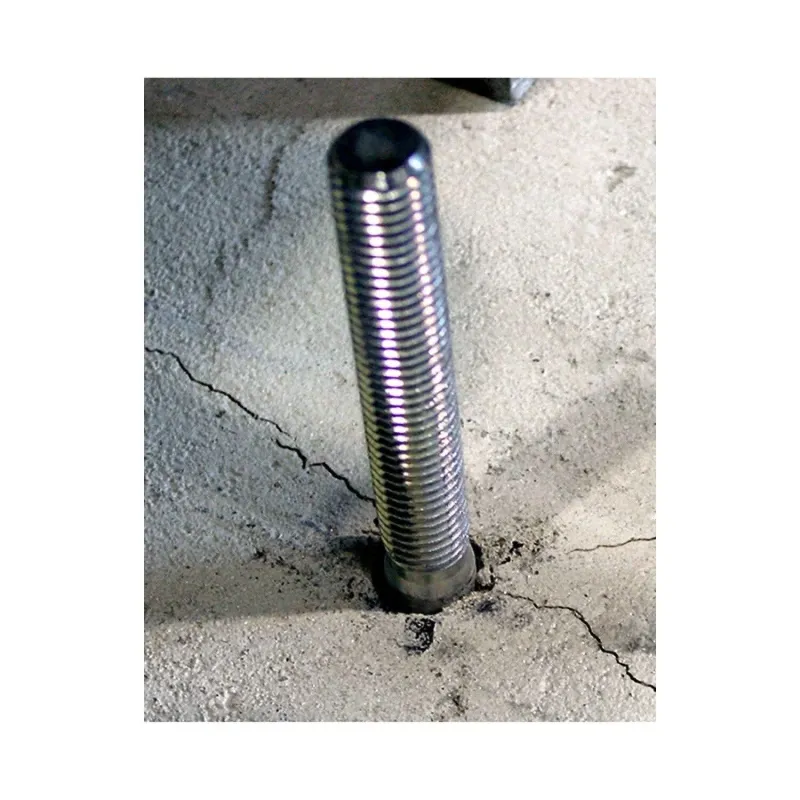

Simpson Strong-Bolt 2 anchors are non-bottom-bearing, ICC-ES code compliant anchors made to be installed in cracked or uncracked concrete. Strong-Bolt 2 Wedge anchors are qualified for both static and seismic loading and suitable for horizontal, vertical and overhead applications.
Simpson Strong-Tie STB2-62120MGR10 Includes
- (10) 5/8 in. x 12 in. Mechanically Galvanized Wedge Anchor
Simpson Strong-Tie STB2-62120MGR10 Features
- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical and overhead applications
- Tested for minimum concrete thickness of 3 1/4″
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested in uncracked concrete per ACI355.2 and AC193
Simpson Strong-Tie STB2-62120MGR10 Applications
- Concrete anchoring for static and seismic loading
- Horizontal, vertical, and overhead applications

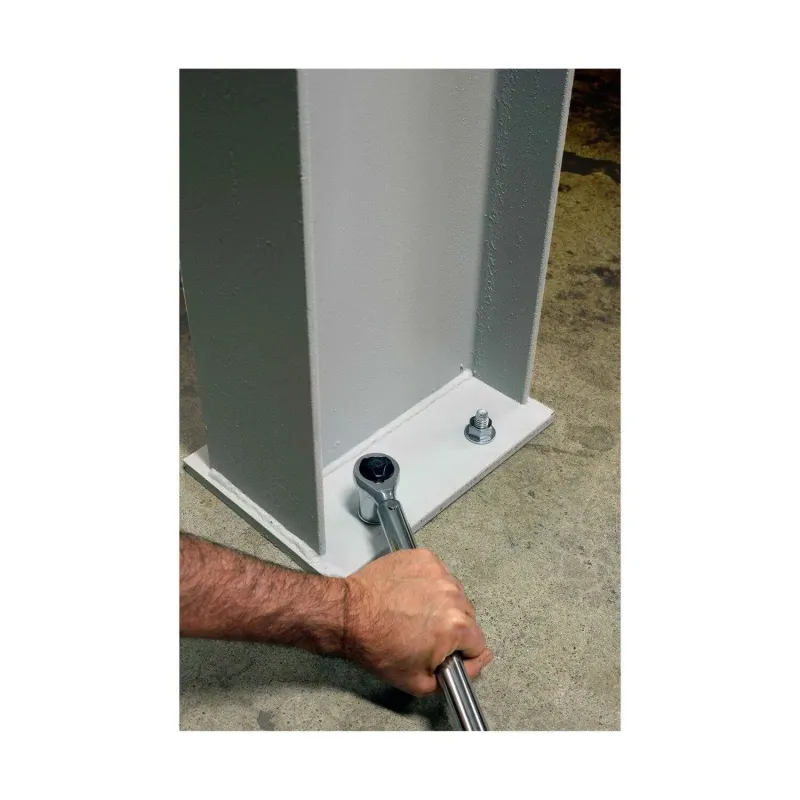

Simpson Strong-Tie STB2-62120MGR10 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.
- Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-62120MGR10 Specifications
| Diameter | 5/8″ |
| Length | 12″ |
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Drill bit size | 5/8″ |
| Fixture hole size | 11/16″ |
| Installation torque | 60 ft. lbf. |
| Thread length | 6″ |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
