Simpson Strong-Tie STB2-50700MGF25 Strong-Bolt (1/2″ x 7″) Mechanically Galvanized Wedge Anchor, Fully Assembled (25 Pack)
Simpson Strong-Tie STB2-50700MGF25 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are designed for reliable tension and shear loads in cracked and uncracked concrete, offering high-performance anchoring solutions.
Simpson Strong-Tie STB2-50700MGF25 Includes
- (25) 1/2 in. x 7 in. Mechanically Galvanized Wedge Anchor
Simpson Strong-Tie STB2-50700MGF25 Features
- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical and overhead applications
- Tested for minimum concrete thickness of 3 1/4″
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested in uncracked concrete per ACI355.2 and AC193
Simpson Strong-Tie STB2-50700MGF25 Applications
- Anchoring structural columns
- Securing racking systems
- Installing machinery
- Fastening heavy-duty fixtures

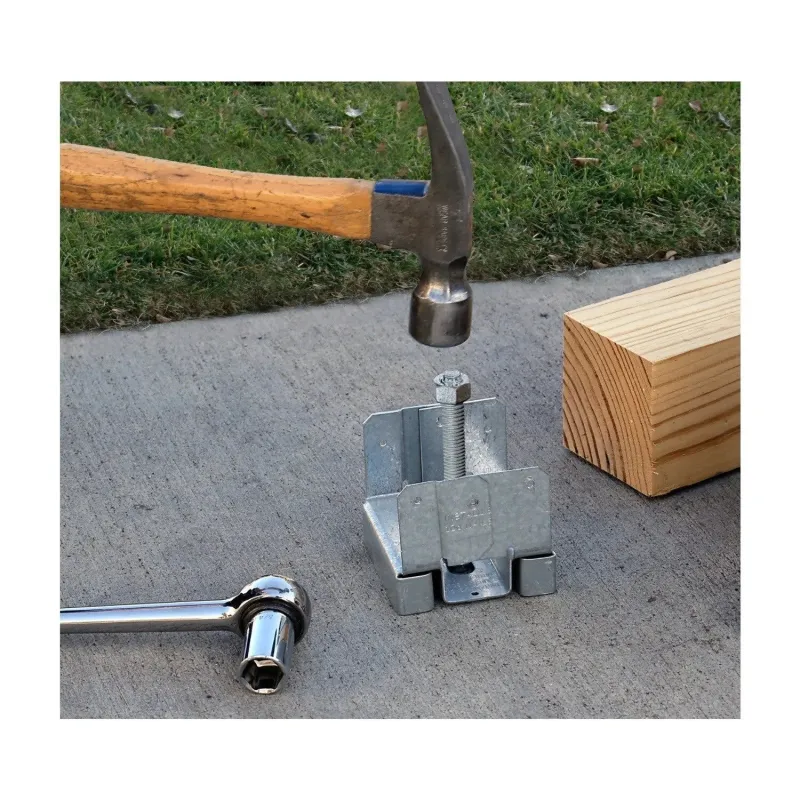

Simpson Strong-Tie STB2-50700MGF25 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
- Tighten the anchor to the required installation torque.
Simpson Strong-Tie STB2-50700MGF25 Specifications
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Diameter | 1/2 in. |
| Length | 7 in. |
| Drill Bit Size | 1/2 in. |
| Fixture Hole Size | 9/16 in. |
| Installation Torque | 45 ft. lbf. |
| Thread Length | 5-5/16 in. |
| Wrench Size | 3/4 in. |
