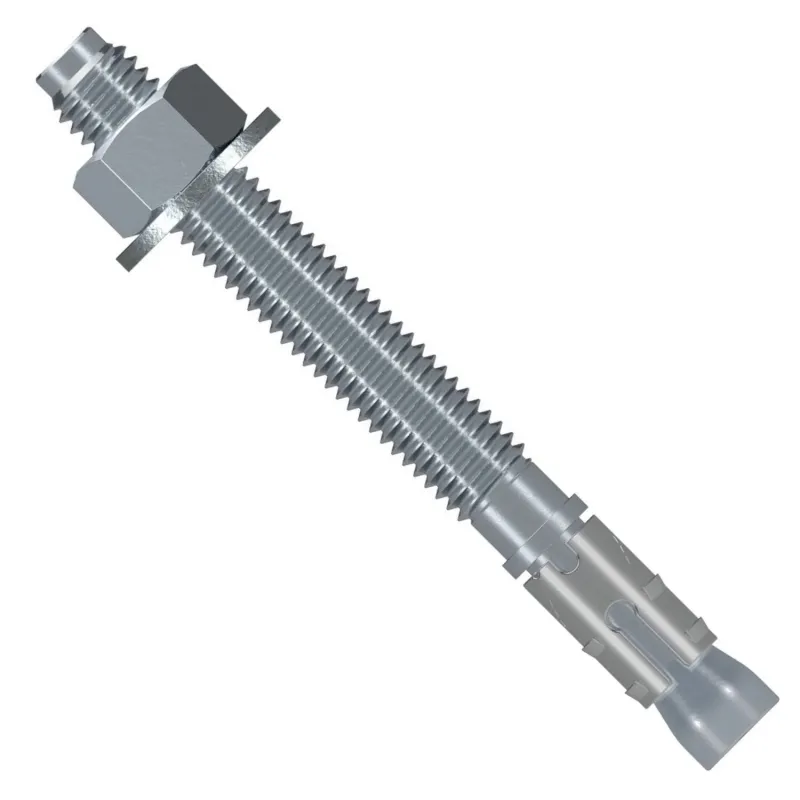

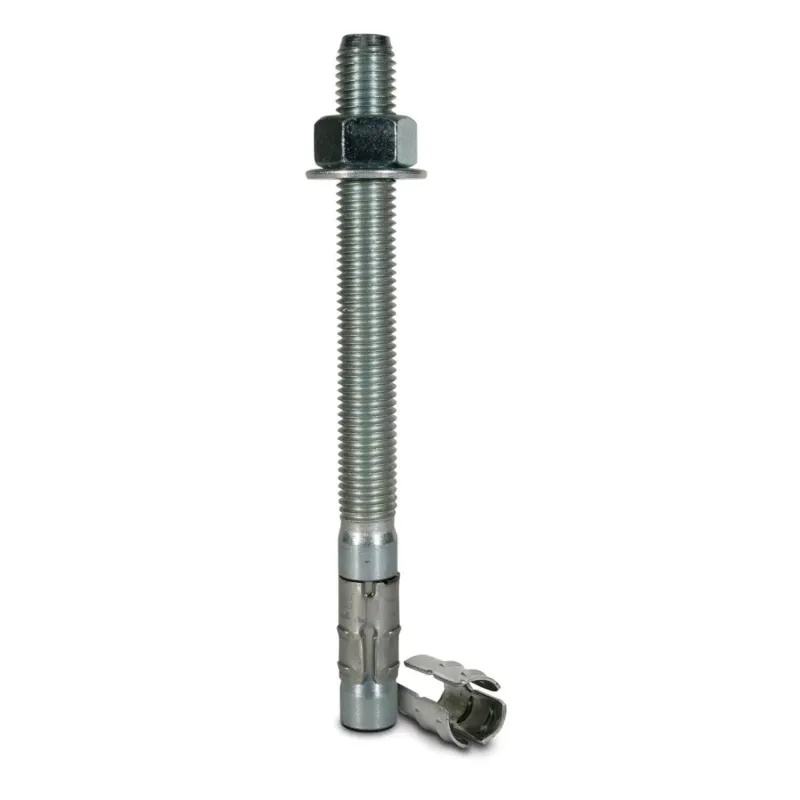

Simpson Strong-Tie STB2-50434F25 Strong Bolt (1/2″ x 4-3/4″) Wedge Anchor Fully Assembled (25 Pack)
Simpson STB2-50434F25 Description
The Simpson Strong-Bolt 2 Wedge Anchors are designed for reliable performance in cracked and uncracked concrete, suitable for static and seismic loading conditions.
Simpson STB2-50434F25 Includes
- (25) 1/2 in. x 4-3/4 in. Strong-Bolt 2 Wedge Anchor
Simpson STB2-50434F25 Features

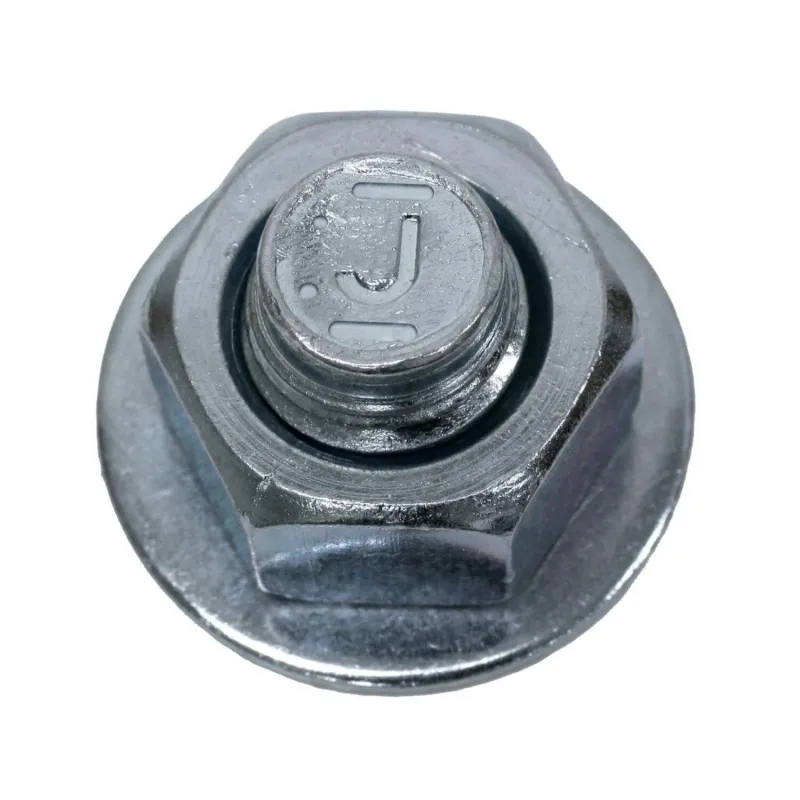

- Chamfered top prevents mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Tested per ACI355.2 and AC193
- Zinc-plated carbon steel construction
Simpson STB2-50434F25 Applications
- Anchoring structural and non-structural elements
- Mounting pipes, struts, and fixtures
- Overhead indoor construction
- Securing warehouse racking
- Installing electrical equipment
Simpson STB2-50434F25 Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole using compressed air
- Assemble the anchor with nut and washer
- Insert the anchor into the hole and tighten to specified torque
Simpson STB2-50434F25 Specifications
| Diameter | 1/2 in. |
| Length | 4-3/4 in. |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Thread Length | 3-1/16 in. |
| Drill Bit Size | 1/2 in. |
| Quantity | 25 |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
