Simpson Strong-Tie STB2-50334 Strong-Bolt (1/2″ x 3-3/4″) Wedge Anchor – Zinc Plated (25 Pack)
Simpson Anchors STB2-50334 Description

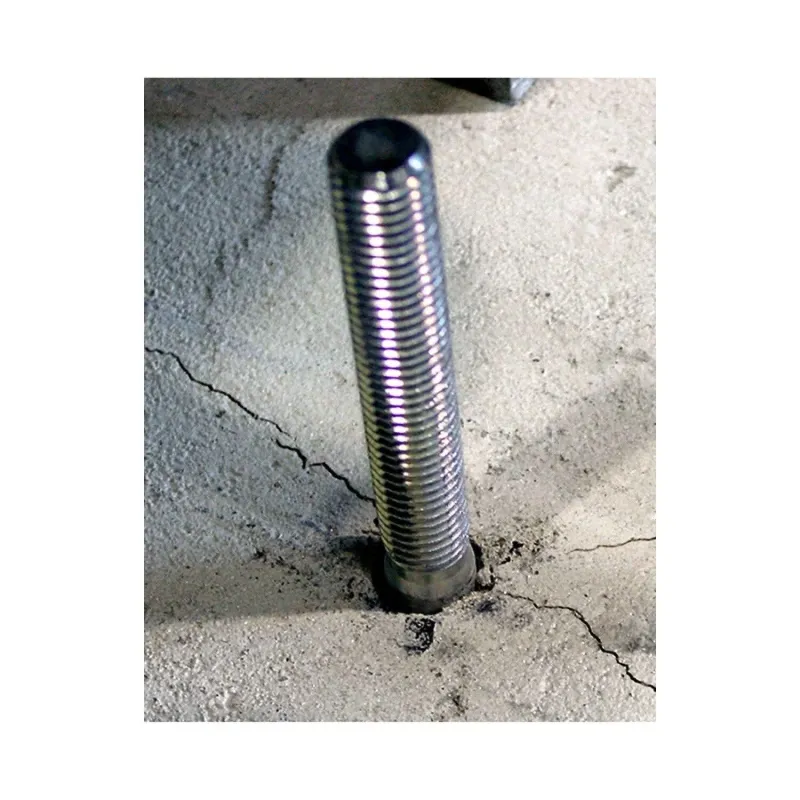

The Strong-Bolt Is Wedge Anchor Designed For Optimum Performance In Both Cracked And Uncracked Concrete: A Requirement That The 2009 Ibc Places On Post-Installed Anchors. The Strong-Bolt Anchor Is Proven To Offer Increased Reliability In The Most Adverse Conditions, Including Cracked Concrete Under Static And Seismic Loading. The Proprietary Tri-Segmented Clip Has Dual Undercutting Embossments On Each Segment Which Enable Secondary Or Follow-Up Expansion If A Crack Forms And Intersects The Anchor Location.
Simpson Anchors STB2-50334 Includes
- (25) Anchors
Simpson Anchors STB2-50334 Features
- Independently Adjustable Tri-Segment Clip For Follow-Up Expansion
- Dual Embossments On Each Clip Segment

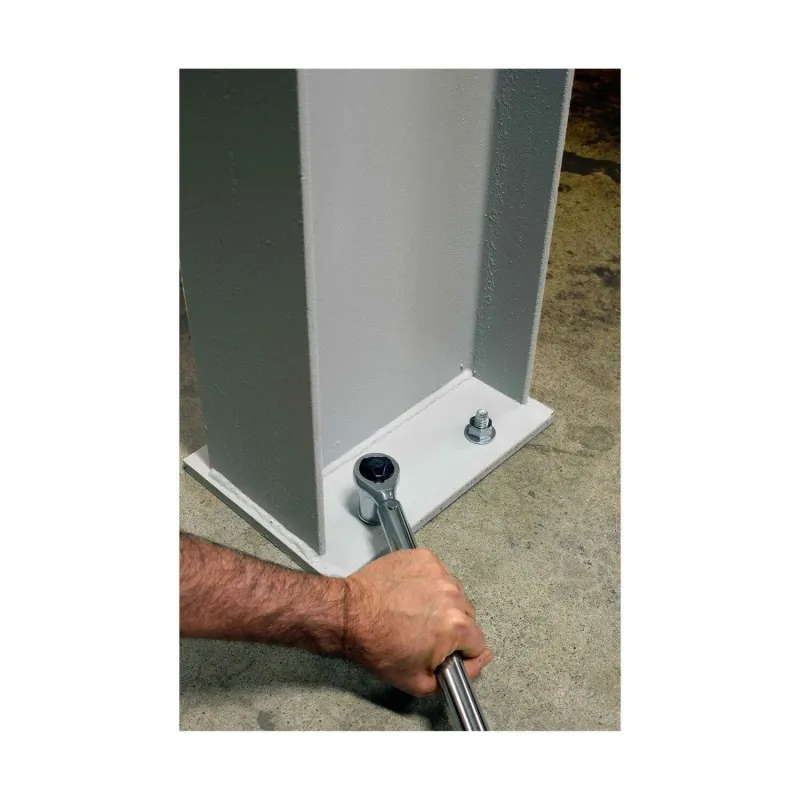

- Installs Like A Standard Wedge Anchor
- Head Is Stamped With Simpson Sign And Size Id
- No Need For Special Bits Or Installation Tools
Simpson Anchors STB2-50334 Specifications
| Anchor Diameter | 1/2″ |
| Anchor Length | 3-3/4″ |
| Anchor Material | Zinc |
| Drill Bit Diameter | 1/2″ |
| Thread Length (in.) | 2-1/16 |
