Simpson Strong-Tie STB2-50234MGR25 Strong-Bolt (2 1/2″ x 2-3/4″) Mechanically Galvanized Wedge Anchor (25 Pack)
Simpson Strong-Tie STB2-50234MGR25 Description

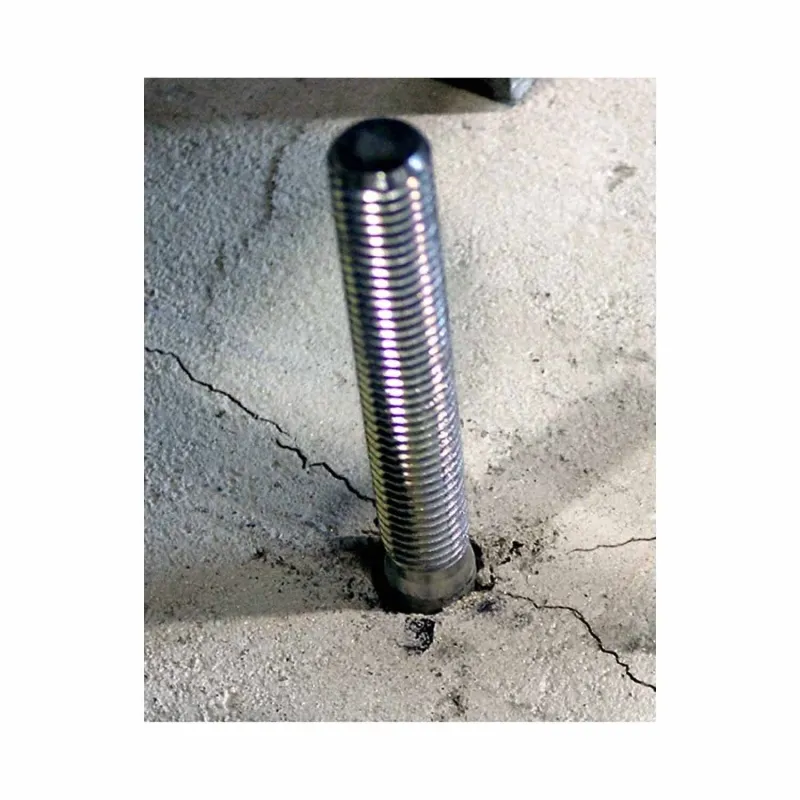

Simpson Strong-Bolt 2 anchors are non-bottom-bearing, ICC-ES code compliant anchors made to be installed in cracked or uncracked concrete.
Simpson Strong-Tie STB2-50234MGR25 Includes
- (25) 1/2 in. x 2-3/4 in. Mechanically Galvanized Wedge Anchor
Simpson Strong-Tie STB2-50234MGR25 Features
- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical and overhead applications
- Tested for minimum concrete thickness of 3 1/4″
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested in uncracked concrete per ACI355.2 and AC193
Simpson Strong-Tie STB2-50234MGR25 Applications
- Concrete anchoring for structural support
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-50234MGR25 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth and dust.
- Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.
- Place the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-50234MGR25 Specifications
| Diameter | 1/2″ |
| Length | 2-3/4″ |
| Material | Carbon steel |
| Finish | Mechanically Galvanized |
| Drill Bit Size | 1/2″ |
| Thread Length | 1-1/4″ |
NOTE: Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
