Simpson Strong-Tie STB2-37234S6F50 Strong Bolt (3/8″ x 2-3/4″) Fully Assembled 2 Wedge Anchor – Type 316 (50 Pack)
Simpson Strong-Tie STB2-37234S6F50 Description
The Strong-Bolt 2 wedge anchor is a high-performance stainless steel anchor designed for static and seismic loading conditions, suitable for various applications including horizontal, vertical, and overhead installations.
Simpson Strong-Tie STB2-37234S6F50 Includes
- (50) 3/8 in. x 2-3/4 in. Type 316 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-37234S6F50 Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4″, and lightweight concrete-over-steel deck
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-37234S6F50 Applications
- Concrete anchoring in static and seismic conditions
- Horizontal, vertical, and overhead installations
- Lightweight concrete-over-steel deck applications

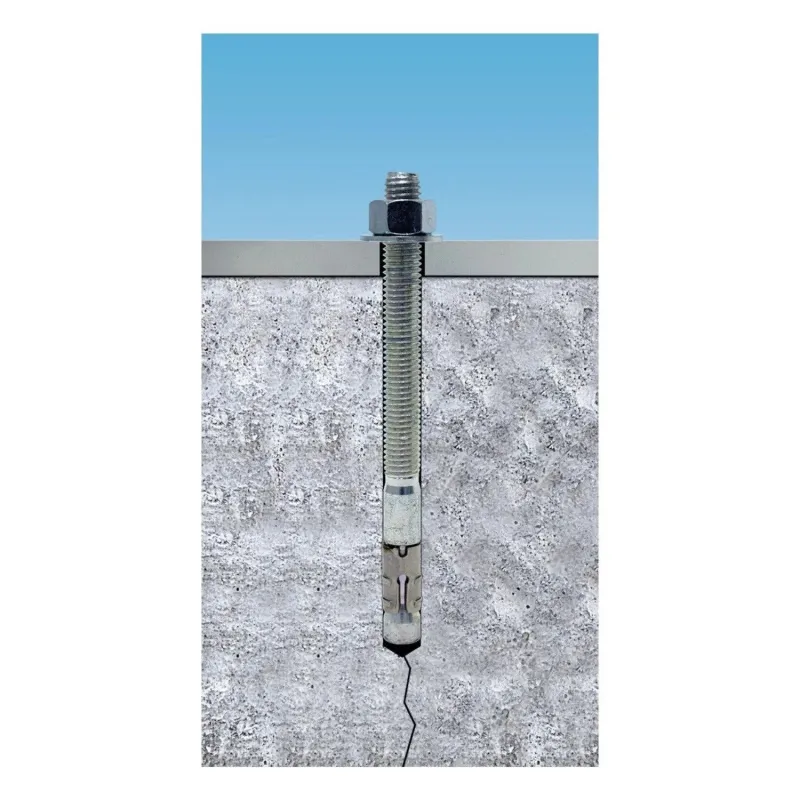

Simpson Strong-Tie STB2-37234S6F50 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth and dust.
- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
- Tighten the anchor to the required installation torque.
Simpson Strong-Tie STB2-37234S6F50 Specifications
| Material | Type 316 Stainless Steel |
| Anchor Diameter | 3/8 in. |
| Anchor Length | 2-3/4 in. |
| Packaging Quantity | 50 |
