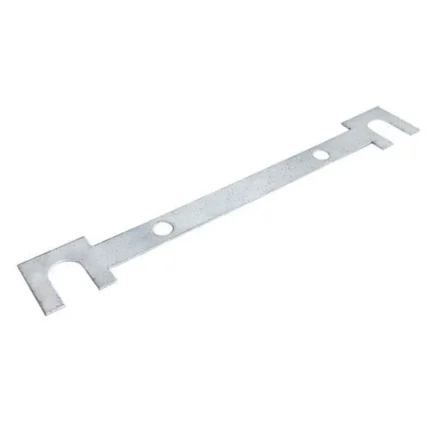

Simpson Strong-Tie SSWT24 (24″) Strong-Wall Reversible Anchor Bolt Template for Steel Shearwall
Simpson Strong-Tie SSWT24 Description
The SSWT24 Reversible Anchor Bolt Template is designed for precise anchorage in Steel Strong-Wall shearwalls, ensuring accurate bolt placement and compatibility with various models.
Simpson Strong-Tie SSWT24 Includes
- (1) Reversible Anchor Bolt Template
Simpson Strong-Tie SSWT24 Features
- Accurately locates anchor bolts for Steel Strong-Wall shearwalls
- Templates can be used with various anchor bolt models
- Variety of templates to fit all application needs
Simpson Strong-Tie SSWT24 Applications
- Anchorage for standard application on concrete foundation
- Garage portal systems on concrete foundations
- First-story wood floor systems
- Balloon framing on concrete foundations
- Two-story stacked on concrete foundations
- Cold formed steel on concrete foundations
Simpson Strong-Tie SSWT24 Installation Overview
- Installation of Steel Strong-Wall anchor bolt templates varies by application
Simpson Strong-Tie SSWT24 Specifications
| Special Order | FALSE |
| Application | Anchor Bolt Templates |
| API Approval | Approved – Full |
| Gauge | 14 |
| Coating/Material | Zinc Galvanized, G90 |
| Packaging Quantity | 1 |
NOTE: Templates are recommended and are required in some jurisdictions. Foundation design by designer. Templates are the same for 4″ or 6″ thick walls.
