Simpson Strong-Tie SSTB34 (7/8″ x 34-7/8″) Anchor Bolt for Concrete Applications
Simpson Strong-Tie SSTB34 Description
The SSTB34 Anchor Bolt is designed for concrete applications, offering high tensile capacity and corrosion resistance.
Simpson Strong-Tie SSTB34 Includes
- (1) Anchor Bolt for Concrete Applications
Simpson Strong-Tie SSTB34 Features
- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson Strong-Tie SSTB34 Applications

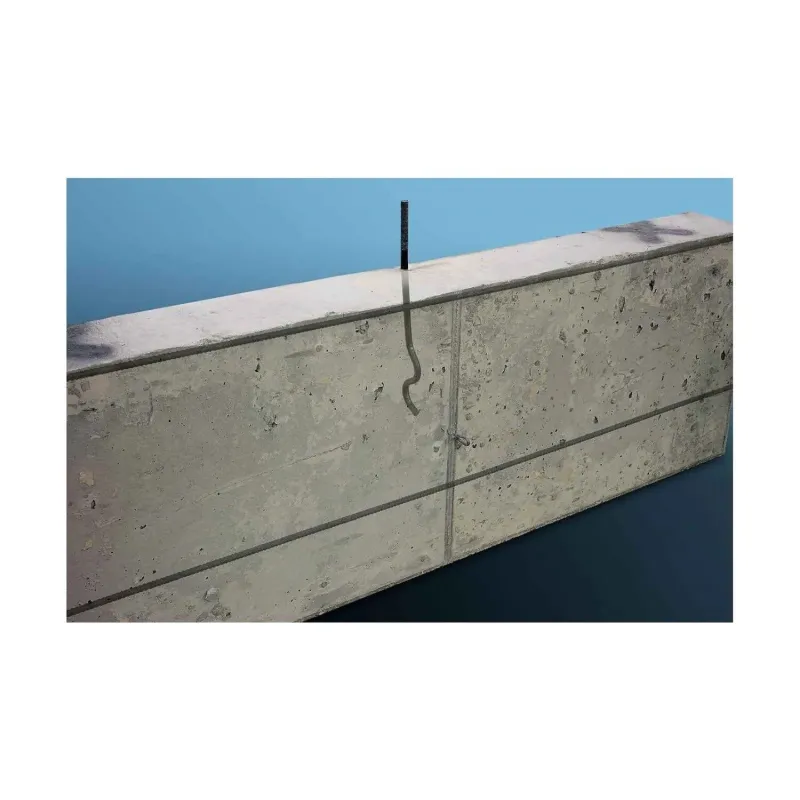

- Concrete anchoring for structural holdowns
- Use in monolithic and two-pour concrete applications
- Suitable for grout-filled concrete masonry units (GFCMU)
Simpson Strong-Tie SSTB34 Installation Overview
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders
- Minimum concrete compressive strength is 2,500 psi
- Nuts and washers for holdown attachment are not supplied; install standard nuts, couplers, and/or washers as required
- Order SSTBL models for longer thread length
Simpson Strong-Tie SSTB34 Specifications
| Material | ASTM F-1554, Grade 36 |
| Finish | None. May be ordered HDG |
| Diameter | 7/8″ |
| Length | 34-7/8″ |
| Thread Length | 4-1/2″ |
| Weight | 5.3 lb |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
