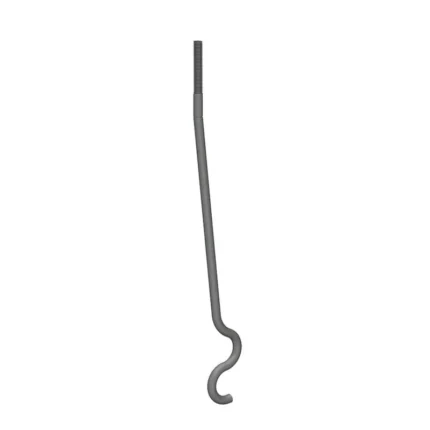

Simpson Strong-Tie SSTB16 (5/8 in. x 17-5/8 in.) Anchor Bolt for Concrete Applications
Simpson SSTB16 Description
The SSTB16 Anchor Bolt is designed for concrete applications, offering high tensile capacity and corrosion resistance.
Simpson SSTB16 Includes
- (1) Anchor Bolt for Concrete Applications
Simpson SSTB16 Features
- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson SSTB16 Applications
- Concrete anchoring for structural support
- Use in monolithic and two-pour concrete applications
- Suitable for grout-filled concrete masonry units (GFCMU)
Simpson SSTB16 Installation Overview
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders
- Ensure minimum concrete compressive strength of 2,500 psi
- Follow plan view detail for proper alignment and embedment
- Use standard nuts, couplers, and washers as required
- For HDG SSTB anchors, chase the threads or use overtapped products
Simpson SSTB16 Specifications
| Material | ASTM F-1554, Grade 36 |
| Finish | None. May be ordered HDG |
| Application | Concrete |
NOTE: Ensure proper installation using the specified nuts and washers to achieve published load values
