Simpson Strong-Tie SP4 (3-9/16″ x 7-1/4″) Galvanized U-Shaped Stud Plate Ties
Simpson SP4 Description
The SP4 Stud Plate Tie provides uplift resistance and is ideal for securing studs to plates at a ninety-degree angle, offering additional support in windy environments.
Simpson SP4 Includes
- (1) Stud Plate Tie
Simpson SP4 Features
- Provides uplift resistance
- Ideal for connecting studs to plates
- Suitable for windy environments
- Reinforced for high wind protection
- Secures wall to top or bottom track studs
Simpson SP4 Applications
- Securing studs to plates in construction
- Providing uplift resistance in windy environments
- Reinforcing structures against high winds

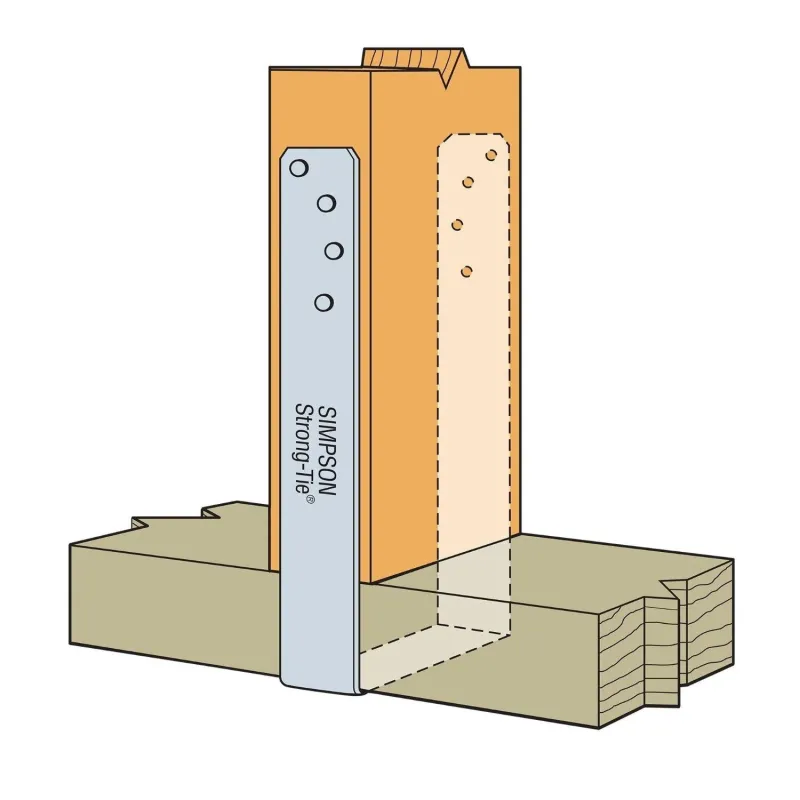

Simpson SP4 Installation Overview
- Use all specified fasteners as per guidelines
- Secure the plate to the stud at a ninety-degree angle
- Ensure proper alignment and fastening
Simpson SP4 Specifications
| Length | 7-1/4″ |
| Material | Carbon Steel |
| Fasteners required | (6) 0.148″ x 1-1/2″ Nails |
| For Treated Lumber | Yes |
| Width | 3-9/16″ |
NOTE: Ensure all specified fasteners are used to achieve the intended performance.
