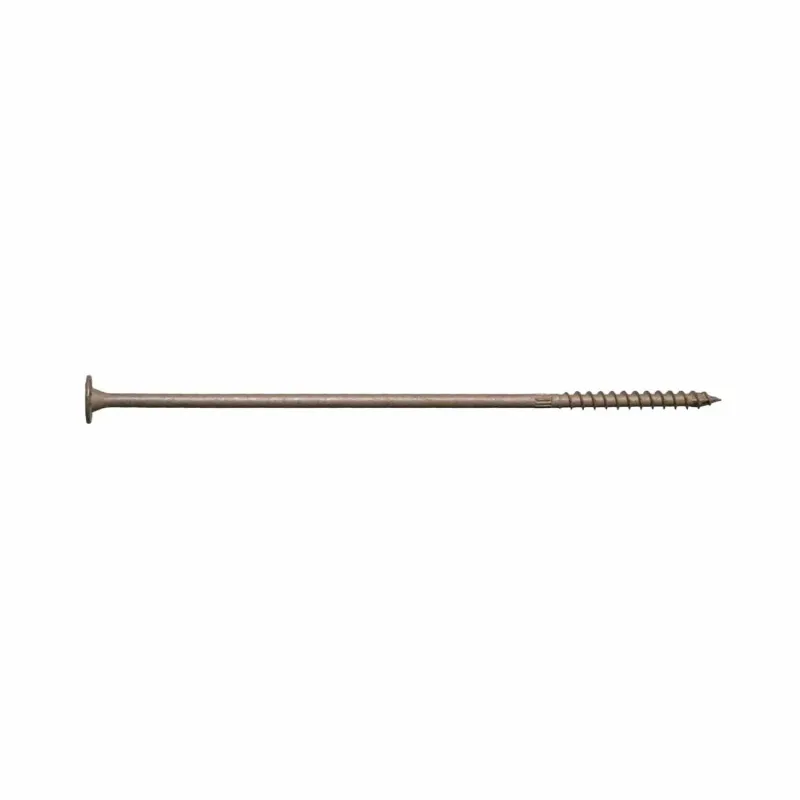

Simpson Strong-Tie SDWS221000DB-R50 Strong-Drive (0.220″ x 10″) T40 SDWS Timber Screw (Exterior Grade) Tan (50 Pack)
Simpson SDWS221000DB-R50 Description
The Strong-Drive SDWS Timber Screw is an exterior-grade fastener designed for wood-to-wood applications, featuring a double-barrier coating for corrosion resistance and a SawTooth point for fast starts.
Simpson SDWS221000DB-R50 Includes
- (50) 0.220 in. x 10 in. Strong-Drive SDWS Timber Screw
Simpson SDWS221000DB-R50 Features
- Bold thread design provides superior holding power
- SawTooth point ensures fast starts and reduces installation torque
- Underhead nibs allow for flush driving with reduced splintering
- Large washer head provides a large bearing area
- Size identification on all SDWS screw heads
- 6-lobe T40 drive for positive engagement and improved bit life
- Double-barrier coating for corrosion resistance equivalent to hot-dip galvanization
Simpson SDWS221000DB-R50 Applications
- Structural wood-to-wood connections including ledgers
- Mass timber connections such as CLT wall-to-wall and floor-to-floor
- Surface splines and lap joints
Simpson SDWS221000DB-R50 Specifications
| Fastener Type | Hand-Drive Screw |
| Application | Fastening Wood-to-Wood |
| Length | 10 in. |
| Diameter | 0.220 in. |
| Drive Type | T40 6-Lobe |
| Head Type | Washer Head |
| Thread Length | 2-3/4 in. |
| Coating/Material | Double-Barrier Coating |
| Color | Tan |
| Packaging Quantity | 50 |
