Simpson Strong-Tie SDWC15600-KT Strong-Drive(.155″ x 4-1/2″) T30 E-coat SDWC Truss Screw, Cap Head, Orange (50 Pack)
Simpson SDWC15600-KT Description

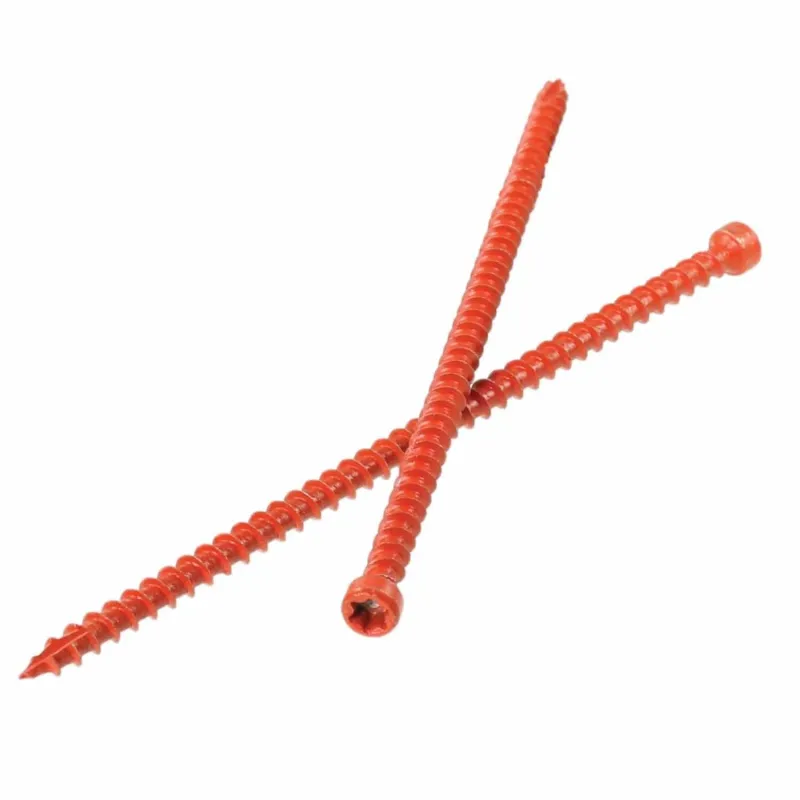

The Simpson Strong-Tie SDWC15600-KT Truss Plate Structural Screw Kit features screws with a fully-threaded shank for secure connections between roof and wall framing members. Includes installation guide tool and driver bit.
Simpson SDWC15600-KT Includes
- (50) 0.152 in. x 6 in. Truss Plate Structural Screws
- (1) Metal Installation Guide Tool
- (1) T30 Driver Bit
Simpson SDWC15600-KT Features

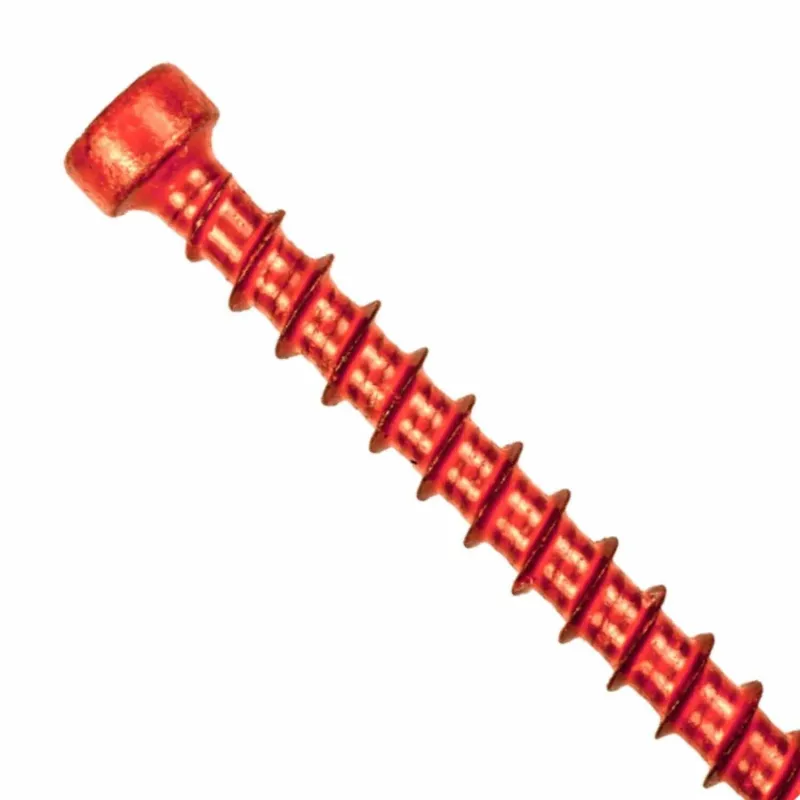

- Fully-threaded shank for secure connections
- Cap-style head countersinks fully into the double top plate
- Wide tolerance on installation angle
- Can be installed from inside the structure
- 6-lobe, T30 driver bit for positive engagement
- Metal installation guide tool included
- Orange coating for easy inspection
- Type-17 point for faster starts and easier driving
Simpson SDWC15600-KT Applications
- Roof-to-wall framing connections
- High-wind construction
- Truss/rafter-to-plate and stud-to-plate connections
Simpson SDWC15600-KT Installation Overview
- Verify dimensions and alignment of framing members.
- Position the screw using the metal installation guide tool.
- Drive the screw using the T30 driver bit.
- Ensure the screw is fully embedded and the head is flush with the surface.
Simpson SDWC15600-KT Specifications
| Diameter | 0.152 in. |
| Length | 6 in. |
| Material | Carbon Steel |
| Drive Type | T30 Star Drive |
| Point Type | Type 17 |
| Thread Length | 5-3/4 in. |
| Finish | Orange Zinc |
| Quantity | 50 |
NOTE: Ensure proper installation using the included metal guide tool for optimal performance.
