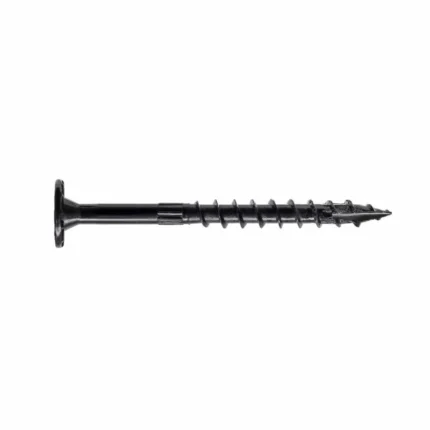

Simpson Strong-Tie SDW22338 Strong-Drive (.220 in. x 3-3/8″) T40 E-coat SDW EWP-PLY Screw, Low Profile Head (900 Pack)
Simpson Strong-Tie SDW22338 Description
The Strong-Drive SDW EWP-Ply Structural Wood Screw is designed for fastening multi-ply wood members, engineered lumber products, and solid sawn lumber. It features a low-profile head for minimal interference and optimized lengths for effective fastening.
Simpson Strong-Tie SDW22338 Includes
- (900) Strong-Drive SDW EWP-Ply Structural Wood Screw
Simpson Strong-Tie SDW22338 Features
- Large washer head with nibs for maximum bearing area
- 6-lobe, T40 drive for positive engagement
- Low-profile head for minimal interference
- Optimal screw lengths for maximum penetration
- Specific thread lengths to avoid jacking
- High shear values for wide spacing
- Bold thread design for superior holding power
- SawTooth point for fast starts and reduced torque
Simpson Strong-Tie SDW22338 Applications
- Fastening multi-ply wood members
- Engineered lumber products
- Solid sawn lumber
Simpson Strong-Tie SDW22338 Specifications
| Fastener Type | Hand-Drive Screw |
| Application | Fastening Wood-to-Wood |
| Coating/Material | E-Coat Electrocoating |
| Length | 3 3/8 in. |
| Head Diameter | 0.760 in. |
| Shank Diameter | 0.220 in. |
| Drive Type | T40 6-Lobe |
| Head Type | Low Profile Head |
| Thread Length | 1 1/2 in. |
| Point Type | SawTooth Point |
| Packaging Quantity | 900 |
