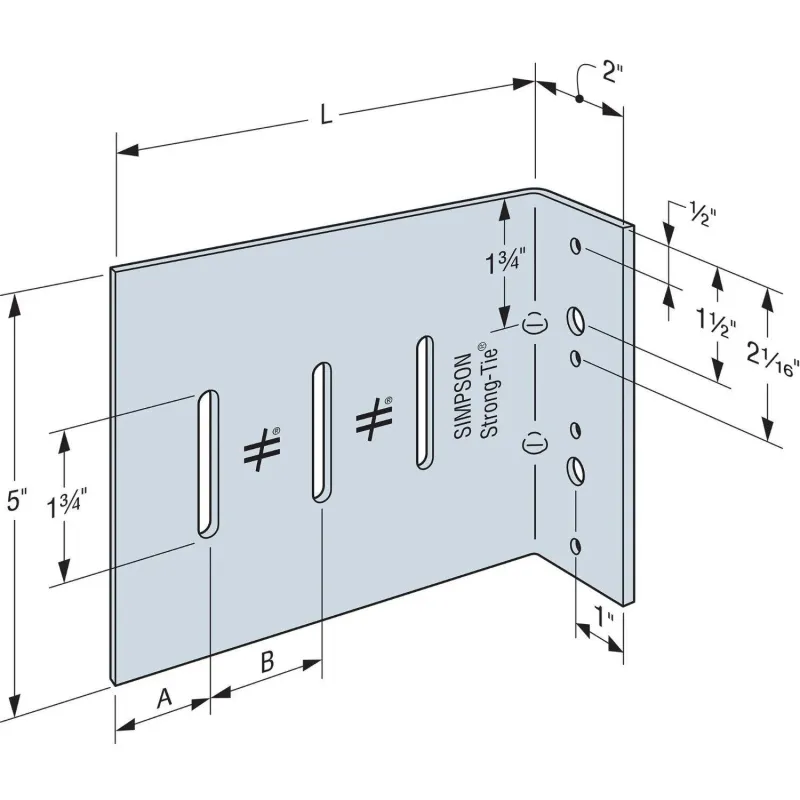

Simpson Strong-Tie SC62-5/118-KT25 (118 mil x 6″) 10ga Bypass Framing Slide-Clip Connector (25 Pack)
Simpson Strong-Tie SC62-5/118-KT25 Description
The SC62-5/118-KT25 Bypass Framing Slide-Clip Connector is designed for cold-formed steel construction, providing reliable performance in high-seismic areas. It includes precision-manufactured shouldered screws for proper functionality.
Simpson Strong-Tie SC62-5/118-KT25 Includes
- (25) connectors
- (83) XLSH78B1414 #14 shouldered screws
Simpson Strong-Tie SC62-5/118-KT25 Features
- Available in lengths suitable for 3 5/8″, 6″, and 8″ studs
- Maximum standoff distance of 1″ for 3 5/8″ studs and 1 1/2″ for 6″ and 8″ studs
- Provides 3/4″ of both upward and downward deflection
- Embossments in the bend line for increased strength and stiffness
- Prepunched anchor holes for various fasteners
- Includes precision-manufactured shouldered screws to prevent overdriving
Simpson Strong-Tie SC62-5/118-KT25 Applications
- Cold-formed steel construction
- High-seismic area framing
- Slide-clip bypass framing
Simpson Strong-Tie SC62-5/118-KT25 Installation Overview
- Use the specified type and number of anchors.
- Install the specified number of XLSH78B1414 #14 shouldered screws in the slots adjacent to the No-Equal stamps.
- Use one shouldered screw per slot (maximum).
Simpson Strong-Tie SC62-5/118-KT25 Specifications
| Material | Carbon Steel |
| Finish | Galvanized (G90) |
| Gauge | 10 |
| Thickness | 118 mil |
| Length | 6 in. |
| Weight | 37.3 lb |
