Simpson Strong-Tie RTA2Z (2x) 16 Gauge Rigid Tie Angle for 2x Joist/Post – ZMAX Finish
Simpson RTA2Z Description

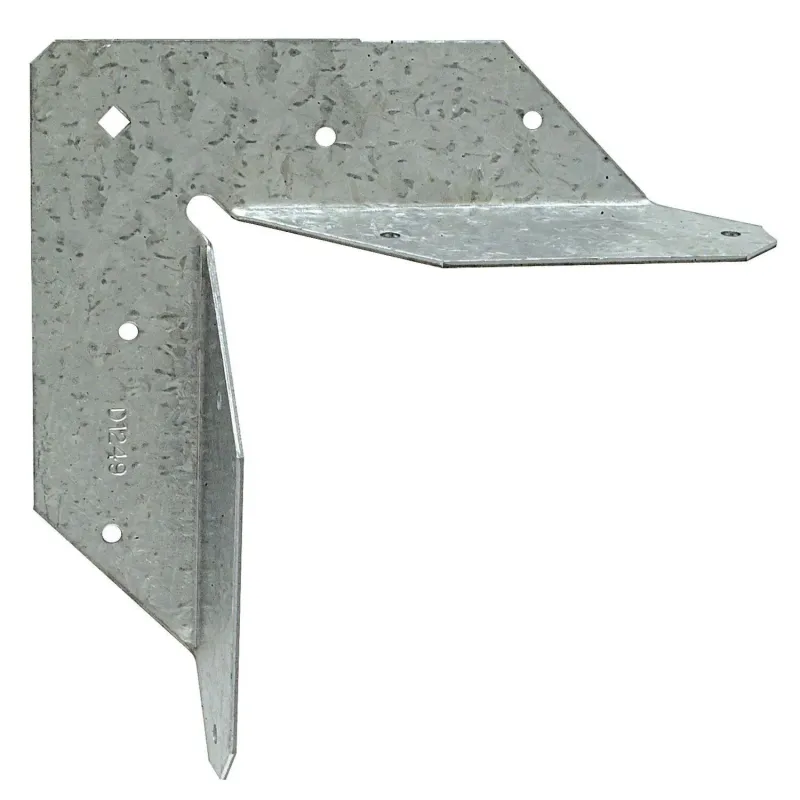

The Simpson RTA2Z Rigid Tie Angle is designed to connect two 2x wood members at a 90-degree angle, featuring a ZMAX galvanized finish for corrosion resistance.
Simpson RTA2Z Includes
- (1) Rigid Tie Angle for 2x Joist/Post
Simpson RTA2Z Features
- Connects two 2x wood members at a 90-degree angle
- ZMAX galvanized finish for corrosion resistance
- Compatible with specified nails or Strong-Drive SD connector screws
Simpson RTA2Z Applications

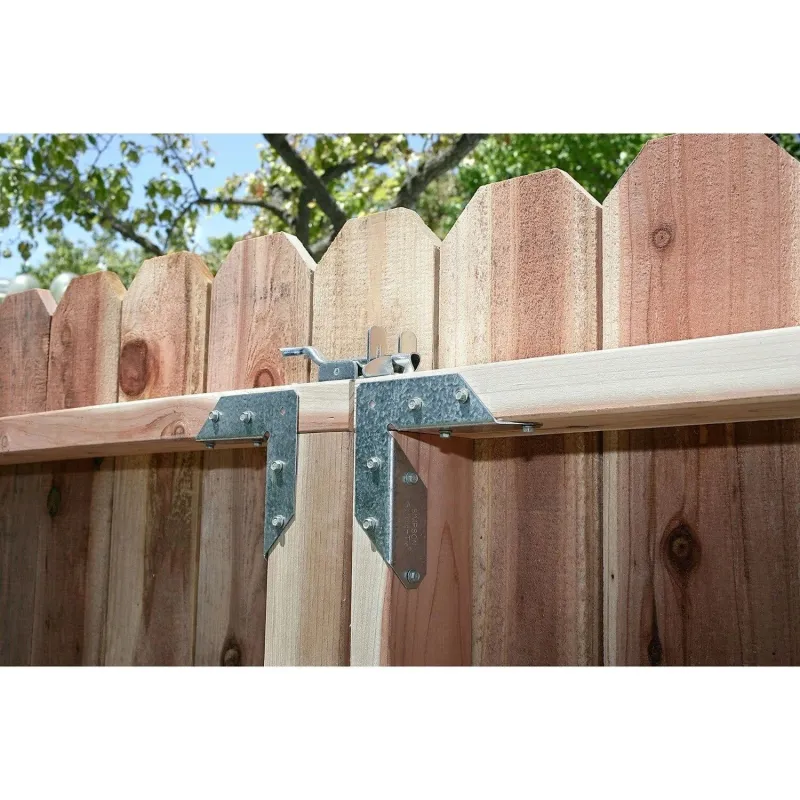

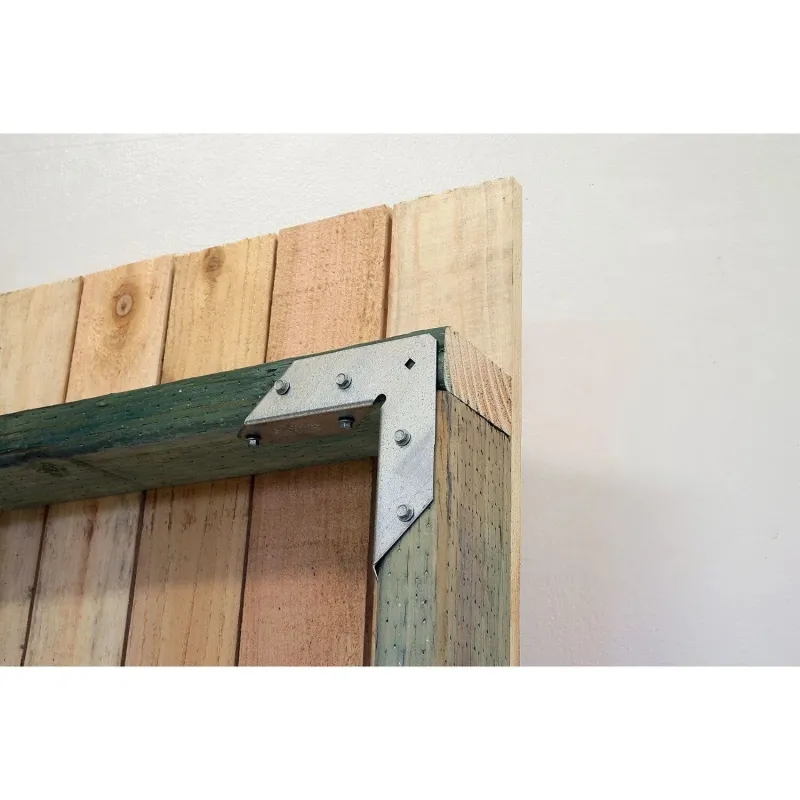

- Wood framing requiring 90-degree connections
- Construction projects involving 2x joists and posts
Simpson RTA2Z Installation Overview
- Use all specified fasteners
- Install vertical members first, then attach horizontal members for easier alignment
- Seat wood member in bracket with a C-clamp before securing to aid positioning and prevent skewing
- Follow manufacturer’s instructions when using power tools and building equipment
Simpson RTA2Z Specifications
| Weight | 0.3 lb |
| Finish | ZMAX Galvanized |
| For Treated Lumber | Yes |
| Joist size | 2X |
| Post size | 2X |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
