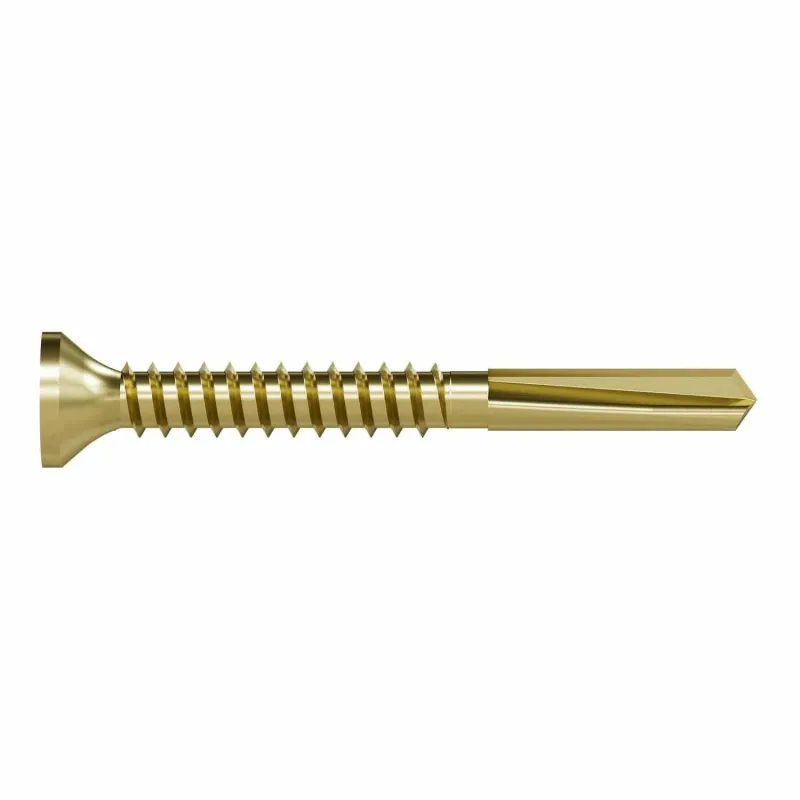

Simpson Strong-Tie PPHD3S1016 Strong-Drive (#10 x 3″) PPHD Sheathing-to-CFS Screw Collated – Yellow Zinc (1000 Pack)
Simpson Strong-Tie PPHD3S1016 Description
The Strong-Drive PPHD Sheathing-to-CFS screw is designed for efficient fastening of sheathing materials to cold-formed steel (CFS) with its long #5 drill point and collated design for Quik Drive systems.
Simpson Strong-Tie PPHD3S1016 Includes
- (1000) #10 x 3 in. Strong-Drive PPHD Sheathing-to-CFS Screw
Simpson Strong-Tie PPHD3S1016 Features
- Larger #5 pilot point with longer flute for efficient drilling
- 6-lobe recess for a secure drive
- Yellow zinc coating for corrosion resistance
- Compatible with Quik Drive PRO300SG2 auto-feed screw driving systems
- Designed for use in dry service, low-corrosion environments
Simpson Strong-Tie PPHD3S1016 Applications
- Sheathing to cold-formed steel (CFS)
- Drywall to CFS
- Subfloor to CFS
Simpson Strong-Tie PPHD3S1016 Installation Overview
- Ensure the screw is compatible with the Quik Drive system.
- Align the screw with the material to be fastened.
- Drive the screw using the Quik Drive system until fully seated.
Simpson Strong-Tie PPHD3S1016 Specifications
| Diameter | #10 |
| Length | 3 in. |
| Finish | Yellow Zinc |
| Drive Type | T25 Star Drive |
| Head Type | Flat Head |
| Thread Type | Fine Threads |
| Quantity | 1000 |
NOTE: Use only in dry, interior, and noncorrosive environments to avoid performance issues.
