Simpson Strong-Tie PF24Z (2×4) 8Ga Post-Frame Top-Flange Hanger – ZMAX Finish
Simpson Strong-Tie PF24Z Description
The ZMAX PF Post-Frame Top-Flange Hangers offer superior corrosion resistance, making them an excellent choice for outdoor and high-moisture environments.
Simpson Strong-Tie PF24Z Includes
- (1) 2×4 Post Frame Hanger ZMAX Finish
Simpson Strong-Tie PF24Z Features
- ZMAX Galvanized Coating: Provides enhanced corrosion resistance for use in exterior and treated-wood applications.
- Double-Shear Nailing Design: Distributes the load through two points on each joist, improving strength while reducing the number of nails required.
- Self-Jigging Design: Ensures automatic vertical alignment for a fast and accurate installation process.
- Diamond Holes: Allow for temporary fastening, making installation easier and more precise.
- Heavy-Duty Construction: Manufactured from 18-gauge steel for superior durability and load-bearing performance.
Simpson Strong-Tie PF24Z Applications
- Post-Frame Buildings: Ideal for barns, sheds, and garages where moisture resistance is critical.
- Agricultural Structures: Ensures strong and lasting support for framing used in farm and livestock facilities.
- Pole Barns: Provides a secure connection for framing members in open or enclosed pole barn designs.
- Commercial and Residential Framing: Suitable for outdoor framing applications that require added corrosion protection.

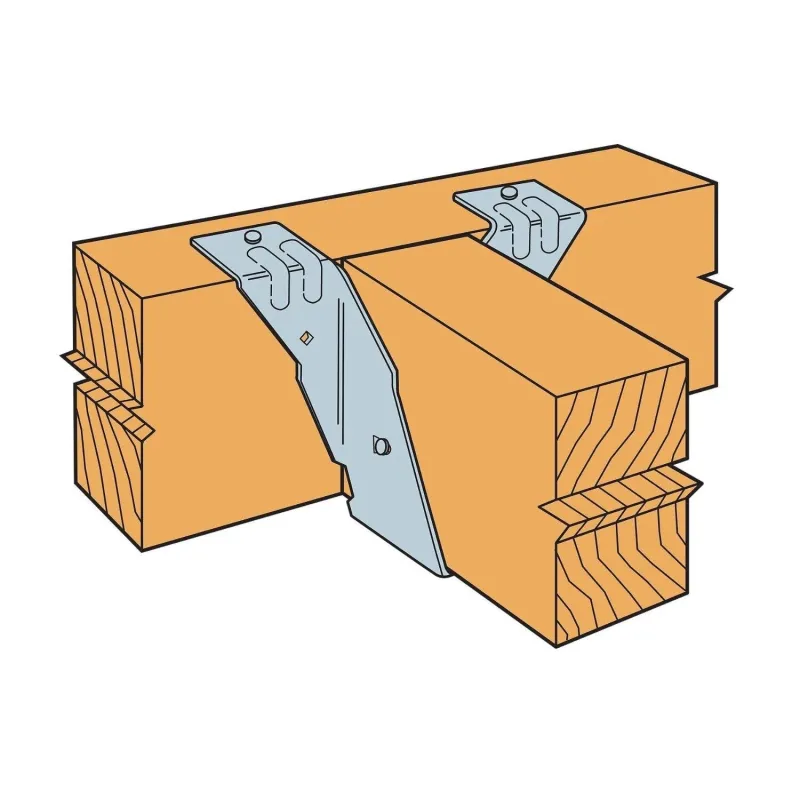

Simpson Strong-Tie PF24Z Installation Overview
- Fasteners: Compatible with nails or screws as recommended in installation guidelines.
- Top-Flange Attachment: Securely mounts to the supporting structure using the appropriate fasteners.
- Joist Connection: Provides a stable and secure hold for structural members.
Simpson Strong-Tie PF24Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | (4) 0.148 x 3 |
| For Treated Lumber | Yes |
| Height | 3-3/8″ |
| Joist size | 2″ X 4″ |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | 18 Gauge |
| Width | 1-9/16″ |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
