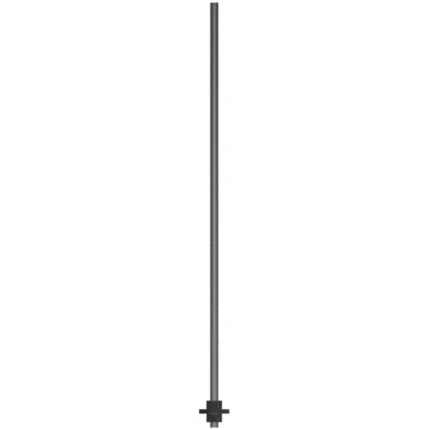

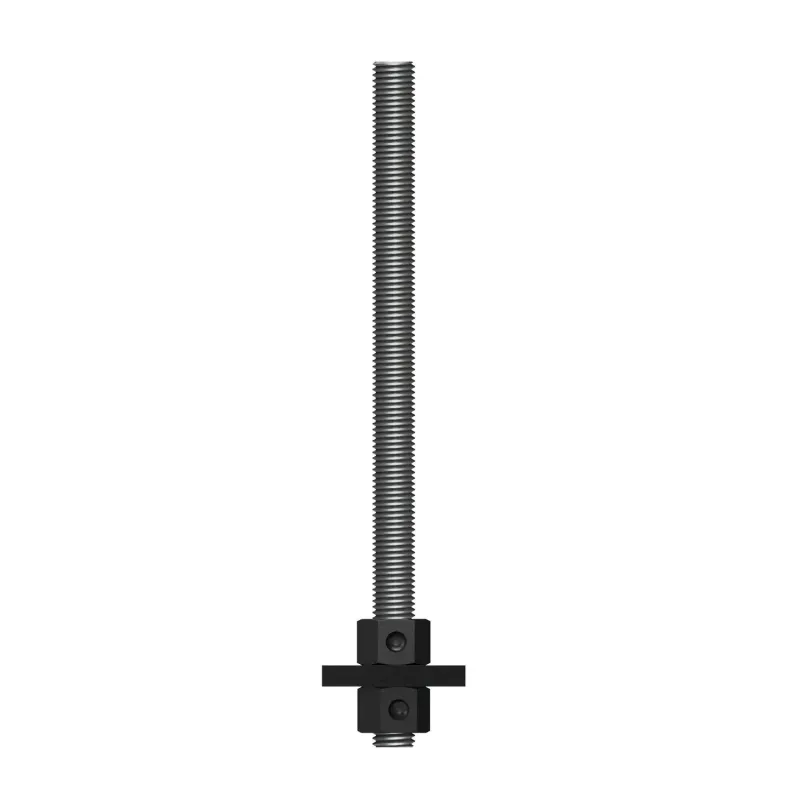

Simpson Strong-Tie PAB8-12 (1″ x 12″) Preassembled Anchor Bolt with Washer for High-Tension Concrete Applications
Simpson Strong-Tie PAB8-12 Description
The Simpson Strong-Tie PAB8-12 is a preassembled anchor bolt designed for high-tension concrete applications, offering durability and compliance with ASTM standards.
Simpson Strong-Tie PAB8-12 Includes
- (1) 1 in. x 12 in. Preassembled Anchor Bolt with Washer
Simpson Strong-Tie PAB8-12 Features
- Available in diameters from 1/2″ to 1 1/4″ and lengths from 12″ to 36″
- Available in standard and high-strength steel
- Head stamp contains the No Equal sign, diameter designation, and an “H” on high-strength rods
Simpson Strong-Tie PAB8-12 Applications
- Ideal for high-tension-load applications such as shearwalls and rod systems
- Suitable for multi-story high-wind constructions
Simpson Strong-Tie PAB8-12 Installation Overview
- Chase the threads on HDG PABs to use standard nuts or couplers
- Use overtapped products in accordance with ASTM A563
Simpson Strong-Tie PAB8-12 Specifications
| Material | ASTM F1554 Grade 36, A36 or A307 |
| Finish | None or HDG |
| Diameter | 1 in. |
| Length | 12 in. |
| Weight | 3.7 lb |
