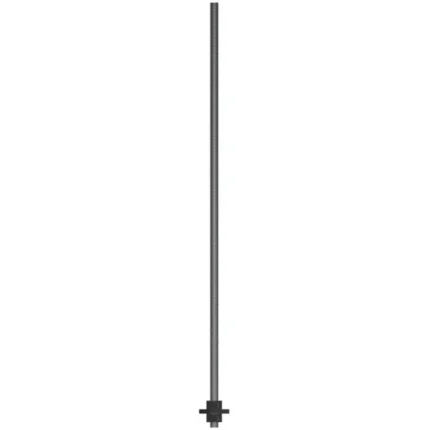

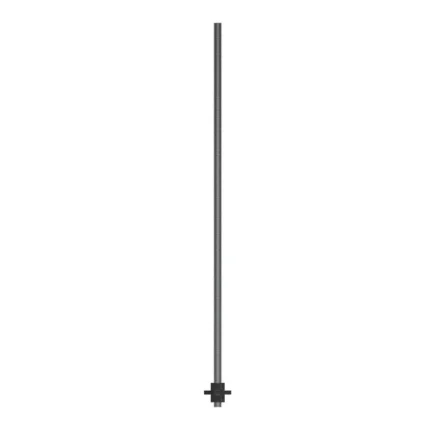

Simpson Strong-Tie PAB6H-24 (3/4″ x 24″) High-Strength Preassembled Anchor Bolt for Concrete Anchorage
Simpson Strong-Tie PAB6H-24 Description
The Simpson PAB anchor bolt is a cast-in-place anchor bolt designed for high-tension-load applications such as shearwalls and rod systems.
Simpson Strong-Tie PAB6H-24 Includes
- (1) 3/4″ x 24″ High-Strength Preassembled Anchor Bolt
Simpson Strong-Tie PAB6H-24 Features
- Available in diameters from 1/2″ to 1 1/4″ and lengths from 12″ to 36″ (in 6″ increments)
- Available in standard and high-strength steel
- Head stamp contains the No Equal sign, diameter designation and an “H” on high-strength rods
- Hot dip galvanized coating for enhanced corrosion resistance
- Pre-assembled with plate washer and fixed hex nuts
Simpson Strong-Tie PAB6H-24 Applications
- Shearwalls and rod systems requiring high-tension-load anchorage
- Concrete anchorage in multi-story high-wind constructions
Simpson Strong-Tie PAB6H-24 Installation Overview
- Chase the threads on HDG PABs to use standard nuts or couplers
- Use overtapped products in accordance with ASTM A563
- Special order couplers with both ends oversized if needed
Simpson Strong-Tie PAB6H-24 Specifications
| Diameter | 3/4″ |
| Length | 24″ |
| Material | Galvanized Steel |
| Finish | Hot Dip Galvanized |
| Weight | 3.4 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
