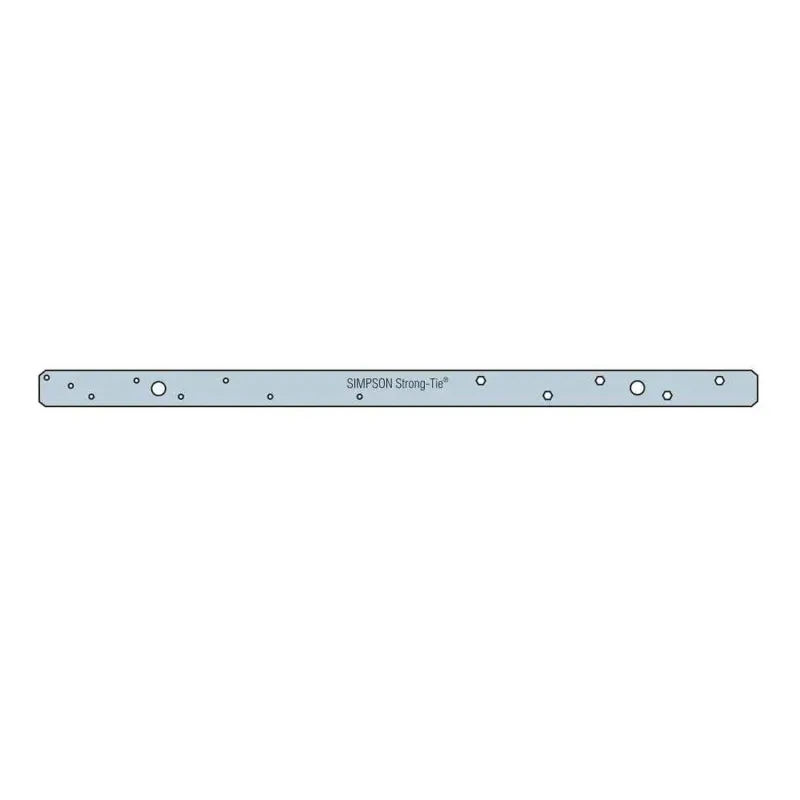

Simpson Strong-Tie MSTAM24Z Strong-Wall (24 in.) Medium Masonry Strap Tie for Wood-to-Masonry Applications
Simpson Strong-Tie MSTAM24Z Description
The MSTAM24Z Medium Masonry Strap Tie is designed for wood-to-masonry applications, featuring a ZMAX galvanized finish for corrosion resistance.
Simpson Strong-Tie MSTAM24Z Includes
- (1) Medium Masonry Strap Tie
Simpson Strong-Tie MSTAM24Z Features
- Load-rated, precut strap designed for quick installation and optimal performance
- Designed to resist wind and seismic forces
- Attaches wood framing to concrete or grout-filled concrete masonry units including floor-to-floor clear span application
Simpson Strong-Tie MSTAM24Z Applications
- Wood-to-masonry fastening for structural support
- Floor-to-floor clear span applications
- Resisting wind and seismic forces in construction
Simpson Strong-Tie MSTAM24Z Installation Overview
- Use all specified fasteners as per guidelines
- Attach to concrete or grout-filled concrete masonry units and wood framing
- Ensure minimum end and edge distance for Titen Turbo screws is 1 1/2 inches
Simpson Strong-Tie MSTAM24Z Specifications
| Material | 18 Gauge Steel |
| Finish | ZMAX Galvanized |
| Length | 24 in. |
| Width | 1 1/4 in. |
| Weight | 0.4 lb |
| Fasteners Required | Nails – (9) 0.148″ x 3″ Nails, CMU – (5) 1/4″ x 2-1/4″ Titen Screw, Concrete – (5) 1/4″ x 1-3/4″ Titen Screw |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
