Simpson Strong-Tie MSTA12SS (12″) 18-Gauge Stainless Steel Medium Strap Tie
Simpson Strong-Tie MSTA12SS Description
The Simpson Strong-Tie MSTA12SS is a 12-inch, 18-gauge stainless steel medium strap tie designed for structural reinforcement, offering maximum corrosion resistance.
Simpson Strong-Tie MSTA12SS Includes
- (1) 12″ 18-Gauge Stainless Steel Medium Strap Tie
Simpson Strong-Tie MSTA12SS Features
- Made from 316L stainless steel for maximum corrosion resistance
- Load-rated for structural reinforcement
- Designed for use in harsh exterior conditions
- Compatible with treated lumber
Simpson Strong-Tie MSTA12SS Applications

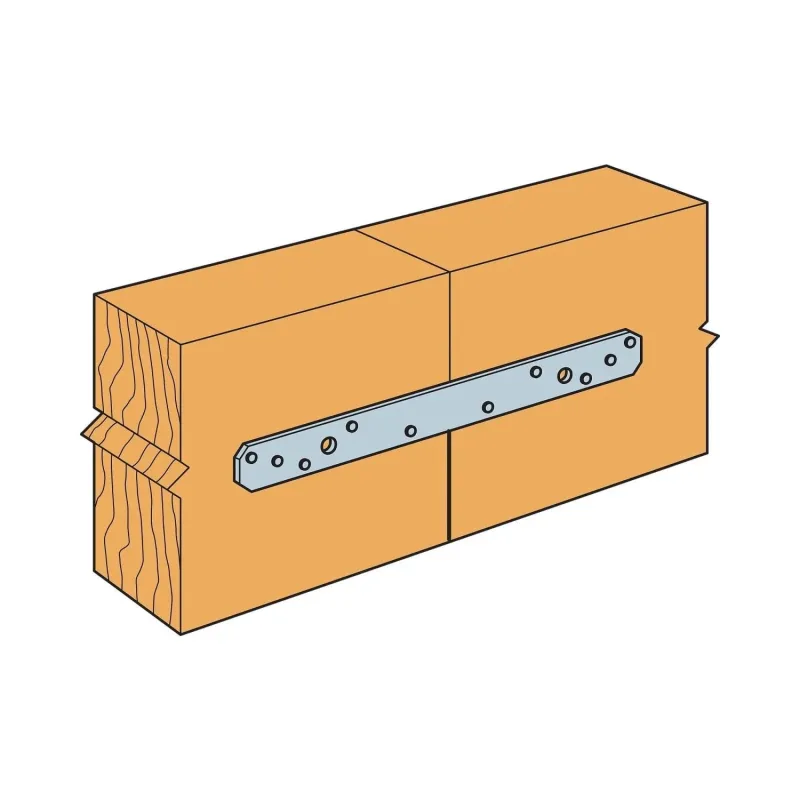

- Structural reinforcement in construction projects

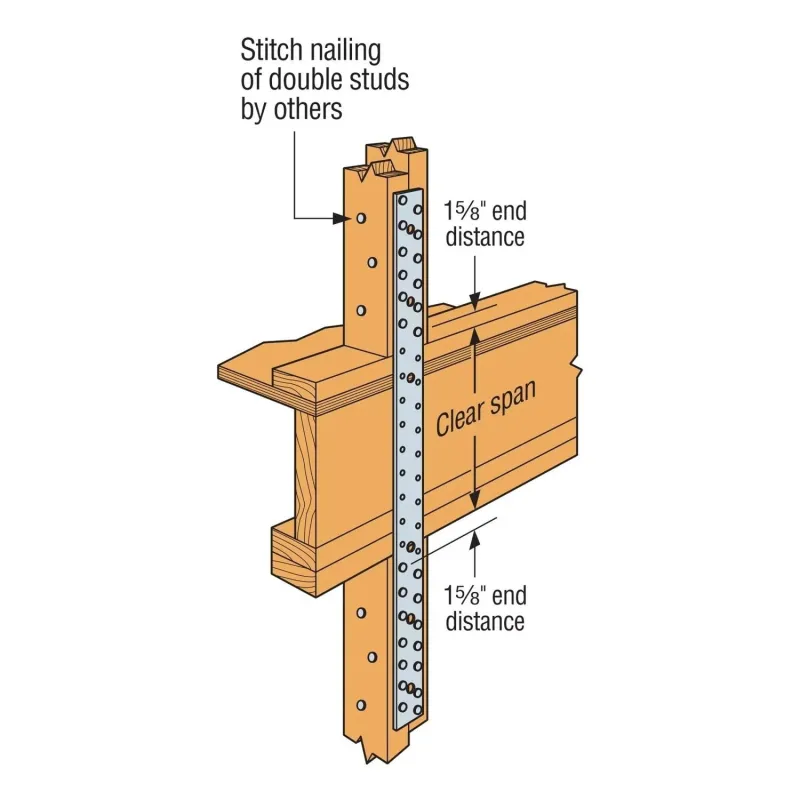

- Use at wall intersections and as ridge ties
- Ideal for areas with harsh environmental conditions
Simpson Strong-Tie MSTA12SS Installation Overview
- Use all specified fasteners for installation
- Ensure correct positioning of fasteners to achieve load values
Simpson Strong-Tie MSTA12SS Specifications
| Length | 12″ |
| Width | 1-1/4″ |
| Material | 316L Stainless Steel |
| Fasteners required | (10) 0.148″ x 2-1/2″ Nails |
| For Treated Lumber | Yes |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
