Simpson Strong-Tie MIU4.28/14 (4-1/8″ x 14″) Galvanized Face-Mount Joist Hanger for Engineered Wood
Simpson Strong-Tie MIU4.28/14 Description

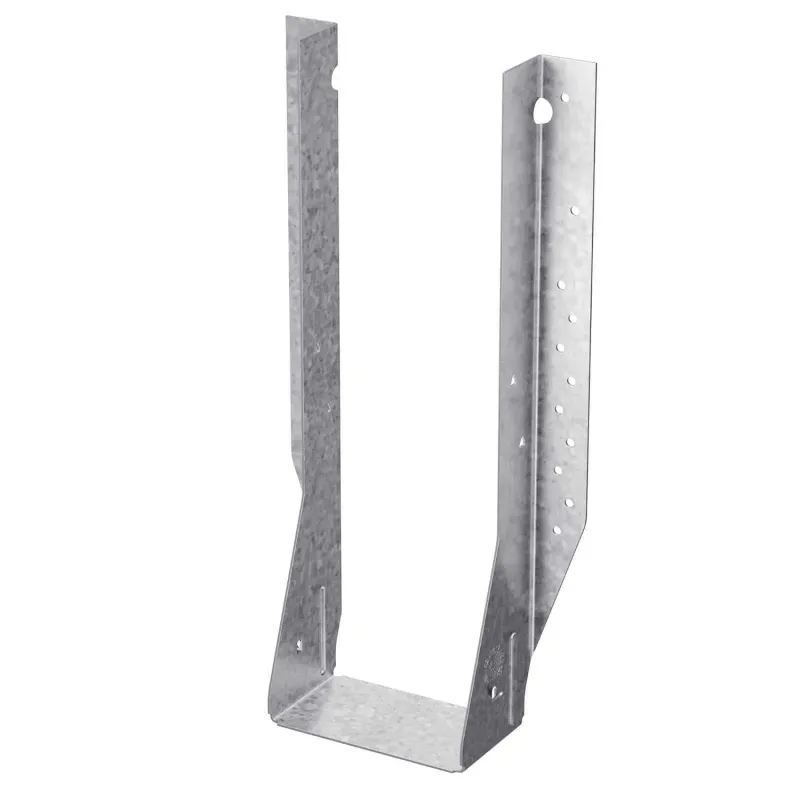

The Simpson MIU4.28/14 Face-Mount I-Joist Hanger is a durable connector designed for engineered wood joists, featuring a G90 galvanized finish and 14-gauge steel construction.
Simpson Strong-Tie MIU4.28/14 Includes
- (1) MIU4.28/14 Face-Mount I-Joist Hanger
Simpson Strong-Tie MIU4.28/14 Features
- G90 Galvanized Finish for corrosion resistance
- Full-Height Joist Support minimizes rotation
- Precision-Engineered 14-gauge steel construction
- Face-Mount Design for secure attachment
- Compatible with various engineered wood products
Simpson Strong-Tie MIU4.28/14 Applications

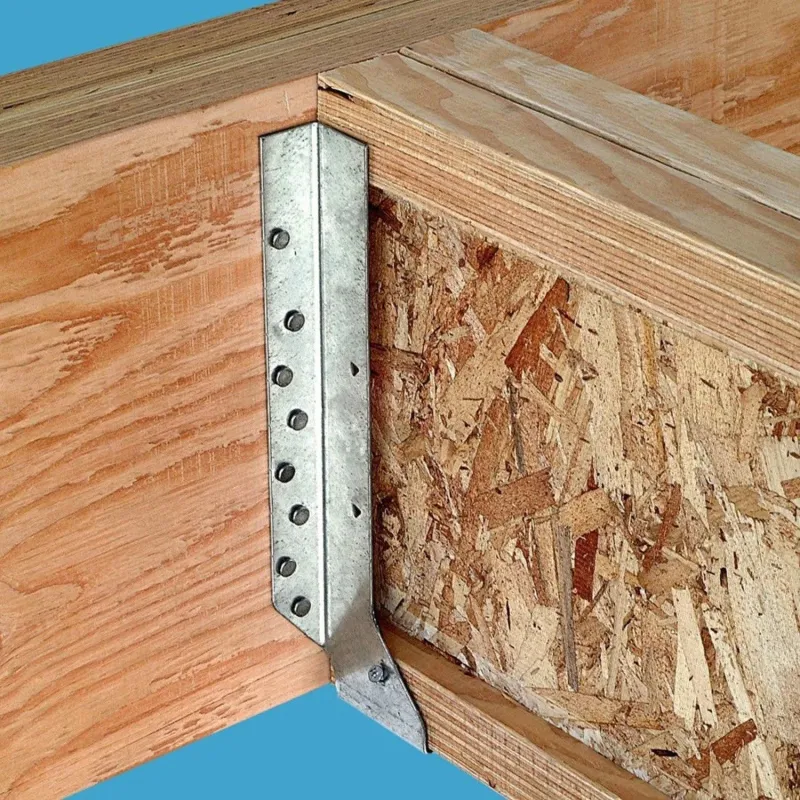

- Interior Floor Framing: Provides strong connections between joists and headers.
- Roof Framing: Enhances stability and uplift resistance.
- Deck Framing (Covered Applications): Suitable for protected outdoor structures.

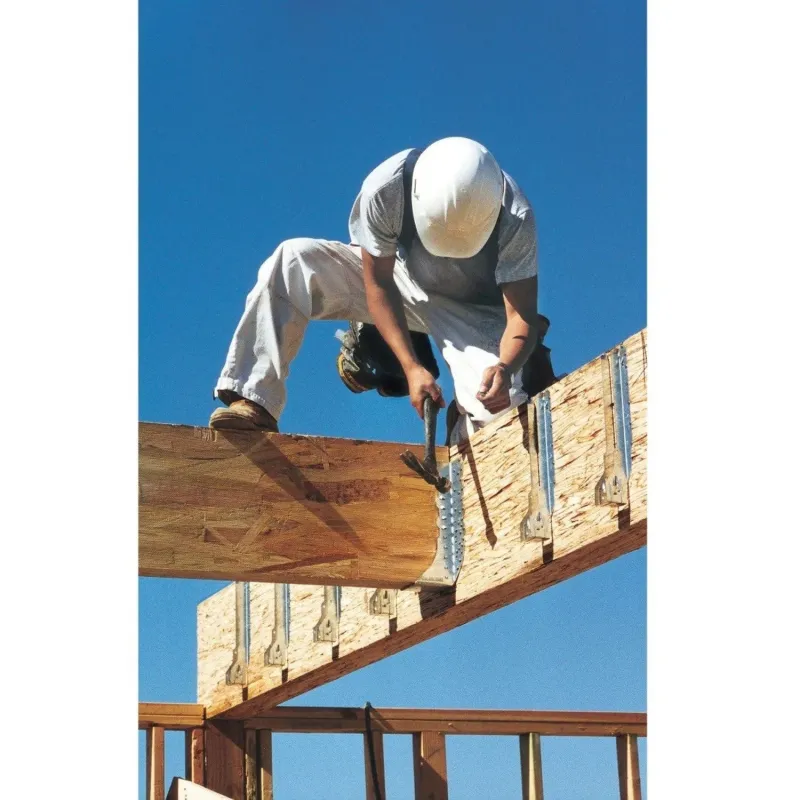

- General Wood Construction: Ideal for residential and commercial projects.
Simpson Strong-Tie MIU4.28/14 Installation Overview
- Use 10d common nails or Simpson SD screws for full load capacity.
- Secure hanger to header by filling all nail holes.
- Ensure proper alignment and attachment for maximum strength.

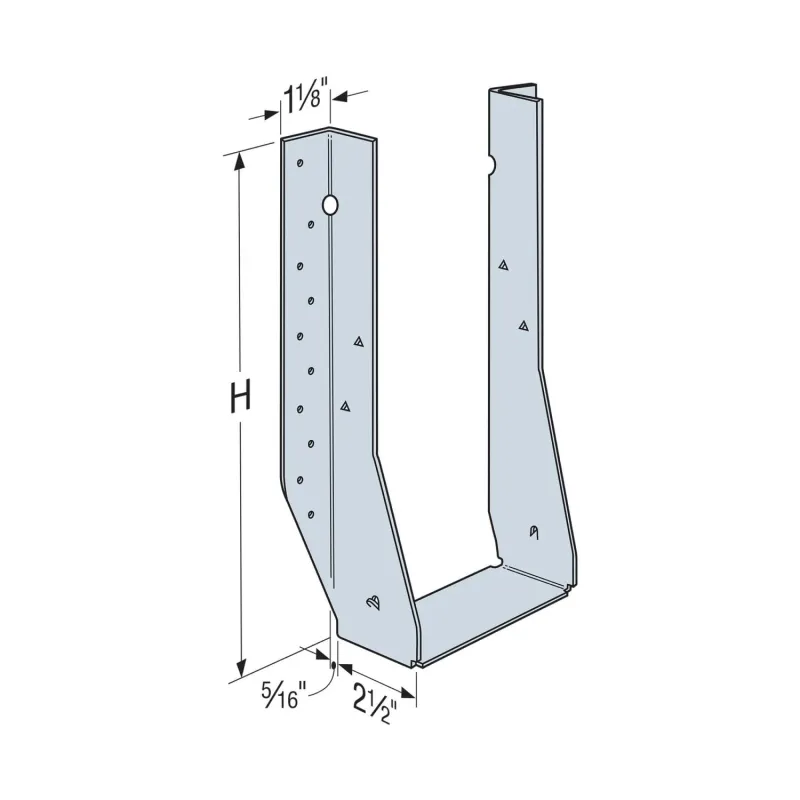

Simpson Strong-Tie MIU4.28/14 Specifications
| Finish | G90 Galvanized |
| Fasteners required | Face – (22) 0.162″ x 3-1/2″ Nails, Joist – (2) 0.148″ x 1-1/2″ Nails |
| For Treated Lumber | No |
| Height | 13-1/2″ |
| Joist size | 4-1/8″ X 14″ |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 4-9/32″ |
NOTE: Ensure all fasteners are installed correctly to achieve the specified load capacity.
