Simpson Strong-Tie MIU2.56/9 (2-1/2″ x 9-1/2″) Galvanized Face-Mount Joist Hanger for Engineered Wood
Simpson Strong-Tie MIU2.56/9 Description

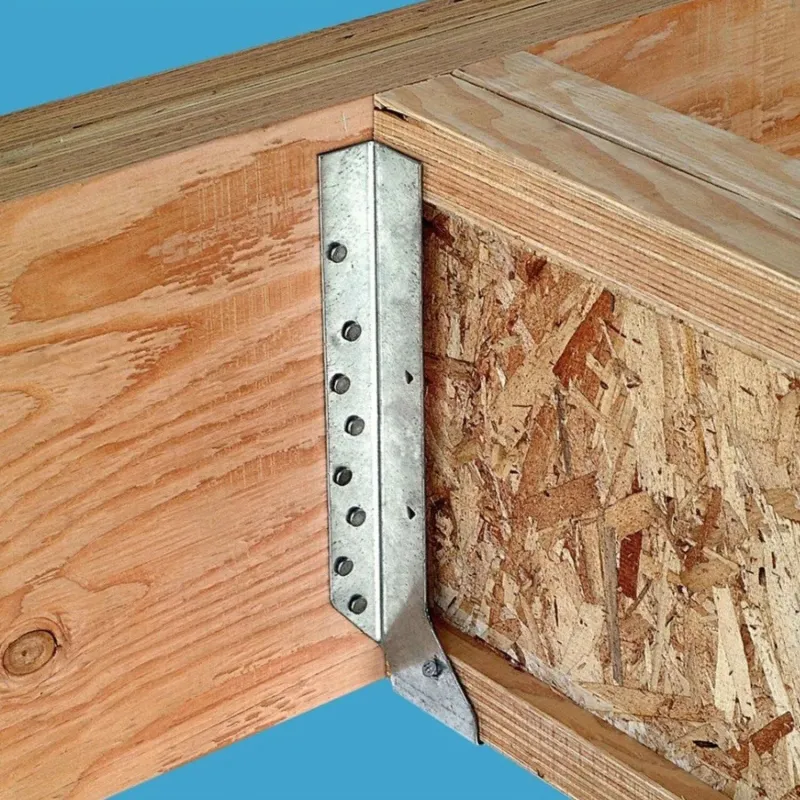

The Simpson Strong-Tie MIU Medium Face-Mount I-Joist Hanger is a durable, high-capacity connector designed for securing engineered wood joists in a variety of framing applications.
Simpson Strong-Tie MIU2.56/9 Includes
- (1) Face-Mount I-Joist Hanger
Simpson Strong-Tie MIU2.56/9 Features
- G90 Galvanized Finish: Provides standard corrosion protection for indoor and covered exterior applications.
- Full-Height Joist Support: Minimizes joist rotation and enhances load capacity for stronger connections.
- Precision-Engineered Construction: 14-gauge steel ensures durability and reliability under heavy loads.
- Face-Mount Design: Allows direct attachment to headers and beams for a secure connection.
- Versatile Compatibility: Works with a variety of engineered wood products, including LVL, LSL, and PSL.
Simpson Strong-Tie MIU2.56/9 Applications

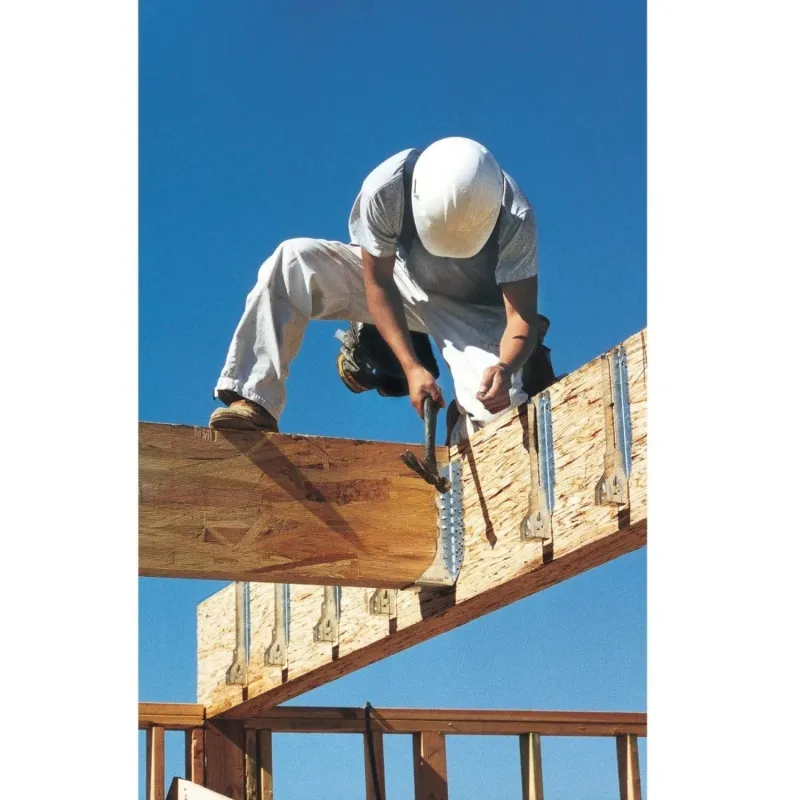

- Interior Floor Framing: Creates a strong, load-bearing connection between engineered wood joists and headers.
- Roof Framing: Provides superior uplift resistance, reinforcing the stability of engineered wood roof systems.
- Deck Framing (Covered Applications): Ideal for covered outdoor structures where G90 galvanized protection is sufficient.
- General Wood Construction: Used in residential and commercial projects requiring high-capacity engineered wood connections.
Simpson Strong-Tie MIU2.56/9 Installation Overview
- Fastener Requirements: Install using 10d common nails or Simpson Strong-Tie SD screws to achieve full load capacity.
- Face-Mount Installation: Secure the hanger to the header with all available nail holes filled for maximum strength.
Simpson Strong-Tie MIU2.56/9 Specifications
| Finish | G90 Galvanized |
| Fasteners required | Face – (16) 0.162″ x 3-1/2″ Nails Joist – (2) 0.148″ x 1-1/2″ Nails |
| For Treated Lumber | No |
| Height | 8-15/16″ |
| Joist size | 2-1/2″ X 9-1/2″ |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 2-9/16″ |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
